Taking off passenger head about 37 bolts so far

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Status
Not open for further replies.

squaredeal91

Full Access Member
Joined
Mar 10, 2023
Posts
2,487
Reaction score
4,472
Location
Cave junction Oregon
First Name
Greg bush
Truck Year
1991 SB
Truck Model
K30
Engine Size
5.9 Cummins 12 valve
Im assuming its an auto. Underneath Remove inspection cover if applicable. And remove the starter and torque converter bolts, should be 3. Helps to have someone hold crank but not impossible to do all yourself. And get in the habit of only turning the engine clockwise. After that remove engine mount bolts and bell housing. Also have a floor or transmission jack supporting transmission.


Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350

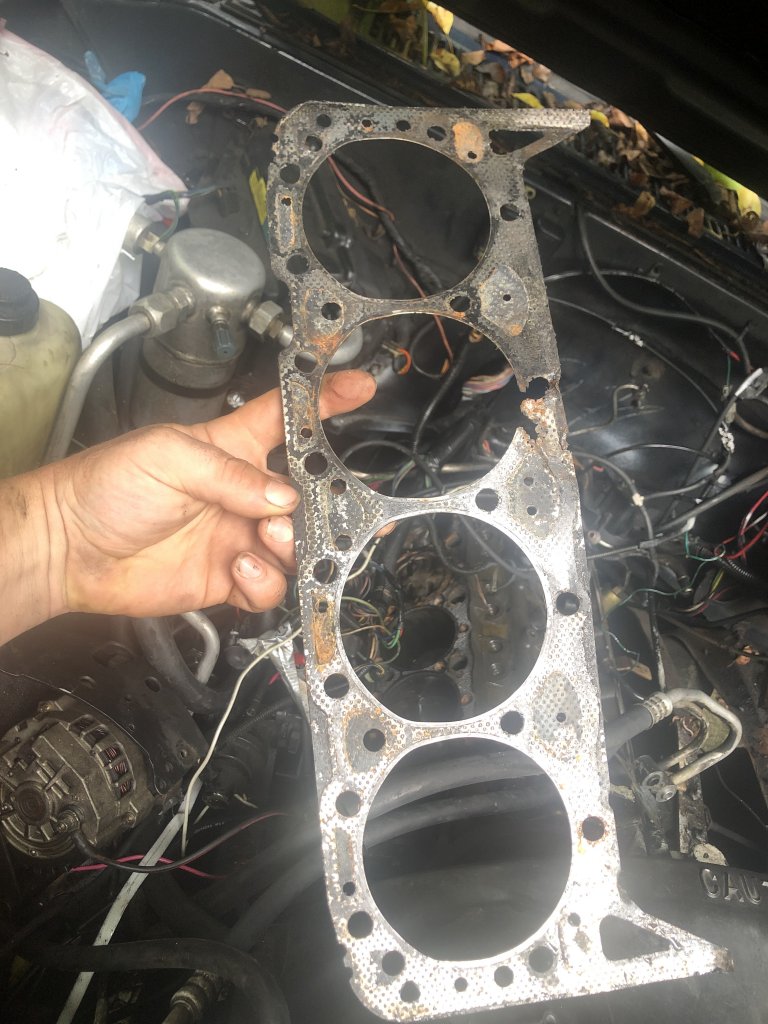

Gasket from no compression side


Attachments

  • image.jpg
    150.3 KB · Views: 70

Rickf

Full Access Member
Joined
Jul 29, 2017
Posts
567
Reaction score
708
Location
Grafton NH
First Name
Rick
Truck Year
1974, 1954 & a 1937
Truck Model
K20
Engine Size
350
In for a dime, in for a dollar. Looks like a blown head gasket. If it was mine, I'd pull the nose and get a Harbor Freight engine hoist for ease of removal.


Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350

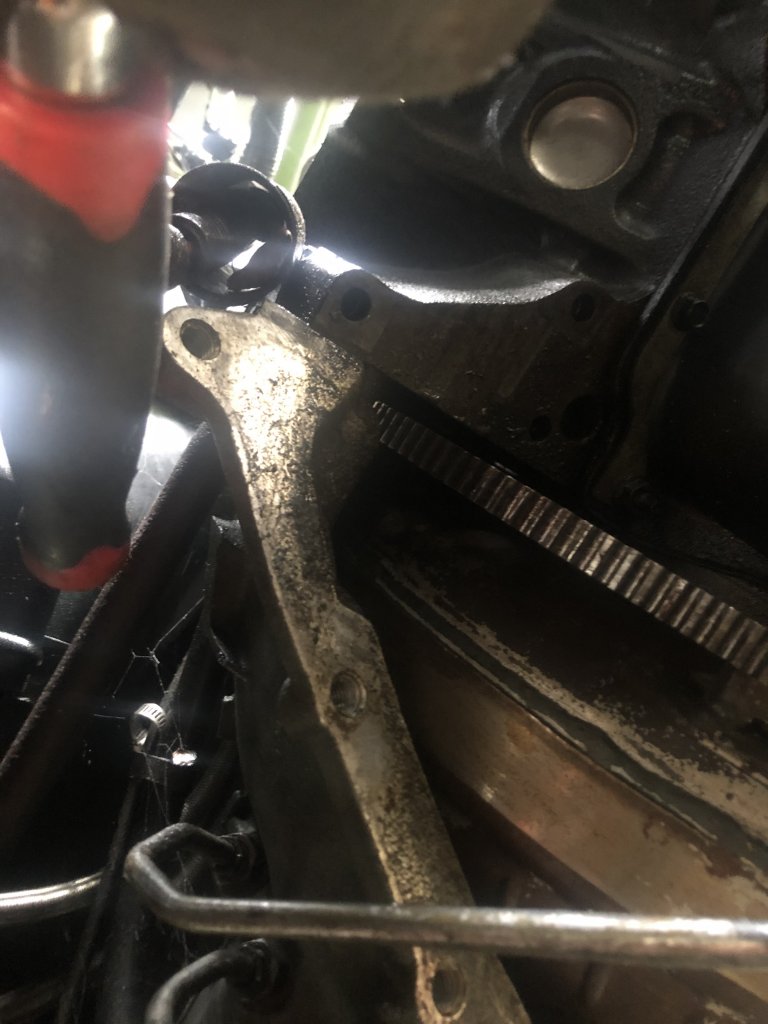

Mystery are there any other bolts here I must undue? I just see this one I’m pointing too a bar with my red black ratchet handle Is this just a stabalizer bracket bar connecting the block to trans? It’s a 9/16 bolt if I undue this bolt will it free the engine from trans?


Attachments

  • DC10E5BD-ED3E-4EA2-8585-3CB38846E931.jpeg
    93.4 KB · Views: 50

Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350
Mystery are there any other bolts here I must undue? I just see this one I’m pointing too a bar with my red black ratchet handle Is this just a stabalizer bracket bar connecting the block to trans? It’s a 9/16 bolt if I undue this bolt will it free the engine from trans?

Nevrmind got it out it I have a jack under trans


Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350

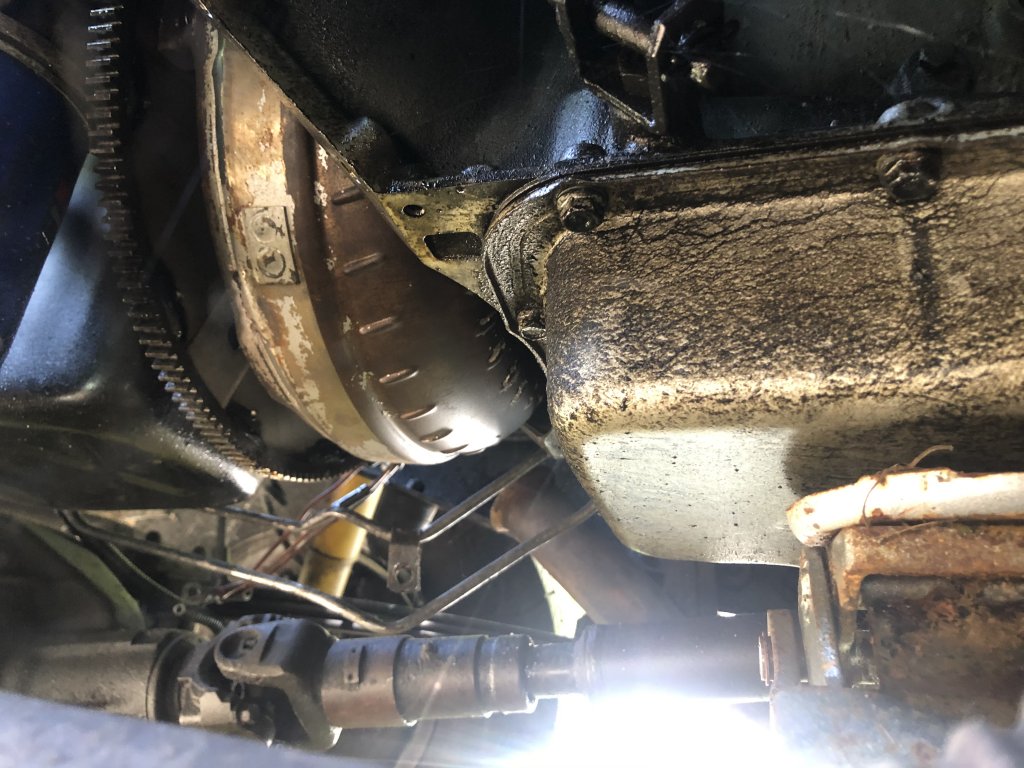

Do I need to undue anything here ?this is driver side underneath. Is the “thing” to the right of the flywheel called the torque converter? Won’t that part stay attached to the Tran wen I get the motor out?


Attachments

  • E1595EEB-ED0C-4F1C-B932-A4CDD3C2BDF7.jpeg
    157 KB · Views: 44

Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350

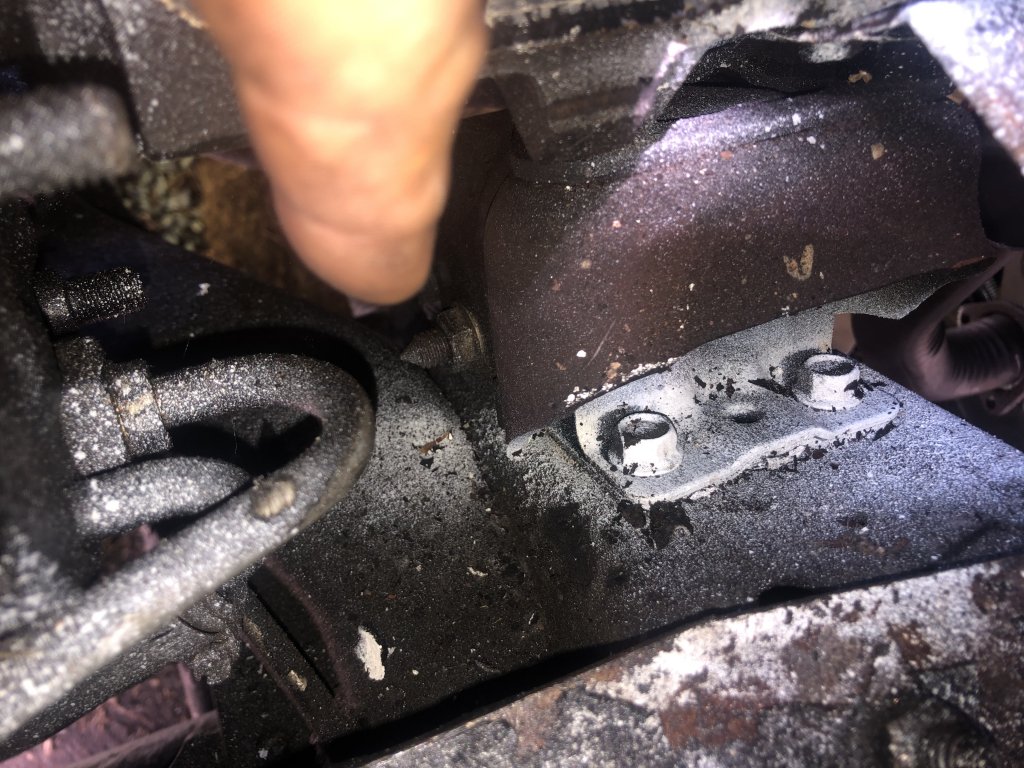

On this engine mount should I only remove that bolt I’m pointing too


Attachments

  • 105AFA1C-824F-4F49-8EBF-8B4A21FBA280.jpeg
    186.6 KB · Views: 39

Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350

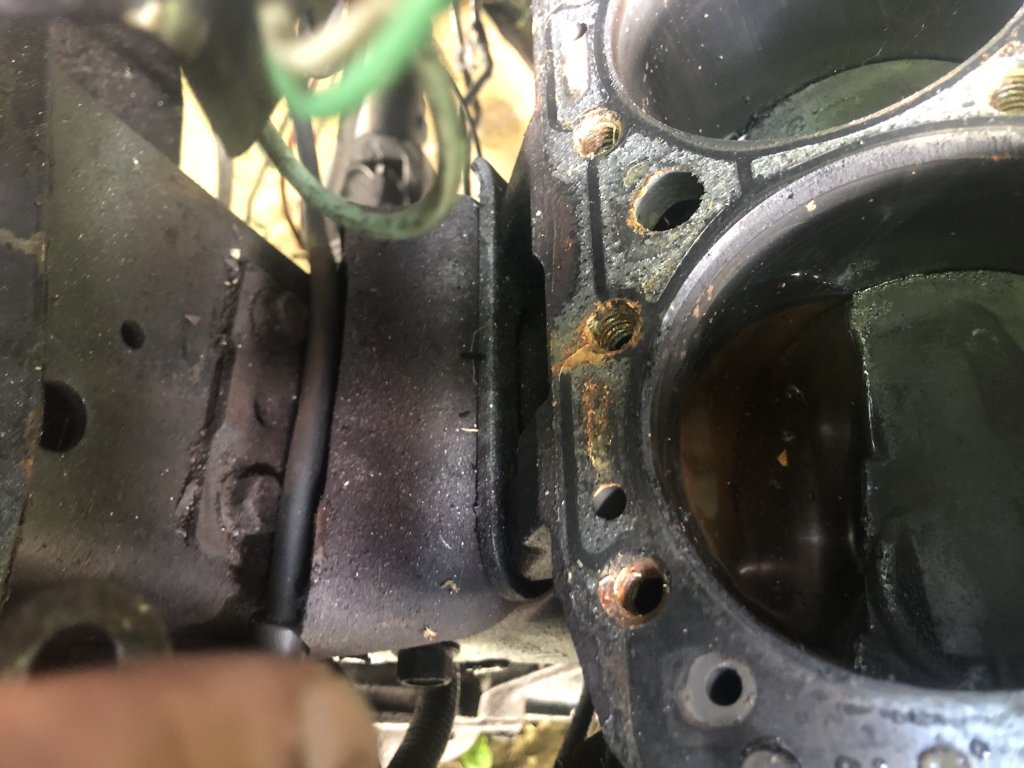

Should I only remove the single bolt in engine mount this is passenger side


Attachments

  • 1B14AC26-C357-4803-84ED-1B96A7959E3D.jpeg
    124.2 KB · Views: 44

squaredeal91

Full Access Member
Joined
Mar 10, 2023
Posts
2,487
Reaction score
4,472
Location
Cave junction Oregon
First Name
Greg bush
Truck Year
1991 SB
Truck Model
K30
Engine Size
5.9 Cummins 12 valve
Do I need to undue anything here ?this is driver side underneath. Is the “thing” to the right of the flywheel called the torque converter? Won’t that part stay attached to the Tran wen I get the motor out?
Remove the 3 torque converter bolts before pulling engine.


Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350
Remove the 3 torque converter bolts before pulling engine.

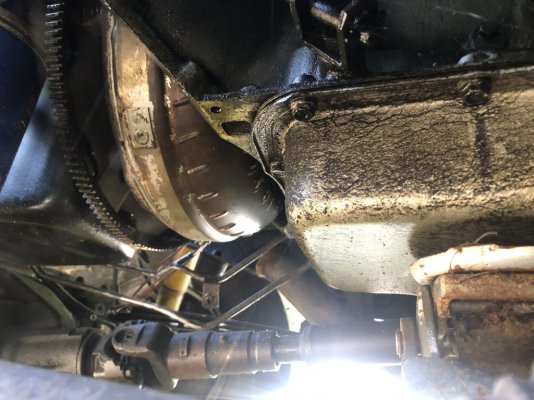

Thanks so the “thing “ between the tran and flywheel is a torque converter ok. Where are the three bolts?

Thanks


Attachments

  • 03C57838-5CBD-46B3-8B31-7200355329A6.jpeg
    157 KB · Views: 39

Radiohead

That guy on the Columbia
Joined
Mar 17, 2022
Posts
2,470
Reaction score
8,056
Location
Low Earth Orbit where it's safer
First Name
Eric
Truck Year
MCMLXXIX
Truck Model
C-20 Silverado Camper Special
Engine Size
454 crazy cubes, or 7.4 luscious litres
Thanks so the “thing “ between the tran and flywheel is a torque converter ok. Where are the three bolts?

Thanks
Backside of flex plate, towards engine is where the heads of those bolts are.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,333
Reaction score
8,485
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
BUY A BOOK!!! It will be more valuable to you than you know, and save you COUNTLESS hours and an unbelievable amount of frustration. Example post 71, you are asking about that big thing. You see I know how that big thing has to be seated, before I install the engine, you don't, the book will tell you that before you bend up a flex plate, or break a front pump. That is only 1 example.

Last edited:

Hugomartin

Banned
Joined
Jul 23, 2021
Posts
256
Reaction score
71
Location
Nc
First Name
Hugo
Truck Year
1987
Truck Model
V20 3/4 ton 5.7 350 suburban
Engine Size
350
Backside of flex plate, towards engine is where the heads of those bolts are.
Thank you it’s a 5/8 also how do I keep this fly torque thing from spinning when taking out this bolt
