Hi, been looking and haven’t found any receiver hitch pictures on the back of 1/2 tons with chrome bumpers, mines a Stepside shortbed.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,693
Reaction score
6,857
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Hi, been looking and haven’t found any receiver hitch pictures on the back of 1/2 tons with chrome bumpers, mines a Stepside shortbed.
stepside and short bed both probably dictate a more custom option


Finkaire

Finkaire
Joined
Dec 28, 2021
Posts
454
Reaction score
745
Location
California
First Name
Loren
Truck Year
1984
Truck Model
Silverado c10
Engine Size
305
Crazy, they put receivers on everything but…..
Cant even find a picture anywhere, how long were these trucks in production and nobody has a receiver. I have a line on a hidden one where the license plate folds down, again no pictures. Argh


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,346
Reaction score
28,027
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Crazy, they put receivers on everything but…..
Cant even find a picture anywhere, how long were these trucks in production and nobody has a receiver. I have a line on a hidden one where the license plate folds down, again no pictures. Argh

I believe that most people use a standard shortbed hitch that's designed for use with a step bumper. I've seen it many times and that's what was on my shortbed when I got it. The receiver tube just sticks out past the license plate by several inches.

When I installed the stepside bed and bumper, I removed the hitch because it was too "visible" and I thought it took away from the look of the truck. I later ended up building my own receiver hitch that's hidden behind the license plate.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,346
Reaction score
28,027
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
@Loren here's a few pictures from a while back. The first picture is the best one I could find of the standard hitch. I think it was Curt brand.

You must be registered for see images attach
You must be registered for see images attach
You must be registered for see images attach


With the hidden hitch, you have to be careful with your hitch selection. It has to be long enough to clear the flipped down plate, if using a drop hitch (not an issue with a little 2wd pickup. But you still don't want to use a stubby hitch, as it makes it too easy to clobber your bumper when backing up to the trailer.


Finkaire

Finkaire
Joined
Dec 28, 2021
Posts
454
Reaction score
745
Location
California
First Name
Loren
Truck Year
1984
Truck Model
Silverado c10
Engine Size
305
How do you insert the locking pin behind the license plate, just looking at the picture and I’m glad I did, looks impossible. From underneath, I get it.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,346
Reaction score
28,027
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
How do you insert the locking pin behind the license plate, just looking at the picture and I’m glad I did, looks impossible. From underneath, I get it.

Lol yeah, from underneath. But, it's actually not hard to do. You can see what you are doing through the top gap between the bed, as your hands work below the bumper. You don't have to lay down on the ground or anything.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,346
Reaction score
28,027
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
@bucket , Not yet anyway.....It's gonna get harder as you get OLDER!!!!!!! ^^^^^^^...you WILL find yourself on the ground......unintentionily ...ask me how I know....lol....wait, that's NOT funny...

Lol, unfortunately I've got some big issues with my knees at times. I've already been on the ground unintentionally a few times. Can't wait for it to get worse :rofl:


oldretiredafguy

Full Access Member
Joined
Apr 20, 2020
Posts
1,417
Reaction score
3,221
Location
N. Texas
First Name
Mike
Truck Year
1988, 1988, 1991, 1983
Truck Model
GMC V-Jimmy, GMC Suburban 4WD, GMC Suburban 4WD, GMC-2500 CrewCab
Engine Size
350, 350, 350, 350
@bucket , Not yet anyway.....It's gonna get harder as you get OLDER!!!!!!! ^^^^^^^...you WILL find yourself on the ground......unintentionily ...ask me how I know....lol....wait, that's NOT funny...
Amen from another older phart. Notice I didn't say old!


1lejohn

Full Access Member
Joined
May 14, 2012
Posts
324
Reaction score
746
Location
texas
First Name
john
Truck Year
1985 , 2004
Truck Model
k-1500, 2500 HD
Engine Size
350, 6.7
I bought a Draw Tite class 4 hitch from the yard for $ 20. It was mounted on a square body 2 WD frame. I'm not sure of the year truck. I had to make 2x2 square tubing spacer blocks for the hitch to clear the bumper on my K-10. It bolted on with Three 1/2" bolts per side. Two out of the 3 bolt holes lined up with holes in the frame. I had to drill the other holes. I think the rear bumper is an after market or dealer installed one. It's a step bumper and seems to be heavy duty. It drops down low on the frame. I had to remove 2 small diagonal braces for the hitch to clear and holes to line up.


Finkaire

Finkaire
Joined
Dec 28, 2021
Posts
454
Reaction score
745
Location
California
First Name
Loren
Truck Year
1984
Truck Model
Silverado c10
Engine Size
305

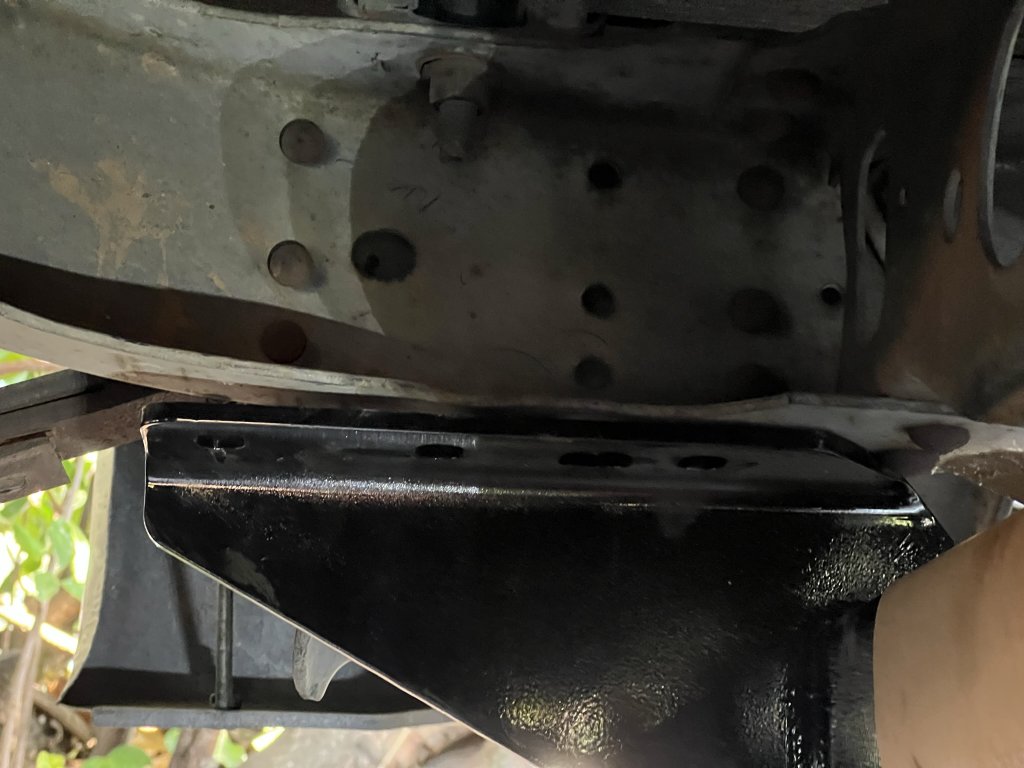

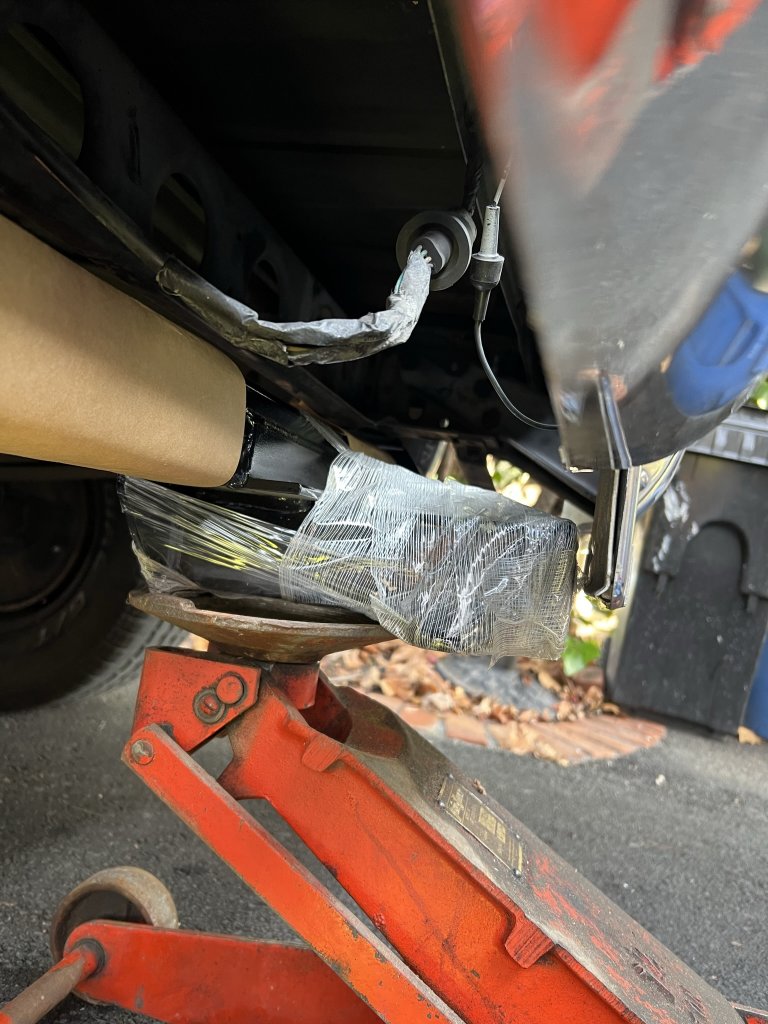

Alright, bought a Curt hitch #13028, supposed to fit not. Reciever ends up half way behind the license plate, alright, flip up plate holders available. Mount doesn’t fit flush with the frame. These trucks were made for 14 years? Nobody makes a bolt on receiver for a short bed Stepside, I’m confused.
