What have you done to your square lately??

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

bluex

Full Access Member
Joined
May 9, 2013
Posts
1,987
Reaction score
2,637
Location
Spartanburg SC
First Name
Paul
Truck Year
1978
Truck Model
C15
Engine Size
350
Damn, that sucks the big one, hope the wife is ok..

Agreed - and good luck getting the square up and rolling.

Thanks guys, she fractured her collar bone and broke her 2nd rib on the left side. Banged up her left knee and ankle to. She was pretty sore for a few days but seems to be better now.

Hope she's OK. You might ask if you can buy the vehicle from the insurance company and then u'd have a donor vehicle for the square. You have that option, most don't know though. Depending on the mileage of course. Who knows higher mileage.....super cheap.

Just a thought.

I possibly will buy it back so I can part it for money towards the replacement. I am just now putting my resealed/painted up 350 back in the 78 and I honestly cant afford the other parts needed to swap it. I will pass it on to someone who will hopefully do something cool with it if the buyback price isnt to high. I has 203753 on it, and it ran great other than some pistion slap on a cold start which isnt abnormal for these engines.

Oh and the insurance looked at it yesterday. Almost $5200 in damage, she's done. :( :( :(


Old77

Administrator
Staff member
Admin
Joined
Aug 19, 2010
Posts
28,491
Reaction score
9,558
Location
Kansas City, Mo
First Name
Jacob
Truck Year
1977/1990/1991
Truck Model
C10 longbed/R1500 Burb/R3500 Dually
Engine Size
350/350/454
That sucks, Paul. Sorry to hear :(


foamypirate

Full Access Member
Joined
Jul 30, 2010
Posts
3,302
Reaction score
457
Location
Central TX
First Name
Jake (Mr. Wilson)
Truck Year
1980
Truck Model
El Camino, baby!
Engine Size
5.3L/4L60E
Finally got some custom A/C hoses made up and wired up the A/C system for my LS swap. Now I just need to flush the evaporator and high pressure liquid line, install the hoses, install the orifice tube, hook up the climate control vacuum line, install a new blower motor, pull a vacuum, and charge that biatch.

Lol..."just" have to do list is a little longer than I thought. :D


CRM

Full Access Member
Joined
Jun 6, 2016
Posts
1,188
Reaction score
2,775
Location
Pasco, Washington
First Name
Casey
Truck Year
1985
Truck Model
K2500
Engine Size
350 CI

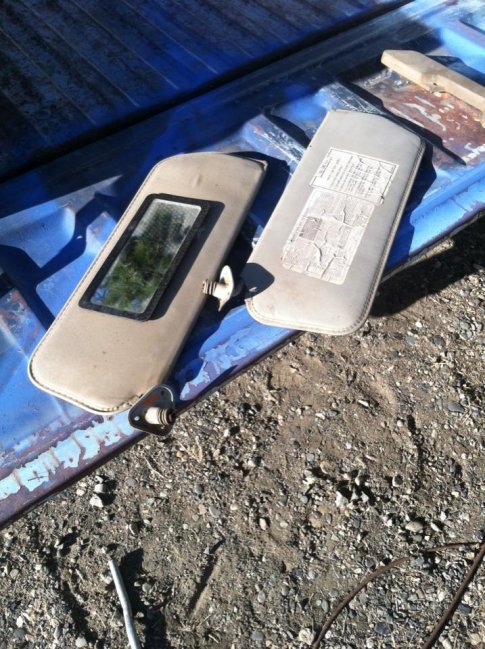

Picked up a few items at "you pull it". Apply a little vinyl paint and it's good to go.


Attachments

  • 13770445_10207868881094038_6387996013684831494_n.jpg
    102.3 KB · Views: 114

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,341
Reaction score
3,393
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Finally got some custom A/C hoses made up and wired up the A/C system for my LS swap. Now I just need to flush the evaporator and high pressure liquid line, install the hoses, install the orifice tube, hook up the climate control vacuum line, install a new blower motor, pull a vacuum, and charge that biatch.

Lol..."just" have to do list is a little longer than I thought. :D

Haven't look at the geometry or the hoses. When I go to do the LS swap, is it bolt on compatible? My compressor is low passenger side if i remember correctly. I don't have AC on the 350 I have currently so doing it when the LS swap is done is at the bottom of the list.


r67northern

Full Access Member
Joined
Aug 29, 2013
Posts
175
Reaction score
7
Location
Louisiana
First Name
Leland
Truck Year
1988
Truck Model
Suburban r20
Engine Size
454
Finished getting this back together and upgraded. I added a heater core bypass for the hot Louisiana weather, and then a Summit air filter.

You must be registered for see images attach
R20 upgrades by Lineswest, on Flickr

You must be registered for see images attach
R20 upgrades by Lineswest, on Flickr

I wasn't sure what to do with the smog pump, I felt bad about just letting it draw air directly from the engine compartment but the new air filter had no place to attach the original line ... So a universal 1in OD filter from Amazon is doing the trick.

You must be registered for see images attach
R20 upgrades by Lineswest, on Flickr

Getting rid of the air pump line really cleaned up the engine compartment too. I wasn't quite ready to pull it yet.

Last edited:

foamypirate

Full Access Member
Joined
Jul 30, 2010
Posts
3,302
Reaction score
457
Location
Central TX
First Name
Jake (Mr. Wilson)
Truck Year
1980
Truck Model
El Camino, baby!
Engine Size
5.3L/4L60E
Haven't look at the geometry or the hoses. When I go to do the LS swap, is it bolt on compatible? My compressor is low passenger side if i remember correctly. I don't have AC on the 350 I have currently so doing it when the LS swap is done is at the bottom of the list.

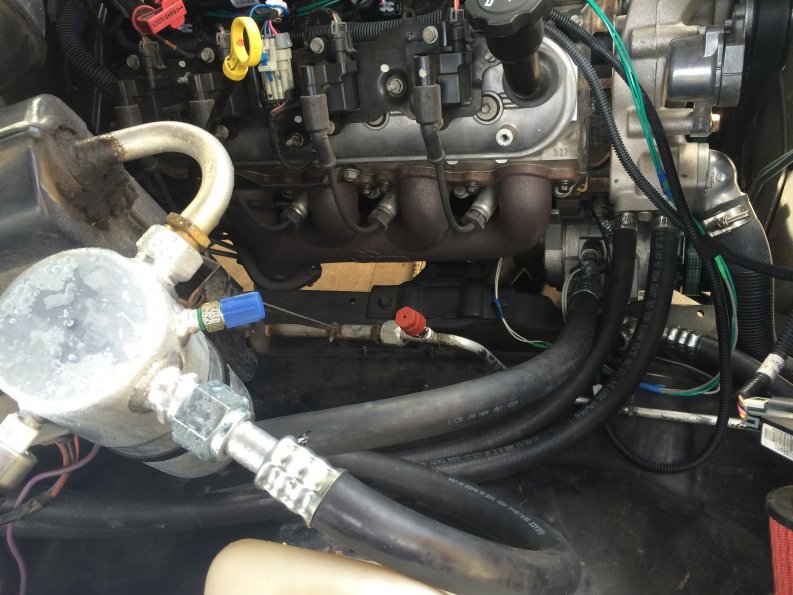

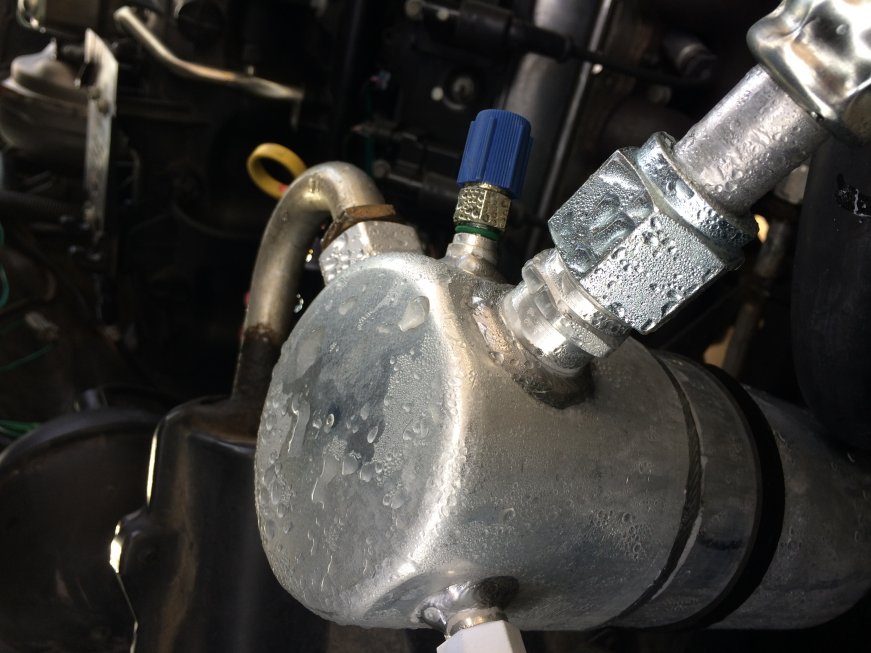

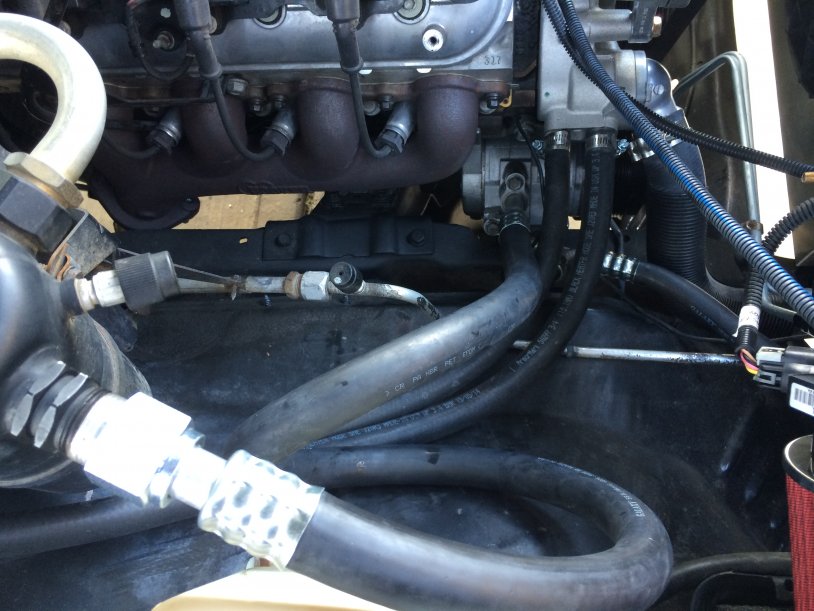

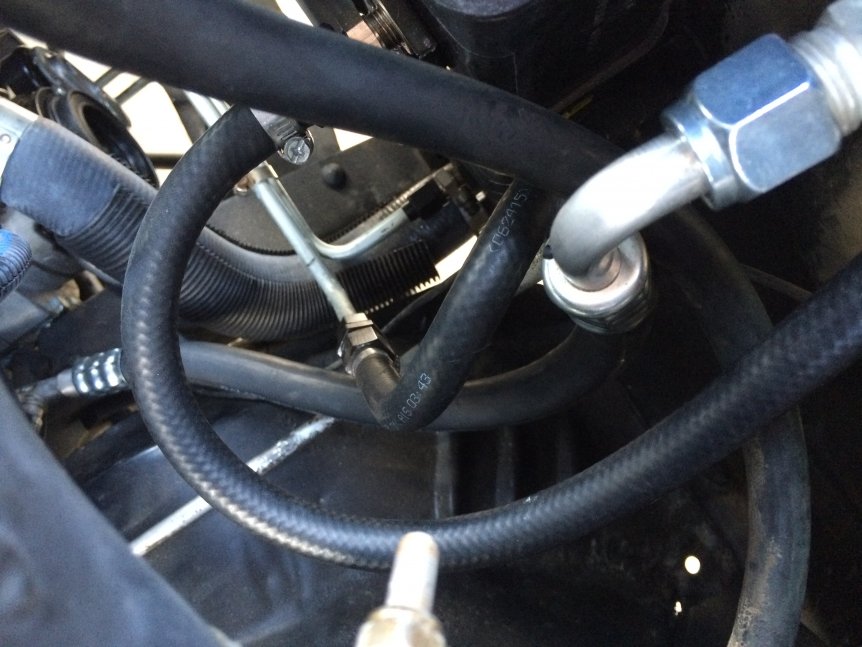

I used a factory low mount compressor (Denso 10S17F) with the Tejas Steelworks mounts. You might be able to position the engine with some Dirty Dingo sliders to where you can use the factory low mount compressor, but I'm not 100% sure on that. I did have to notch the frame to clear the A/C hoses from the compressor.

I used the factory compressor hoses. I took them to a shop and had them weld on new barb fittings and crimp new hose and hose ends to mate up to the Squarebody A/C stuff. I bought an ACDelco replacement parallel flow condenser for a 91' Blazer (PN 156960). This required some minor tweaking to mount, but wasn't difficult at all.

Wiring will depend on your harness. I have a blue/green PCM that takes a serial request, so none of the A/C clutch engagement is handled by the PCM, since I have no way to send an A/C on serial request to it. What the PCM will do, however, is read a pressure transducer in the high side line from the compressor, and control the fans based on the pressure. I used a BP Automotive harness, and they had the wiring for the pressure transducer built into the harness. Since the PCM doesn't control the clutch, you need to make sure you run a high pressure cut switch to shut off the compressor in event of high pressure (blocked condenser, failed fan, etc). The new Denso 10S17F I bought came with one. It will cut power to my A/C clutch relay when the system hits 455 psi on the high side.

I filled the system with 8 oz of PAG 46, and the shop that charged it put 2 lbs of R134a in it (best vent temps at this charge). At 2 lbs, it cools nicely and the accumulator is sweating, indicating a complete charge. This is only a baseline, every setup will differ somewhat, depending on hoses, condenser size, etc.


attachment.php


attachment.php


attachment.php


attachment.php


Attachments

  • IMG_3247.jpg
    93 KB · Views: 451
  • IMG_3248.jpg
    92.6 KB · Views: 422
  • IMG_3251.jpg
    94.8 KB · Views: 465
  • IMG_3250.jpg
    92 KB · Views: 445

r67northern

Full Access Member
Joined
Aug 29, 2013
Posts
175
Reaction score
7
Location
Louisiana
First Name
Leland
Truck Year
1988
Truck Model
Suburban r20
Engine Size
454
I used a factory low mount compressor (Denso 10S17F) with the Tejas Steelworks mounts. You might be able to position the engine with some Dirty Dingo sliders to where you can use the factory low mount compressor, but I'm not 100% sure on that. I did have to notch the frame to clear the A/C hoses from the compressor.

I used the factory compressor hoses. I took them to a shop and had them weld on new barb fittings and crimp new hose and hose ends to mate up to the Squarebody A/C stuff. I bought an ACDelco replacement parallel flow condenser for a 91' Blazer (PN 156960). This required some minor tweaking to mount, but wasn't difficult at all.

Wiring will depend on your harness. I have a blue/green PCM that takes a serial request, so none of the A/C clutch engagement is handled by the PCM, since I have no way to send an A/C on serial request to it. What the PCM will do, however, is read a pressure transducer in the high side line from the compressor, and control the fans based on the pressure. I used a BP Automotive harness, and they had the wiring for the pressure transducer built into the harness. Since the PCM doesn't control the clutch, you need to make sure you run a high pressure cut switch to shut off the compressor in event of high pressure (blocked condenser, failed fan, etc). The new Denso 10S17F I bought came with one. It will cut power to my A/C clutch relay when the system hits 455 psi on the high side.

I filled the system with 8 oz of PAG 46, and the shop that charged it put 2 lbs of R134a in it (best vent temps at this charge). At 2 lbs, it cools nicely and the accumulator is sweating, indicating a complete charge. This is only a baseline, every setup will differ somewhat, depending on hoses, condenser size, etc.

Looks like it's doing really well, nice setup.


Burban

Bear
Joined
Sep 28, 2015
Posts
88
Reaction score
8
Location
Uranus
First Name
H
Truck Year
83
Truck Model
Suburban
Engine Size
350
Cleaned all the turds, seat stuffing and other mouse nesting out the interior. Cleaned the possum nesting, made mainly of corn shucks (thanks Midwest) out the engine bay.


bluex

Full Access Member
Joined
May 9, 2013
Posts
1,987
Reaction score
2,637
Location
Spartanburg SC
First Name
Paul
Truck Year
1978
Truck Model
C15
Engine Size
350
That sucks, Paul. Sorry to hear :(
Ya it really does and of course they are low balling the crap out of me. I've spent the last two days just trying to get someone on the phone that can actually do something. For what insurance costs this is ridiculous....


CRM

Full Access Member
Joined
Jun 6, 2016
Posts
1,188
Reaction score
2,775
Location
Pasco, Washington
First Name
Casey
Truck Year
1985
Truck Model
K2500
Engine Size
350 CI
Painted and installed both sunvisors and arm rests I picked up from "You pull it". Pulled the small bezel that covers the gauges and painted the backside white. What a difference! While I had the lens off I used a 3M restoration kit to clean it. It's too far gone to be perfectly clear but there is some improvement.


animal

Super Moderator
Staff member
Super Moderator
Joined
Jul 30, 2010
Posts
5,625
Reaction score
3,899
Location
Georgia
First Name
Lee
Truck Year
1986
Truck Model
c10 silverado
Engine Size
350ish
AC fixed and charged, power window on drivers side fixed, blower motor fixed, next is a "new" carb to replace the holley that's currently on it. Should be completed tomorrow then just drive it.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,341
Reaction score
3,393
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
I used a factory low mount compressor (Denso 10S17F) with the Tejas Steelworks mounts.....

Thanks Foamy, great info to have when I get there.


Fastereddie

Full Access Member
Joined
Sep 25, 2015
Posts
148
Reaction score
9
Location
Nevada
First Name
Eddie
Truck Year
1983
Truck Model
K10
Engine Size
383
Got my door panels done today

After


Attachments

  • image.jpg
    23.1 KB · Views: 125
