What have you done to your square lately??

[AyWoSch Motors]

Something like this?

You must be registered for see images attach

Yup, just about. Except my adapter is open bore instead of porper dual plane. I just rounded off the corners on both sides, to match to shape much better. For a smoother transition, from one to another. Before they're were alot of blunt edges.

You must be registered for see images attach

You must be registered for see images attach

I did a bunch more after that picture too.



[TotalyHucked]

Hey Zach, do y'all sell that transmission crossmember in the first picture and will it fit a 700R4?

Sure don't, we actually don't sell any crossmembers for trucks at all. That's a Tejas Steelworks crossmember. It'll definitely work on a 700R4, this is it's younger cousin, the 4L60. Very nice piece, I highly recommend it. Just gotta drill a couple holes in the frame, bolt it up and you're good to go



[hoagster]

@Powerhouse Ranch If you haven't found a lower hose yet I ended up using a Gates 21849. 1.75" at both ends and clears the belts and frame nicely

You must be registered for see images attach

Part number?



[CalSgt]

Part number?

Gates 21849 - For a late '80s Chevy P30 van with a big block... or a square body with 1.75" lower radiator fitting

https://www.oreillyauto.com/detail/c/gates/gates-radiator-hose/gat0/21849?q=gat+21849&pos=0



[TotalyHucked]

Over the weekend I worked on relocating my aux trans cooler, running the wires for the fans on it, cleaning up and looming the wiring in the engine back and did a little grille mod I've had in mind for a long time

**Apparently I forgot to take a picture after I remounted it. Here you can see it follows the kick up in the frame (this is the pass side looking rearward), so it wasn't getting enough airflow. I clocked the back down and the front up a little so it's actually getting airflow through it but kept it away from the floor enough for the fans to work.

You must be registered for see images attach

You must be registered for see images attach

This is mid-drilling the new holes to re-clock it and running the wire.

You must be registered for see images attach

Engine bay before and after. All the wires from the swap were just tangled together and zip tied up to the fender before, it looked awful. Now I can show off my SloshTubz without making excuses for the wiring

You must be registered for see images attach

You must be registered for see images attach



[TotalyHucked]

For the grille, I'd had this idea of using an NBS emblem on a base model '85-up Silverado grille for a while. I know for a fact I've found this grille that was made to work with dual headlights in the past but I cannot for the life of me find one on the market now.

You must be registered for see images attach

Did some horse trading with a buddy, he bought a K10 that had a homemade version on it. It's ugly but solid!

You must be registered for see images attach

Scuffed the center bar and washed/degreased it

You must be registered for see images attach

Taped it off and applied adhesion promoter and some Duplicolor Perfect Match GM Light Blue Metallic

You must be registered for see images attach

All done!

You must be registered for see images attach



[TotalyHucked]

Finished product with some fresh headlight bezels. I love how it turned out! It's a little dark but I didn't clear it in hopes that it'll fade and weather over time

You must be registered for see images attach

You must be registered for see images attach



[TPISly-C10]

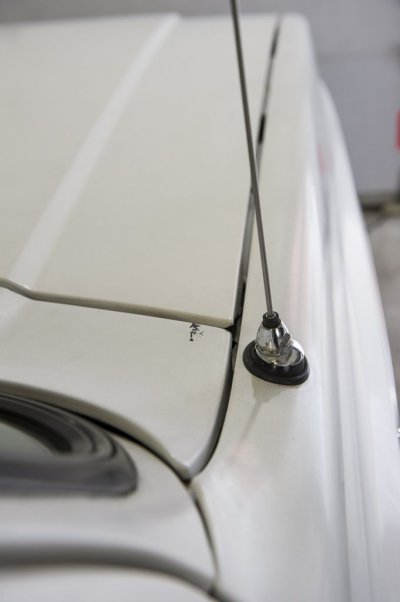

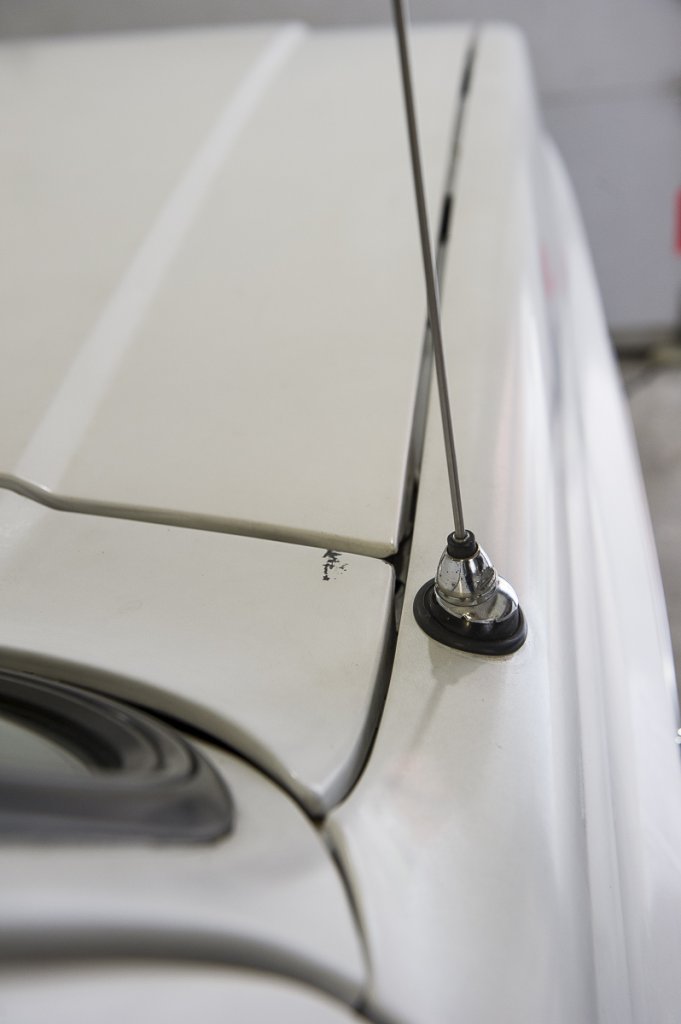

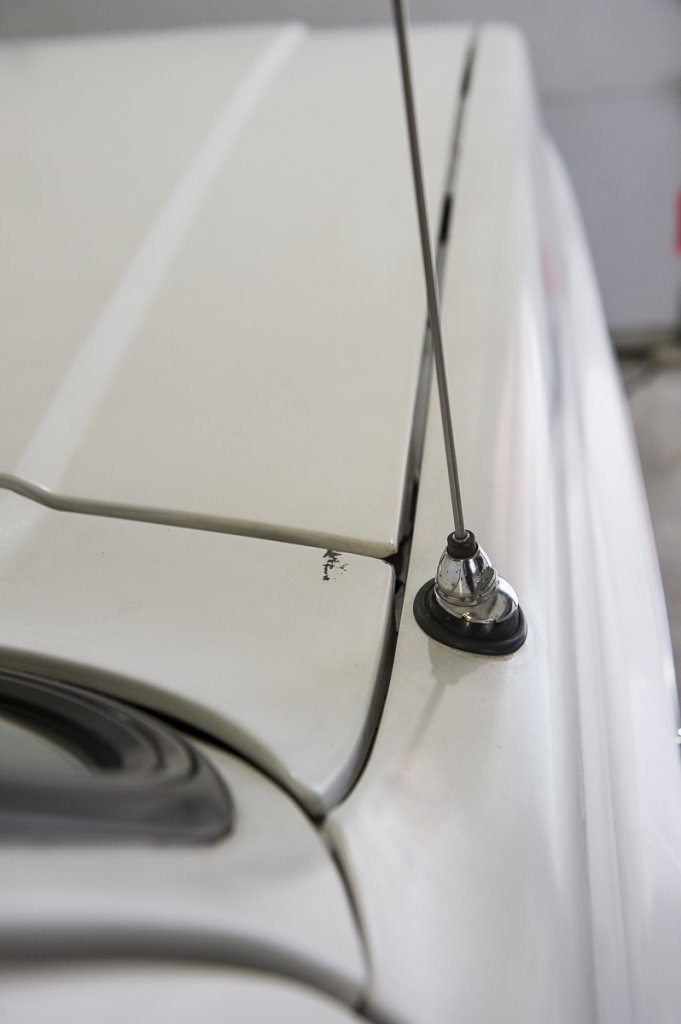

remove the old jobber antenna!



[Grit dog]

For the grille, I'd had this idea of using an NBS emblem on a base model '85-up Silverado grille for a while. I know for a fact I've found this grille that was made to work with dual headlights in the past but I cannot for the life of me find one on the market now.

You must be registered for see images attach

That’s what I did. $20 Craigslist from some guy who had way more emblems than anyone could probably collect…legally anyways! No solid center bar on the grille so I had to get real creative on the mounting. Luckily that part isn’t visible.

You must be registered for see images attach

Did some horse trading with a buddy, he bought a K10 that had a homemade version on it. It's ugly but solid!

You must be registered for see images attach

Scuffed the center bar and washed/degreased it

You must be registered for see images attach

Taped it off and applied adhesion promoter and some Duplicolor Perfect Match GM Light Blue Metallic

You must be registered for see images attach

All done!

You must be registered for see images attach



[Grit dog]

^ my ******* response is embedded in the quote…oops



[TotalyHucked]

^ my ******* response is embedded in the quote…oops

That looks good! I haven't caught that detail on your truck before



[Camar068]

Over the weekend I worked on relocating my aux trans cooler, running the wires for the fans on it, cleaning up and looming the wiring in the engine back and did a little grille mod I've had in mind for a long time

**Apparently I forgot to take a picture after I remounted it. Here you can see it follows the kick up in the frame (this is the pass side looking rearward), so it wasn't getting enough airflow. I clocked the back down and the front up a little so it's actually getting airflow through it but kept it away from the floor enough for the fans to work.

You must be registered for see images attach

You must be registered for see images attach

This is mid-drilling the new holes to re-clock it and running the wire.

You must be registered for see images attach

Engine bay before and after. All the wires from the swap were just tangled together and zip tied up to the fender before, it looked awful. Now I can show off my SloshTubz without making excuses for the wiring

You must be registered for see images attach

You must be registered for see images attach

pic of ecm location and guessing battery on drivers side? AC original truck? Guessing you extended the harness if it's by the headlights. Need to clean mine up is why I ask.



[78C10BigTen]

Well not really done to it.... YET! BUT.... I just bought these headers to put on when my engine swap is complete (hopefully this weekend). Ceramic coated stainless, 1- 5/8" primaries and all hardware pictured included (i hope!). $210 free shipping!! Plus i bought the spark plug boot thermal protector sleeves to not burn my boots.

You must be registered for see images attach

You must be registered for see images attach



[82sbshortbed]

Still waiting on the 700r4 from jegs I ordered over a month ago. Was supposed to be delivered yesterday but nope. So I was gonna contact them this morning. Well opened my inbox and found this.

You must be registered for see images attach

FJB!!!!!



[OldSchool C-10]

Been working on honey-do projects like painting our shed and building a new chicken coop so Old School has been on hold. Sorry for the nasty floor but we had one of our famous Florida rains last night. UPS man brought new patch panels for the inner outer rocker panels from JL Fabrication in VA. BTW, I have the 4.1L six available if anyone needs it, running when I took it out.

You must be registered for see images attach
