Seriously bummed with this drivetrain setup right now :(

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
3,117
Reaction score
7,228
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
Yes, I used 3 degree shims to point the pinion directly at the output shaft.
This is most likely your vibration. @Craig Nedrow explained this very well! If you need a visual here is this:

xc_hide_links_from_guests_guests_error_hide_media


Craig Nedrow

NADAR UNDER THE RADAR
Supporting Member
Joined
Sep 1, 2018
Posts
1,031
Reaction score
2,160
Location
Washington State
First Name
Craig
Truck Year
1973 (have two), 1985
Truck Model
K10, K20, C20
Engine Size
350, 454, 6.2 Detroit
Most excellent Wayne!! Visuals are so nice, and this shows what happens. Recap, phasing, (u-joints exactly in line,) and angle within 1 degree. Wish you were closer Square root AKA Mike, is would be so interesting to crawl under the truck and check runout, and then to pull the shaft and static check phasing. I could fix that, but kinda far away. The angle you can check in the truck, and fix yourself with shims.

Last edited:

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,188
Reaction score
7,991
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
@Craig Nedrow

So just to be clear. I had zero vibration issue with the slip yoke/208 T-case/ and u-joint setup beforehand.

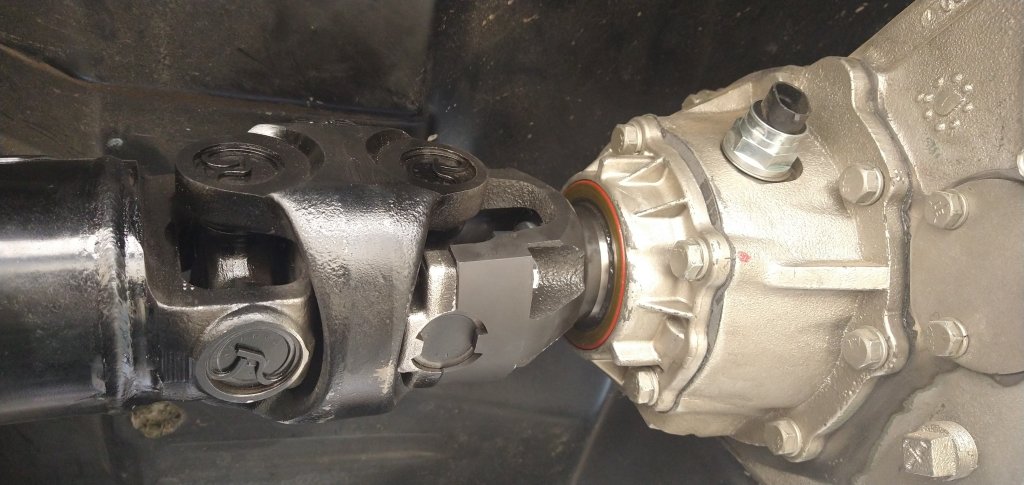

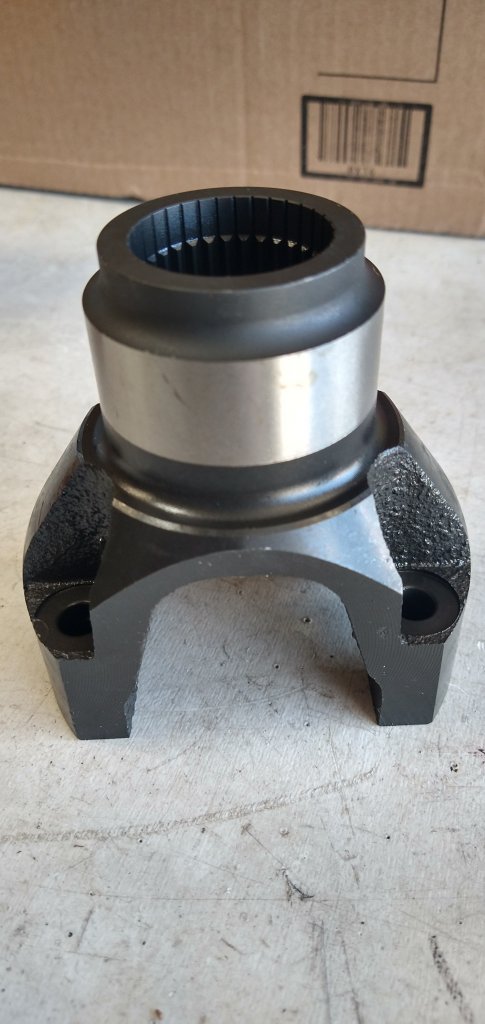

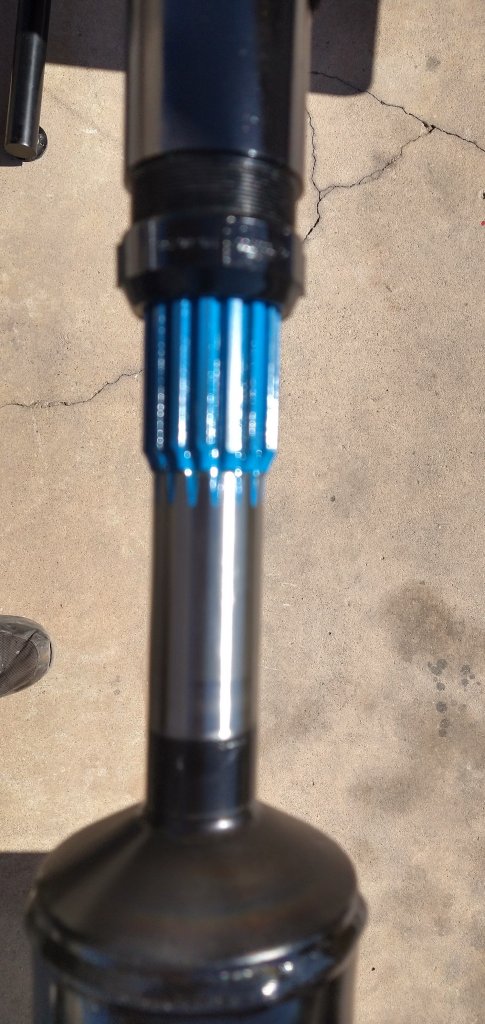

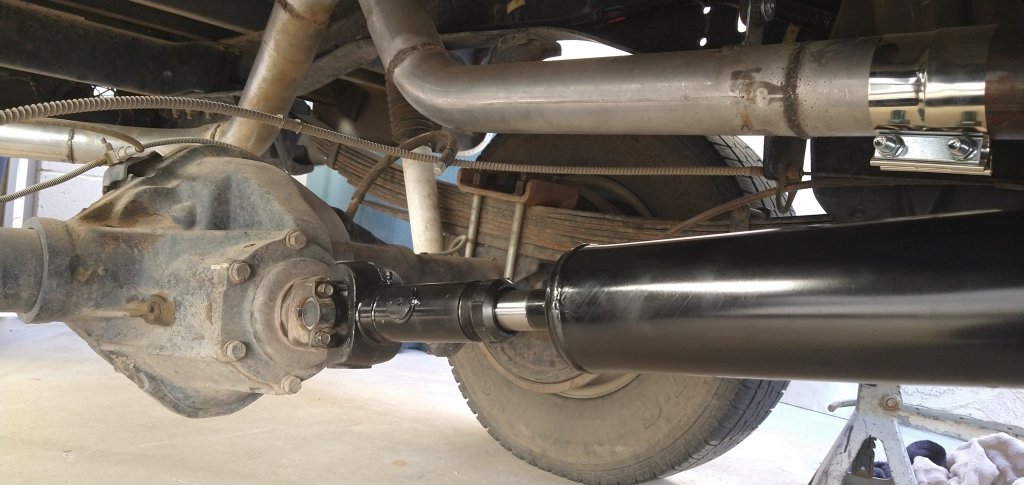

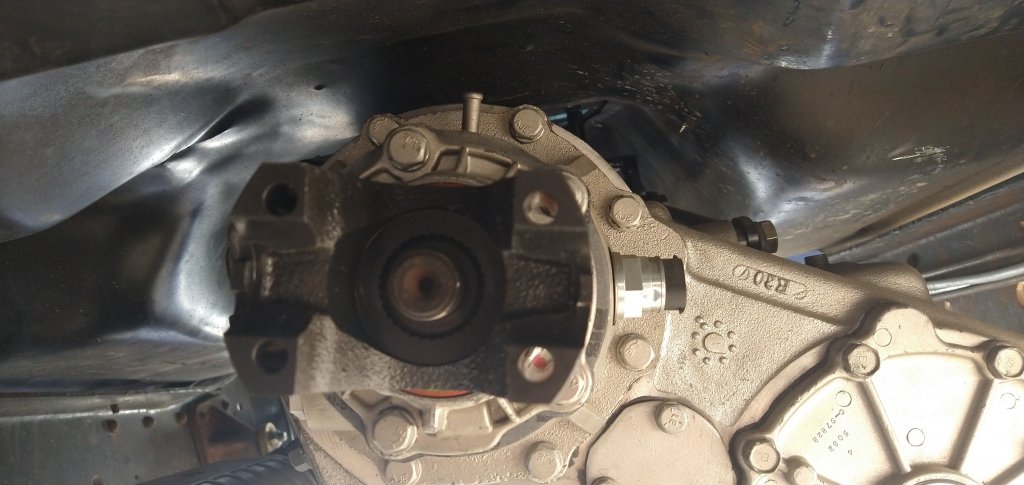

Then I swapped in the 205 fixed yoke and new driveshaft with Double Carden Joint and a new CV style yoke. Based on everything I read, it said (unless I misinterpreted something) that with a Double Carden the pinion angle should point directly at the output shaft. Based on my measurements, I rotated the diff 3* up with pinion shims. Regarding phasing, I understand the concept with single "u-joints" but it seems a moot point with a Double CV because the rear joint is always aligned with one of the two front joints in the CV? Am I making sense? lol


Attachments

  • IMG_20230519_171427702.jpg
    91.1 KB · Views: 81
  • IMG_20230519_171414094.jpg
    95.4 KB · Views: 73
  • IMG_20230517_162420981_HDR.jpg
    74.9 KB · Views: 80
  • IMG_20230519_154641650_HDR.jpg
    105.2 KB · Views: 73
  • IMG_20230517_163520096.jpg
    86 KB · Views: 72

SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,188
Reaction score
7,991
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350

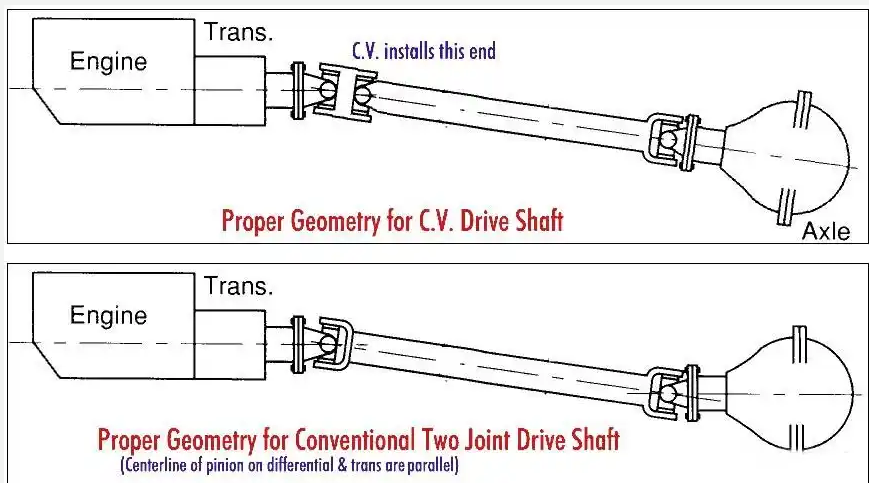

So unless I got the angle wrong, I'm confused. One thing I noticed last night driving home is that the vibration starts at exactly 50 mph. And its the vibration I feel thru the clutch when I shift from 4th to OD. It's NOT rpm dependent, it's definitely speed dependent. First chance I get, I'm going pull the rear shaft, inspect everything and drive it in front wheel drive mode (I can do that now! lol) at highway speed.


Attachments

  • CV Angle.PNG
    CV Angle.PNG
    199.7 KB · Views: 62

Craig Nedrow

NADAR UNDER THE RADAR
Supporting Member
Joined
Sep 1, 2018
Posts
1,031
Reaction score
2,160
Location
Washington State
First Name
Craig
Truck Year
1973 (have two), 1985
Truck Model
K10, K20, C20
Engine Size
350, 454, 6.2 Detroit
Still think your angles are wrong.
I was under the impression that a CV should point directly at the output shaft?
No. rear and front angles MUST BE WITHIN ONE DEGREE, parallel with each other. For simplicity, if you had a shaft coming out from both tcase and rearend both 4' long, that angle would be as close to parallel as you can get. One would be higher, the other lower, but where they overlapped, that would be parallel. Looking at your excellent pictures, if you have an angle gage, when the shaft is out, make sure there are no burrs and attach the angle gage to the U-joints (the flat part where it bolts up,) and check your angle. BTW that really looks good, strong, and clean

Last edited:

77 K20

Full Access Member
Joined
Nov 9, 2012
Posts
3,101
Reaction score
3,119
Location
Montana
First Name
Mike
Truck Year
1977
Truck Model
K20 5" lift
Engine Size
HT383 fuel injected
Following this- I went from a NP203 to a magnum/NP205 and have new drive shafts. I now have a vibration. So far been traveling too much for work to even drive the truck- but disappointed in the highway vibration.

Mine is a bit more confusing as I have full time 4x4 slugs in the front axle- so I'm turning both driveshafts all the time.

Just reading and learning for now as this is real useful information.


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,436
Reaction score
5,564
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
Still think your angles are wrong.

No. rear and front angles MUST BE WITHIN ONE DEGREE, parallel with each other. For simplicity, if you had a shaft coming out from both tcase and rearend both 4' long, that angle would be as close to parallel as you can get. One would be higher, the other lower, but where they overlapped, that would be parallel. Looking at your excellent pictures, if you have an angle gage, when the shaft is out, make sure there are no burrs and attach the angle gage to the U-joints (the flat part where it bolts up,) and check your angle. BTW that really looks good, strong, and clean
You are wrong. If you only have two U-joints, then you are absolutely correct on them needing to be the same parallel angle within <1degree. For a CV setup, the differential needs to be pointed directly at the transfer case. He could be getting the same vibration issue if the diff angle is off from straight though.

https://4xshaft.com/blogs/general-tech-info-articles/driveshaft-angles


77 K20

Full Access Member
Joined
Nov 9, 2012
Posts
3,101
Reaction score
3,119
Location
Montana
First Name
Mike
Truck Year
1977
Truck Model
K20 5" lift
Engine Size
HT383 fuel injected
Driveline angle link

I have Tom Wood's front and rear driveshafts (both new). He had this nice page where I had measured everything and then wrote it down. I then lost the paper and need to remeasure it.

Might be useful for you.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,188
Reaction score
7,991
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
Driveline angle link

I have Tom Wood's front and rear driveshafts (both new). He had this nice page where I had measured everything and then wrote it down. I then lost the paper and need to remeasure it.

Might be useful for you.
xc_hide_links_from_guests_guests_error_hide_media

Tom Woods has a great YouTube page and one of the videos specifically addresses the vibration issues, including the difference between a cardan (u-joint) and CV (double u-joint). He also describes the two causes of vibration (angular and dynamic) and the "symptoms" of each. Mine leans more towards dynamic based on his charts. I'm hoping its angular, since every piece in my puzzle is brand new (and balanced).

Last edited:

RaisedK5

Full Access Member
Joined
Sep 12, 2021
Posts
114
Reaction score
241
Location
Memramcook, New Brunswick, Canada
First Name
Leland
Truck Year
1975
Truck Model
Blazer
Engine Size
350
Not sure if anyone mentioned this but in all reality you want the rear pinion pointed a couple degrees down from directly at the t case with a cv because youll get pinion climb under load. That way it'll be near zero under load.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,838
Reaction score
5,621
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,76,70,48
Truck Model
Suburban k10, bonanza k10, k30, k20, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350, 350
Following this- I went from a NP203 to a magnum/NP205 and have new drive shafts. I now have a vibration. So far been traveling too much for work to even drive the truck- but disappointed in the highway vibration.

Mine is a bit more confusing as I have full time 4x4 slugs in the front axle- so I'm turning both driveshafts all the time.

Just reading and learning for now as this is real useful information.
I would say it's your front axle being locked in. Mine starts to vibrate around 50 with the front hubs locked. But I have 35's and a 5 inch lift.

Completely smooth to 80 something but if the hubs are locked the vibration starts right around 45-55


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,688
Reaction score
3,706
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
You are wrong. If you only have two U-joints, then you are absolutely correct on them needing to be the same parallel angle within <1degree. For a CV setup, the differential needs to be pointed directly at the transfer case. He could be getting the same vibration issue if the diff angle is off from straight though.

https://4xshaft.com/blogs/general-tech-info-articles/driveshaft-angles
^^^^ This. To rough it in it should point directly at the TC output, to fine tune use an angle finder to compare the angle of the u-joint cap to the angle of the shaft. A socket used as a shim between the ujoint cap and angle finder helps.

Not sure if anyone mentioned this but in all reality you want the rear pinion pointed a couple degrees down from directly at the t case with a cv because youll get pinion climb under load. That way it'll be near zero under load.
I was thinking this too, may be getting a little axle wrap at higher speeds pulling up on the pinion snout. I know in the Jeep world (lots of double cardan rears shafts) with control arm type suspension they suggest setting pinion 1 degree (or so) off to compensate for rise under load.


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,188
Reaction score
7,991
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
^^^^ This. To rough it in it should point directly at the TC output, to fine tune use an angle finder to compare the angle of the u-joint cap to the angle of the shaft. A socket used as a shim between the ujoint cap and angle finder helps.


I was thinking this too, may be getting a little axle wrap at higher speeds pulling up on the pinion snout. I know in the Jeep world (lots of double cardan rears shafts) with control arm type suspension they suggest setting pinion 1 degree (or so) off to compensate for rise under load.
Wonderful. Ya'll know what a PITA it was to put the shims in the leafpack? Now it's literally 150 degrees here and I gotta crawl under that B***h in the driveway :(. Man gotta do what a man gotta do. At least my new console makes me keep going.


CalSgt

Full Access Member
Joined
Oct 3, 2021
Posts
1,688
Reaction score
3,706
Location
CA
First Name
Casey
Truck Year
1980
Truck Model
Chevy K-10 Custom Deluxe
Engine Size
350
Wonderful. Ya'll know what a PITA it was to put the shims in the leafpack? Now it's literally 150 degrees here and I gotta crawl under that B***h in the driveway :(. Man gotta do what a man gotta do. At least my new console makes me keep going.
Sorry for your luck Sir…
