Ok thats the wire that connects to the blower motor terminal.
Heater worked great now no air flow.
- Thread starter ruedger455
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
I jumpered the battery to the blower motor and it did not come on so i assume the motor is bad.
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
I checked everything im almost positive its the motor. Im replacing that and ghe resistor.
chengny
Full Access Member
- Joined
- Feb 22, 2012
- Posts
- 4,084
- Reaction score
- 1,024
- Location
- NH
- First Name
- Jerry
- Truck Year
- 1986
- Truck Model
- K3500
- Engine Size
- 350/5.7
Why spend money needlessly?
If you have determined that the fan motor is not operational, just pull it (you have to anyway) and test it again on the bench. Use the truck battery. Jumper from the battery positive to the fan's power terminal and run another jumper wire from a paint free spot on the fan housing to the battery negative.
BE AWARE - even though they look like toys and are light weight, these blower assemblies (the motor and the squirrel cage fan) develop a surprisingly large amount of torque, especially at initial start up.
When/if you go to apply power while bench testing, MAKE SURE it is well secured. If you get lucky and it starts, there is a good chance it will fly right off the bench.
If that doesn't spin the fan - then yeah, you need to get a new one. But save yourself the $15 and don't buy a new resistor yet. Yours is probably fine and may well last forever.

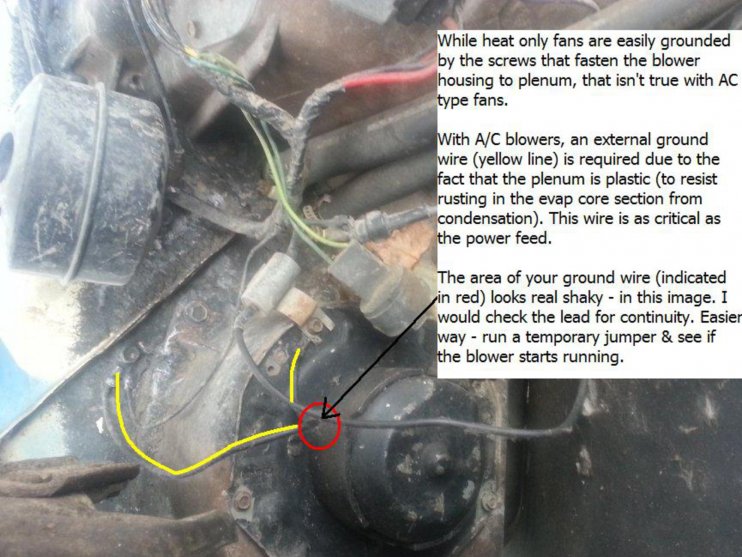

But before you even do pull the blower out, please read the text I inserted into the image below (click to enlarge):
If you have determined that the fan motor is not operational, just pull it (you have to anyway) and test it again on the bench. Use the truck battery. Jumper from the battery positive to the fan's power terminal and run another jumper wire from a paint free spot on the fan housing to the battery negative.
BE AWARE - even though they look like toys and are light weight, these blower assemblies (the motor and the squirrel cage fan) develop a surprisingly large amount of torque, especially at initial start up.
When/if you go to apply power while bench testing, MAKE SURE it is well secured. If you get lucky and it starts, there is a good chance it will fly right off the bench.
If that doesn't spin the fan - then yeah, you need to get a new one. But save yourself the $15 and don't buy a new resistor yet. Yours is probably fine and may well last forever.
But before you even do pull the blower out, please read the text I inserted into the image below (click to enlarge):
Attachments
- Joined
- Dec 7, 2010
- Posts
- 24,811
- Reaction score
- 6,747
- Location
- Southeast PA
- First Name
- Paw Paw
- Truck Year
- 2007
- Truck Model
- Chevrolet Tahoe LT
- Engine Size
- 5.3, 4WD
I been wondering this myself and I have a few of each motors to compare in the shop at some point and share here. To me they look like that same except the fan that mounts to the motor shaft is shallower in depth compared to the AC fan. Heat only housing is an inch or 2 shallower measuring from the mounting face of the housing to the face of the firewall. When I find the time I will share those pics and do some comparison measurements and such.
Sent from my iPod touch 4th Gen using Tapatalk
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
Well i changed the blower motor But it still doesnt come on. What should i change next?
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
When i move the fan speed switch i can hear somethibg clicking by the blower motor.
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
Brand new!
Milblazer
Full Access Member
- Joined
- Mar 21, 2013
- Posts
- 268
- Reaction score
- 5
- Location
- Colorado
- First Name
- MilBlazer
- Truck Year
- 1984
- Truck Model
- K5
- Engine Size
- 6.2
So somewhere between the fan switch and the connectors on the blower motor and relay you are not getting power. Time to get out the voltmeter and see where you're not getting power.
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
But the motor looks just like a non a/c motor! But it has the 7/8ths hole for the a/c tube. Could it be the wrong motor?
82chevy350
Full Access Member
- Joined
- Jul 30, 2010
- Posts
- 775
- Reaction score
- 51
- Location
- Van Buren, AR
- First Name
- Joey
- Truck Year
- 1982, 1976
- Truck Model
- C10, K10, K5
- Engine Size
- 350, 350
A multimeter will be your best friend in this situation instead of wasting money on parts that aren't bad.
chengny
Full Access Member
- Joined
- Feb 22, 2012
- Posts
- 4,084
- Reaction score
- 1,024
- Location
- NH
- First Name
- Jerry
- Truck Year
- 1986
- Truck Model
- K3500
- Engine Size
- 350/5.7
But the motor looks just like a non a/c motor! But it has the 7/8ths hole for the a/c tube. Could it be the wrong motor
Doesn't matter - internally, they are wired the same. The difference is which type of plenum you have. If the fan (either with or without a ventilation hole) is mounted into a plastic A/C plenum, it requires an external ground wire. Did you see this and read/understand the text?:
Even if the fan motor is perfect (and the power supply is available and connected) - it will not run without a proper ground connection.
Run a jumper from the battery to the new fan - if it doesn't run you either have:
1. A replacement fan that is bad right out of the box. Or
2. No ground connection from the metal fan housing to the truck body (that bolt on the firewall)
Doesn't matter - internally, they are wired the same. The difference is which type of plenum you have. If the fan (either with or without a ventilation hole) is mounted into a plastic A/C plenum, it requires an external ground wire. Did you see this and read/understand the text?:
You must be registered for see images attach
Even if the fan motor is perfect (and the power supply is available and connected) - it will not run without a proper ground connection.
Run a jumper from the battery to the new fan - if it doesn't run you either have:
1. A replacement fan that is bad right out of the box. Or
2. No ground connection from the metal fan housing to the truck body (that bolt on the firewall)
ruedger455
Full Access Member
- Joined
- Mar 26, 2013
- Posts
- 143
- Reaction score
- 0
- Location
- three rivers , mi
- First Name
- kimber
- Truck Year
- 1977
- Truck Model
- k2500 grande sierra
- Engine Size
- 350
Ok so that ground that you high lighted yellow could have gotten obstructed some how? Cause the fan worked before. I will check the grounding and if that doesnt work ill just start volt metering the wires.
Thanks for all the help guys!!!!!!
Thanks for all the help guys!!!!!!
