Water Pump Install - '89 TBI 350

[89Suburban]

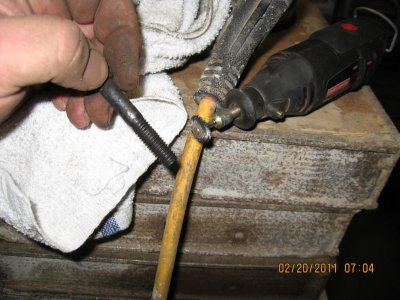

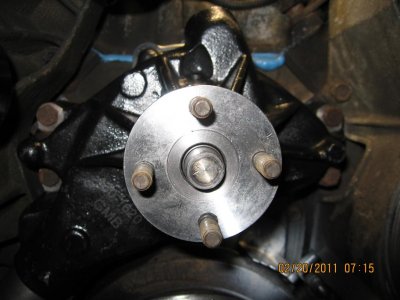

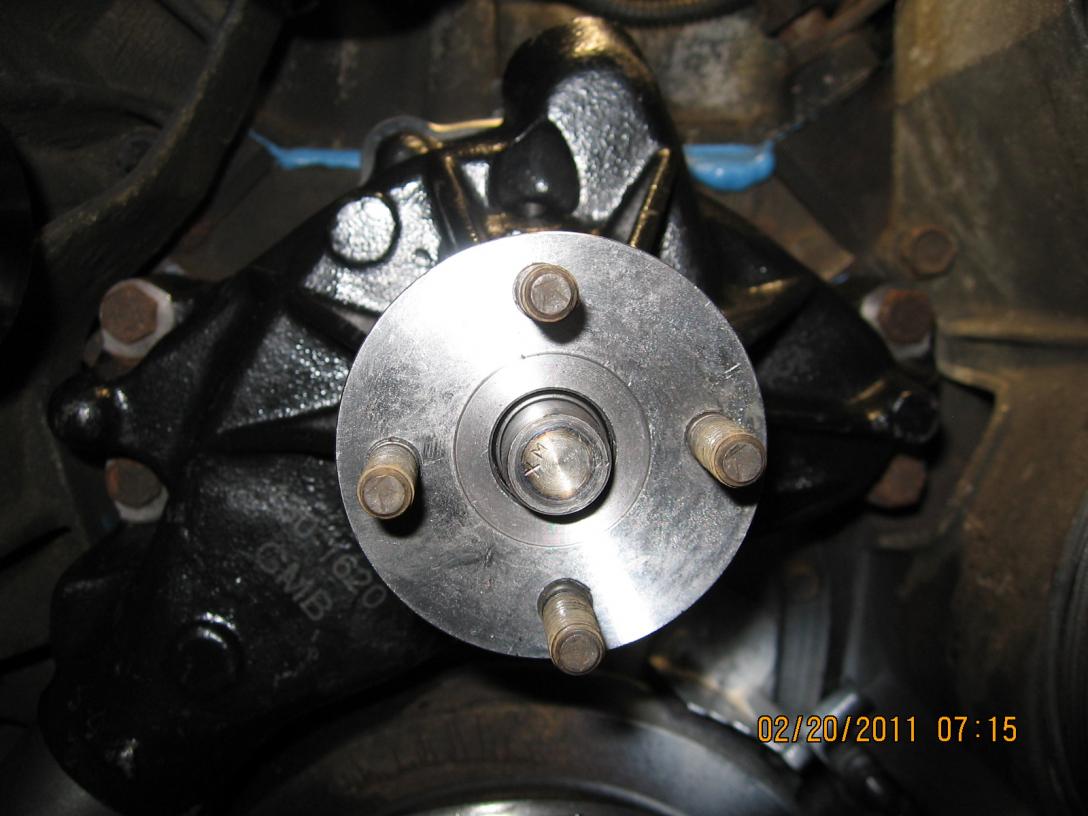

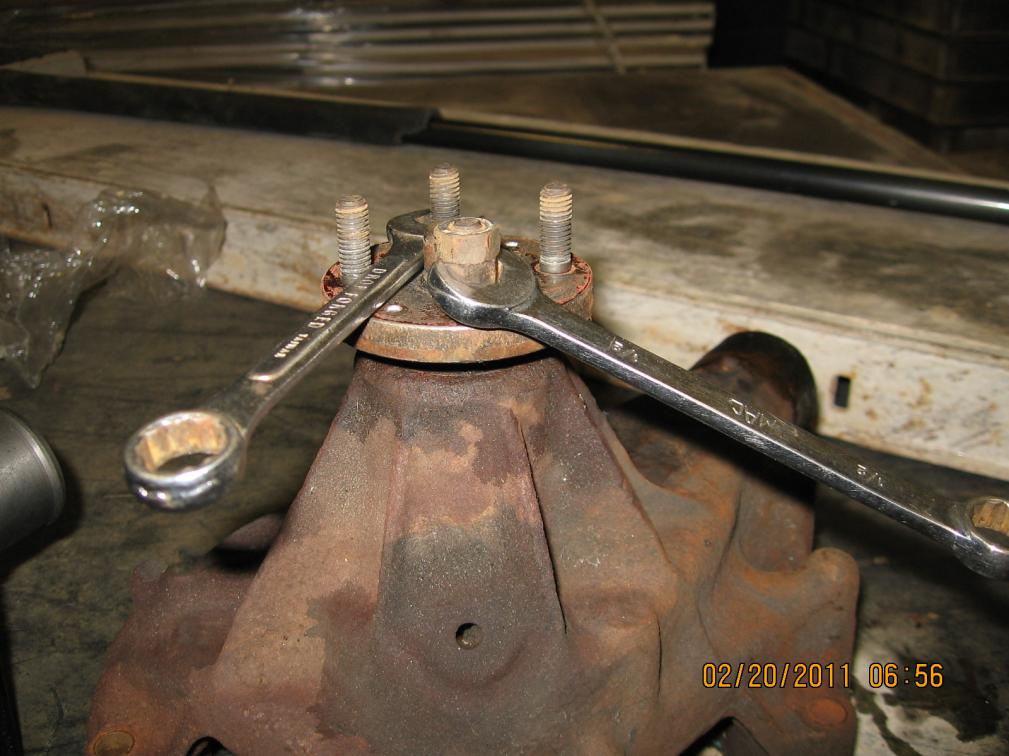

Using two nuts, you can thread them on the stud, and tighten them against each other, making a temporary "bolt head" to remove each one and transfer to the new one.



[89Suburban]

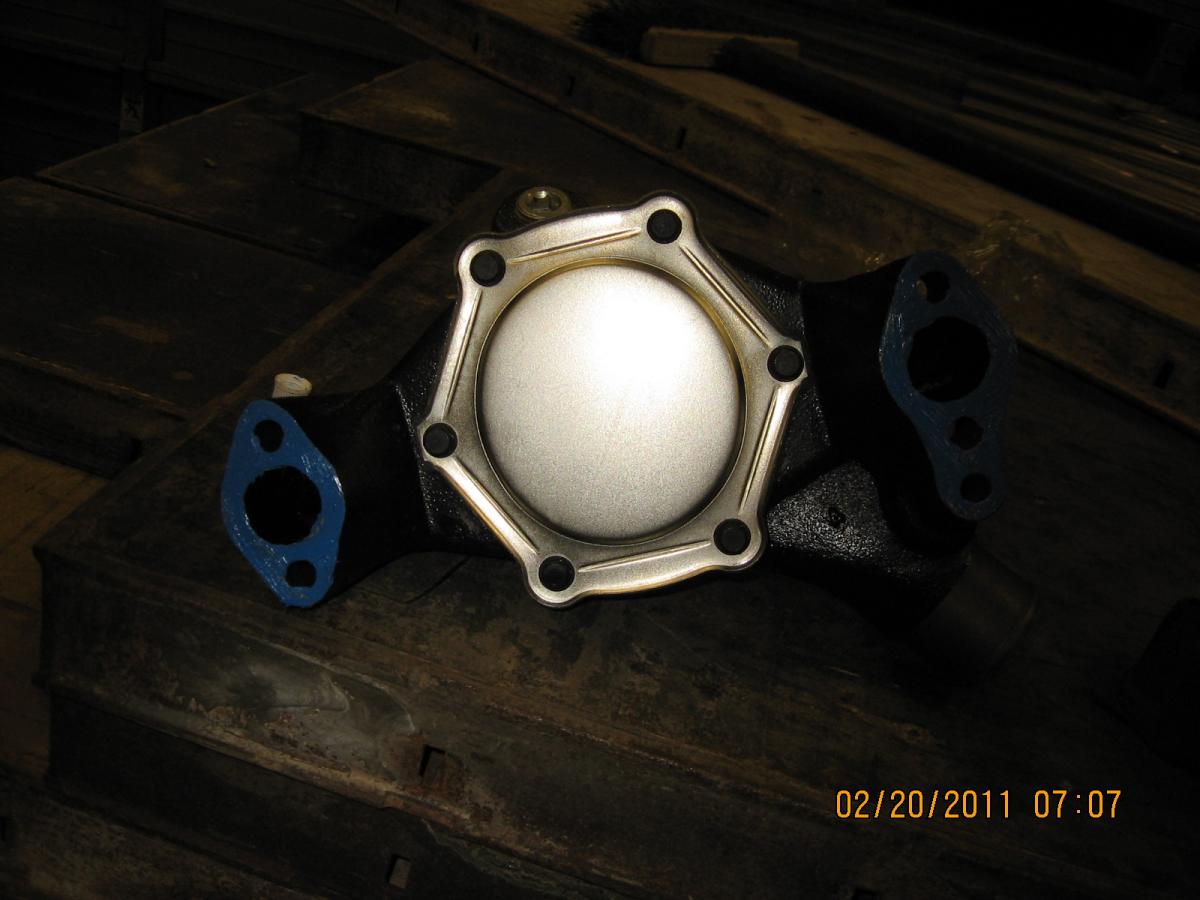

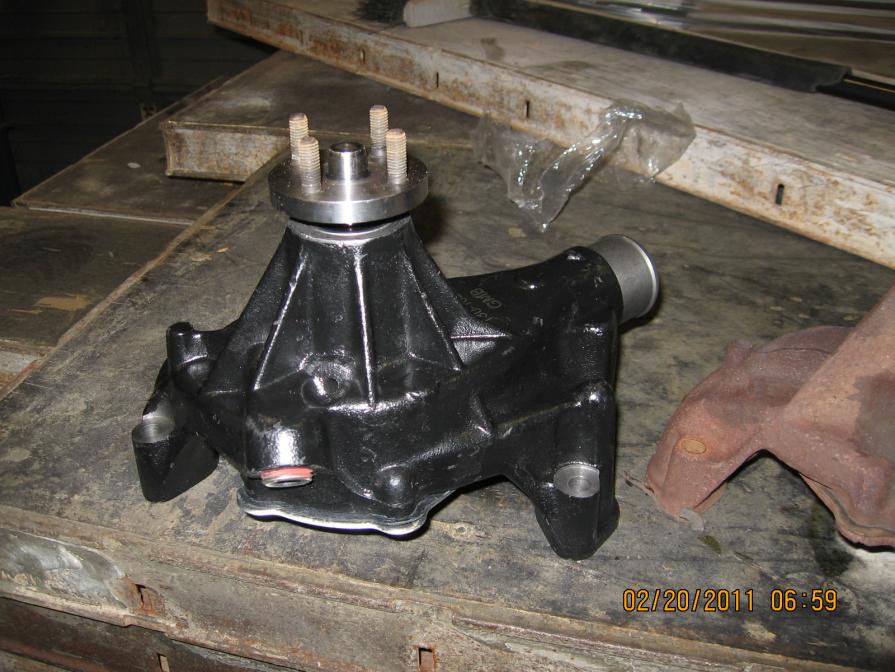

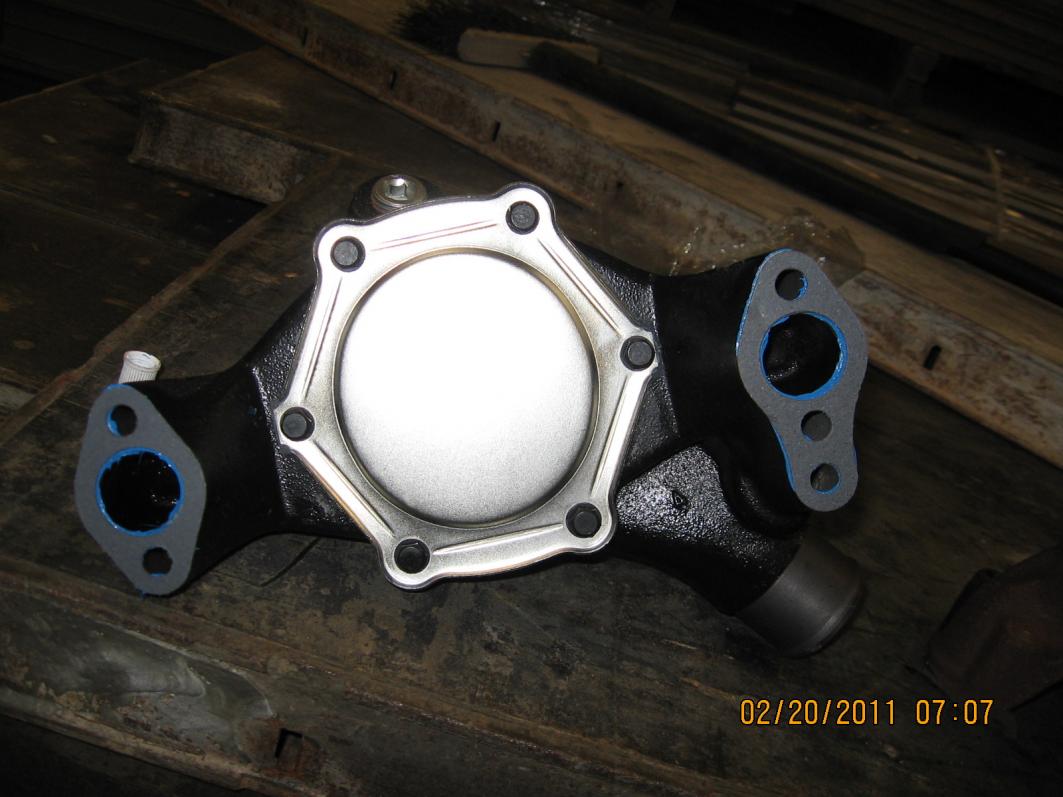

A thin skin of RTV sealant applied to the pump faces.



[89Suburban]

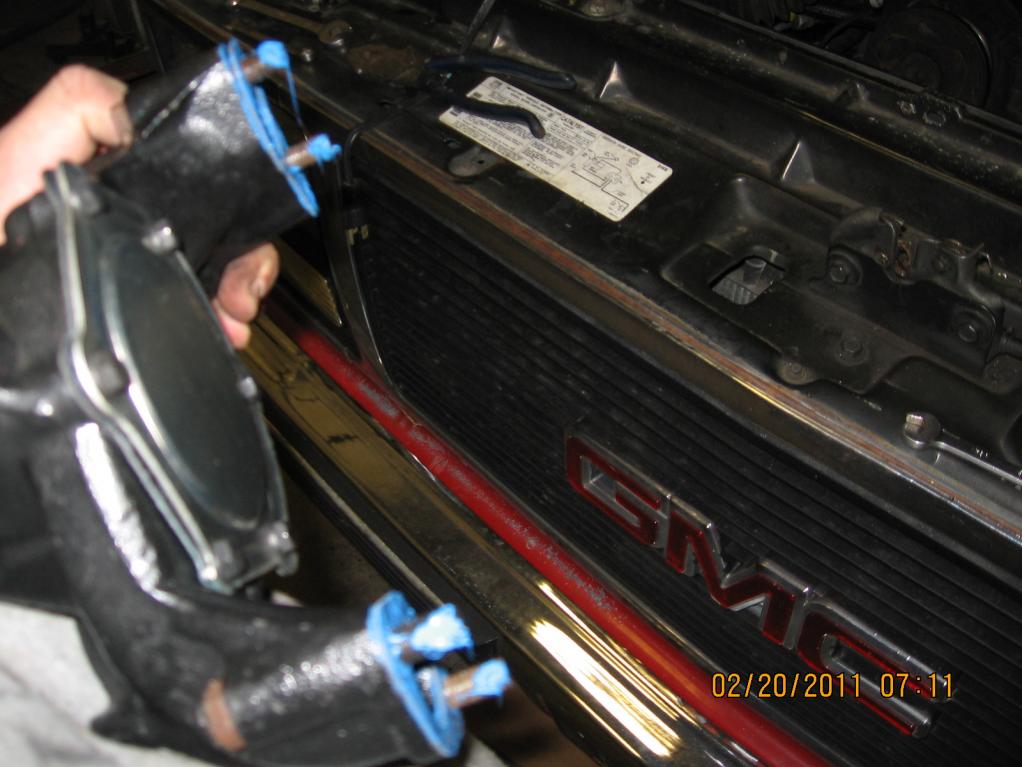

Stick the gaskets on in the proper positions...



[89Suburban]

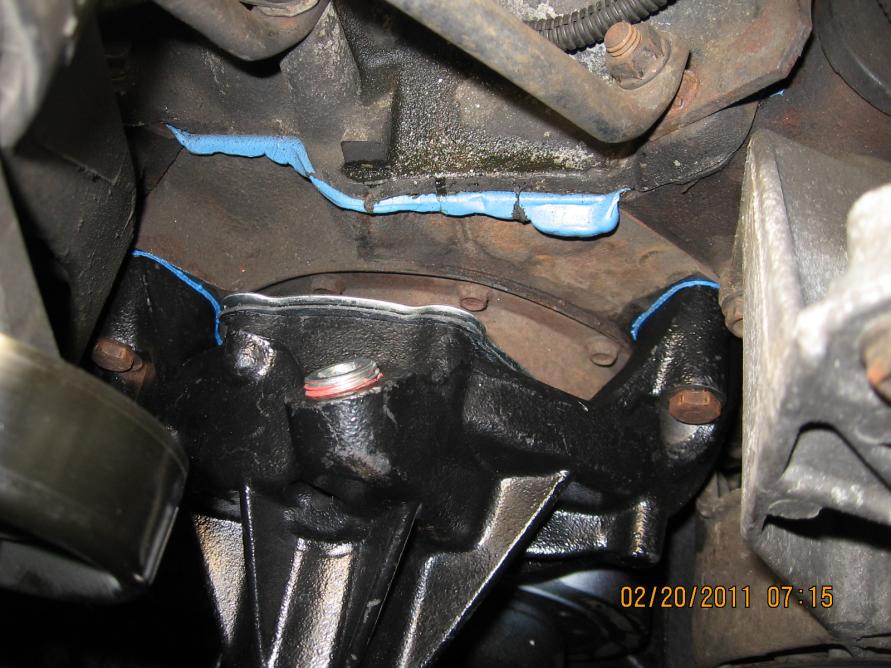

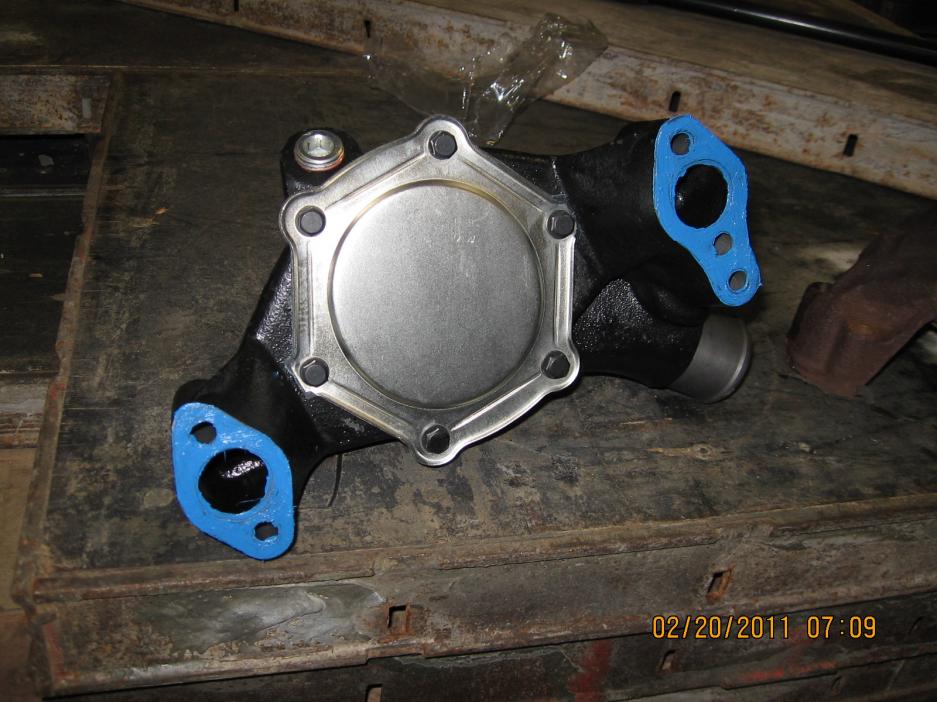

...and another thin coat of RTV on the block side of the gaskets.



[89Suburban]

Cleaned off the monting bolts with the dremel brush...



[89Suburban]

Insert the bolts into the water pump and gaskets to hold the gaskets in place and a tiny dab of RTV on the threads of all bolts.



[89Suburban]

Install pump, being carefull not to dislocate the gaskets. tighten in a criss cross pattern a few times applying more torque each time. There is no torque spec for these bolts that I could find in my manual.



[89Suburban]

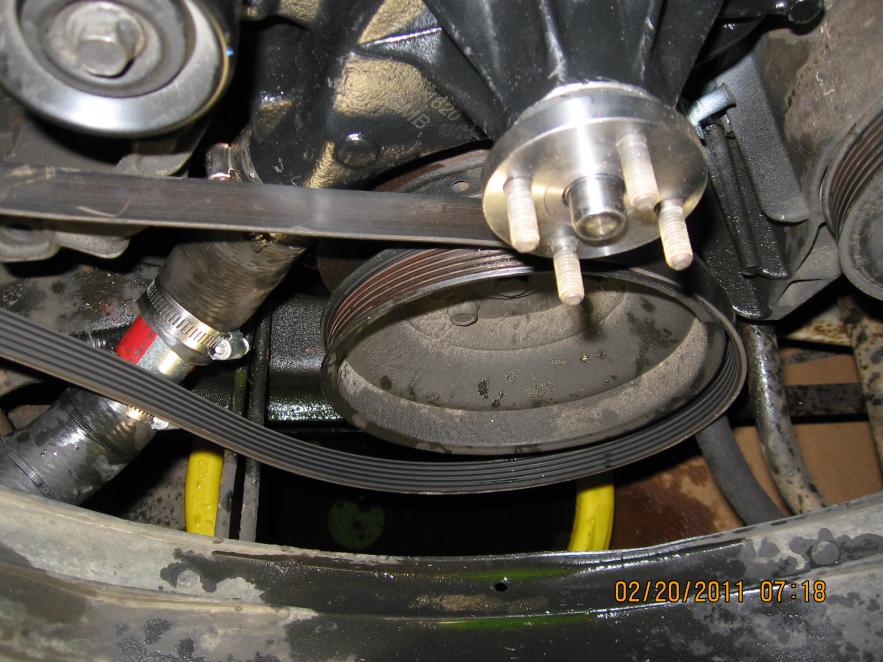

Loop a section of the serpentine belt onto the crank pulley.



[89Suburban]

Install water pump pulley and clutch fan and 4 nuts, tighten as much as you can hand tight while wiggling fan to get it seated fully on the pump shaft/flange.



[89Suburban]

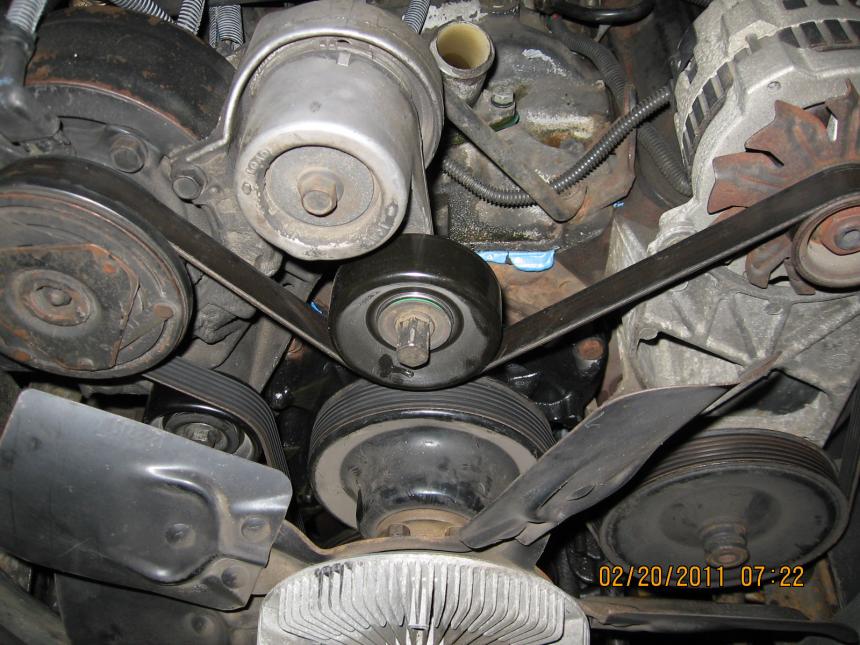

Install and route rest of serpentine belt as directed by the label on the fan housing or radiator support.



[89Suburban]

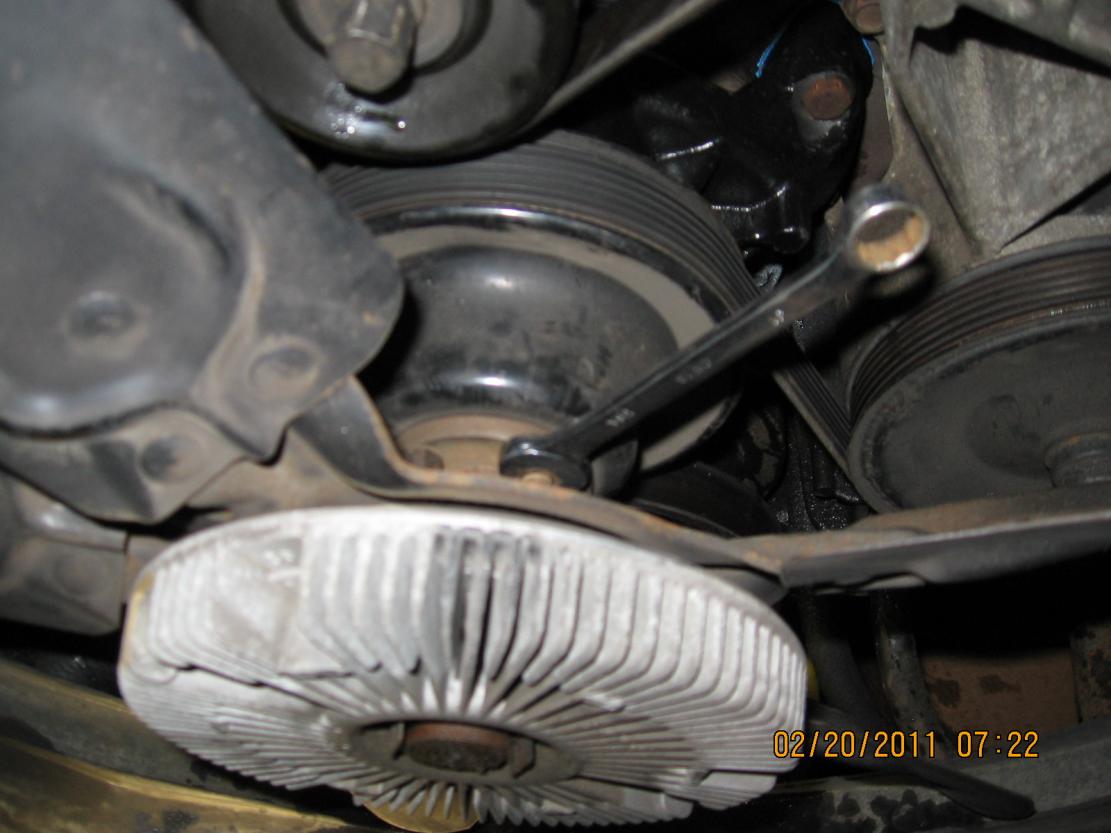

You can then use a wrench to tighten the nuts on the fan clutch fully.



[89Suburban]

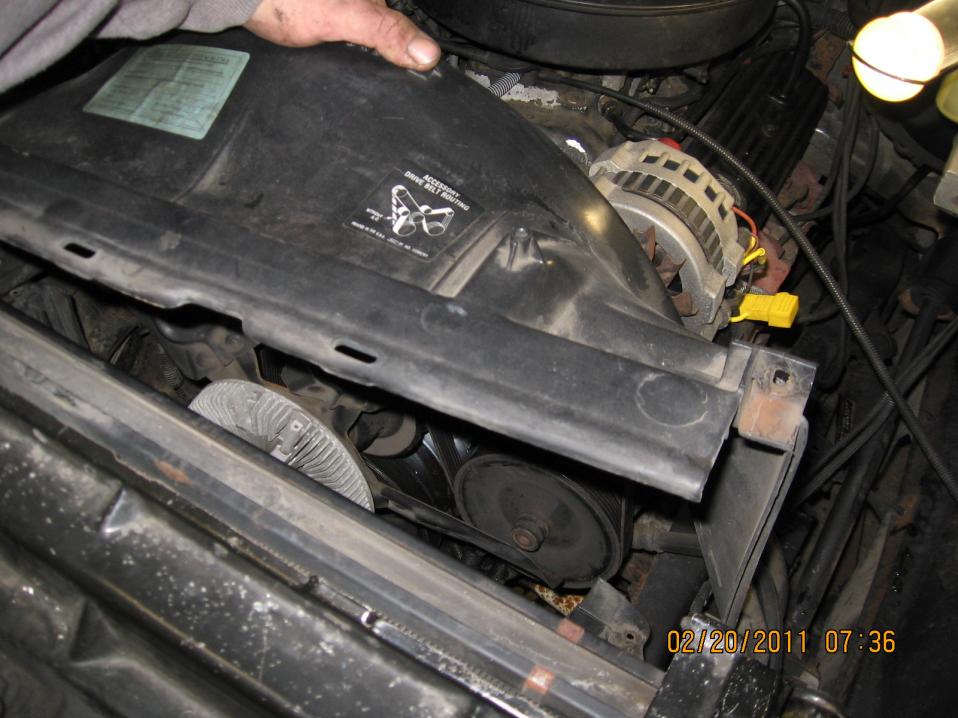

Install the upper fan shroud.



[89Suburban]

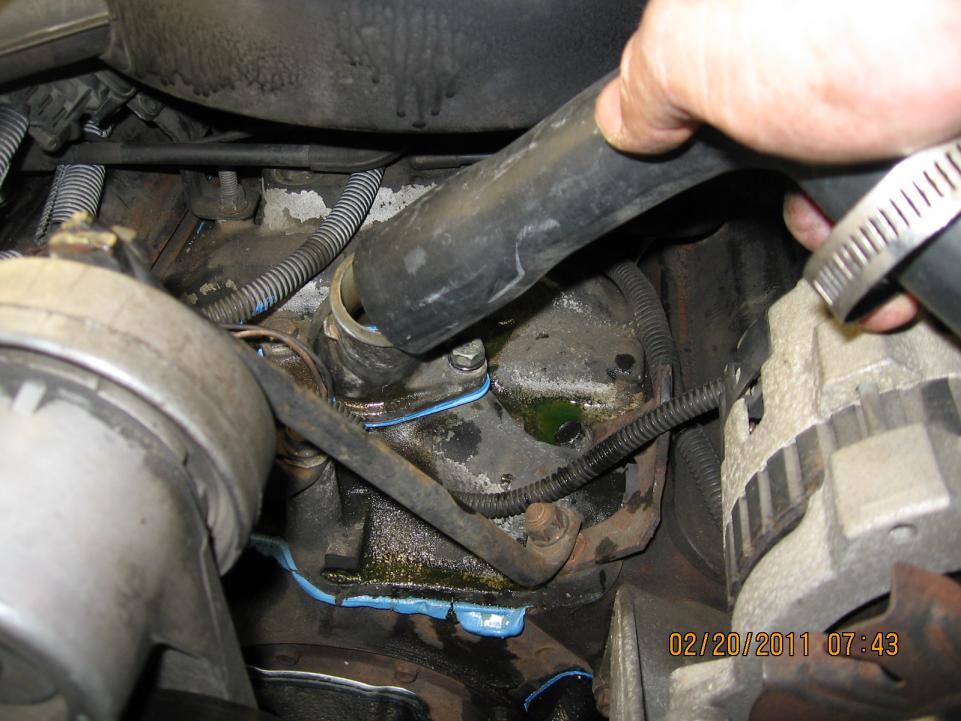

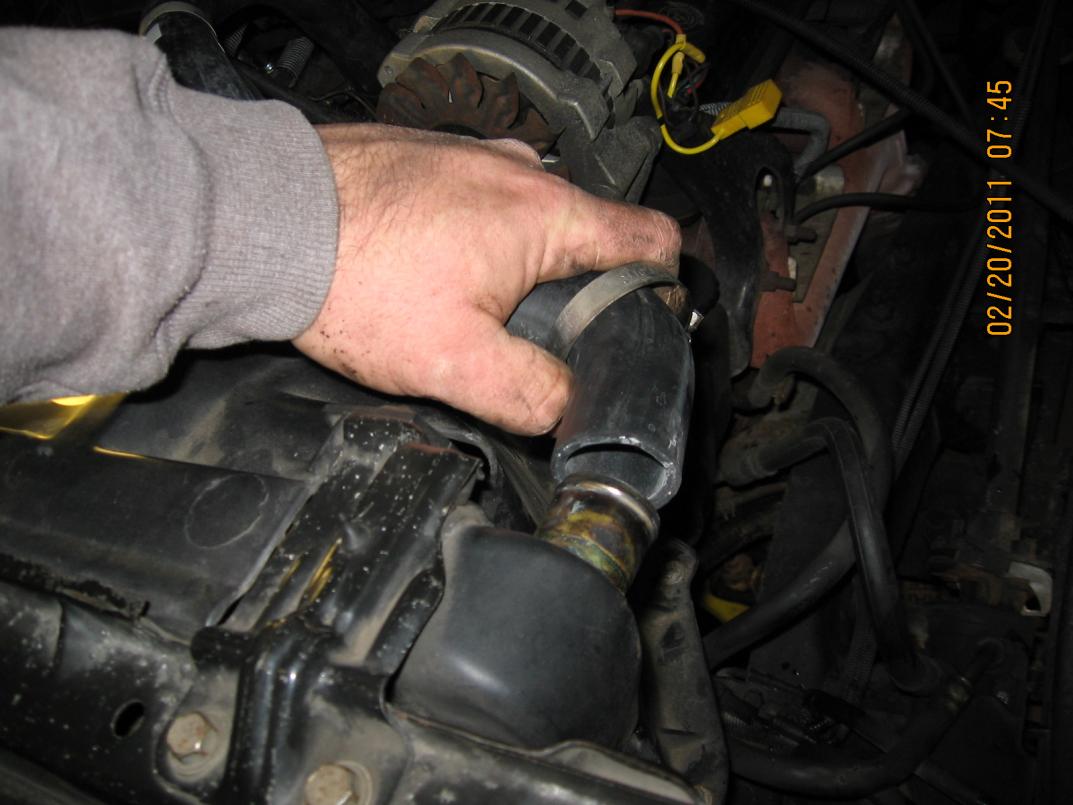

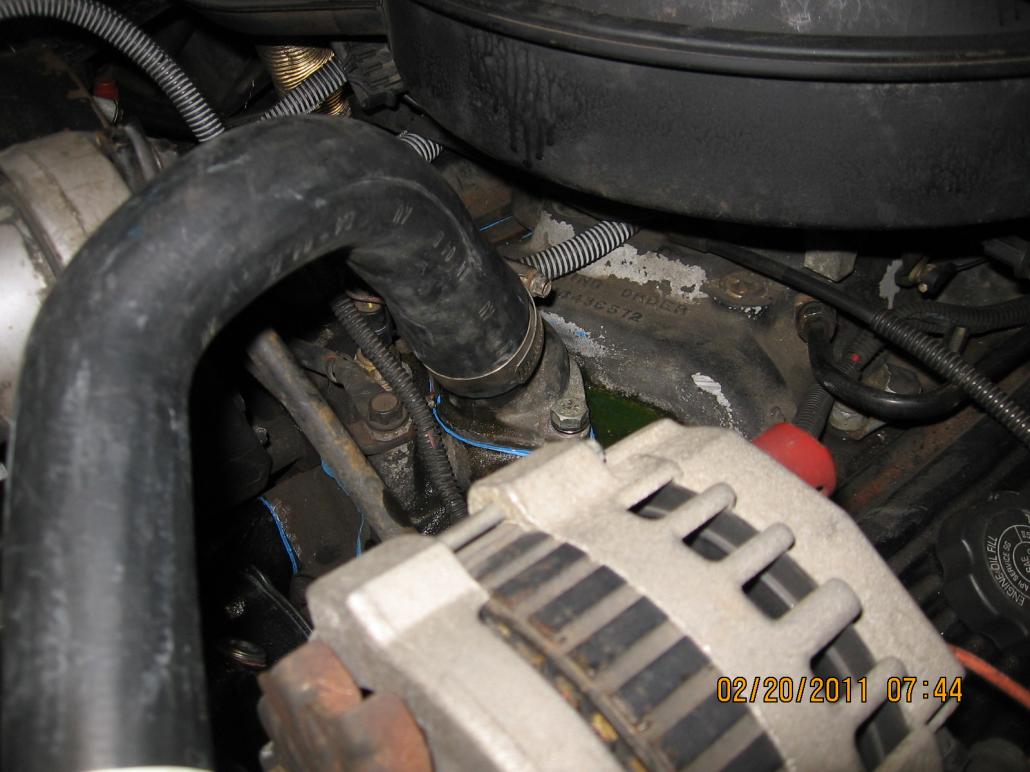

Install upper raditaor hose onto thermostat housing.



[89Suburban]

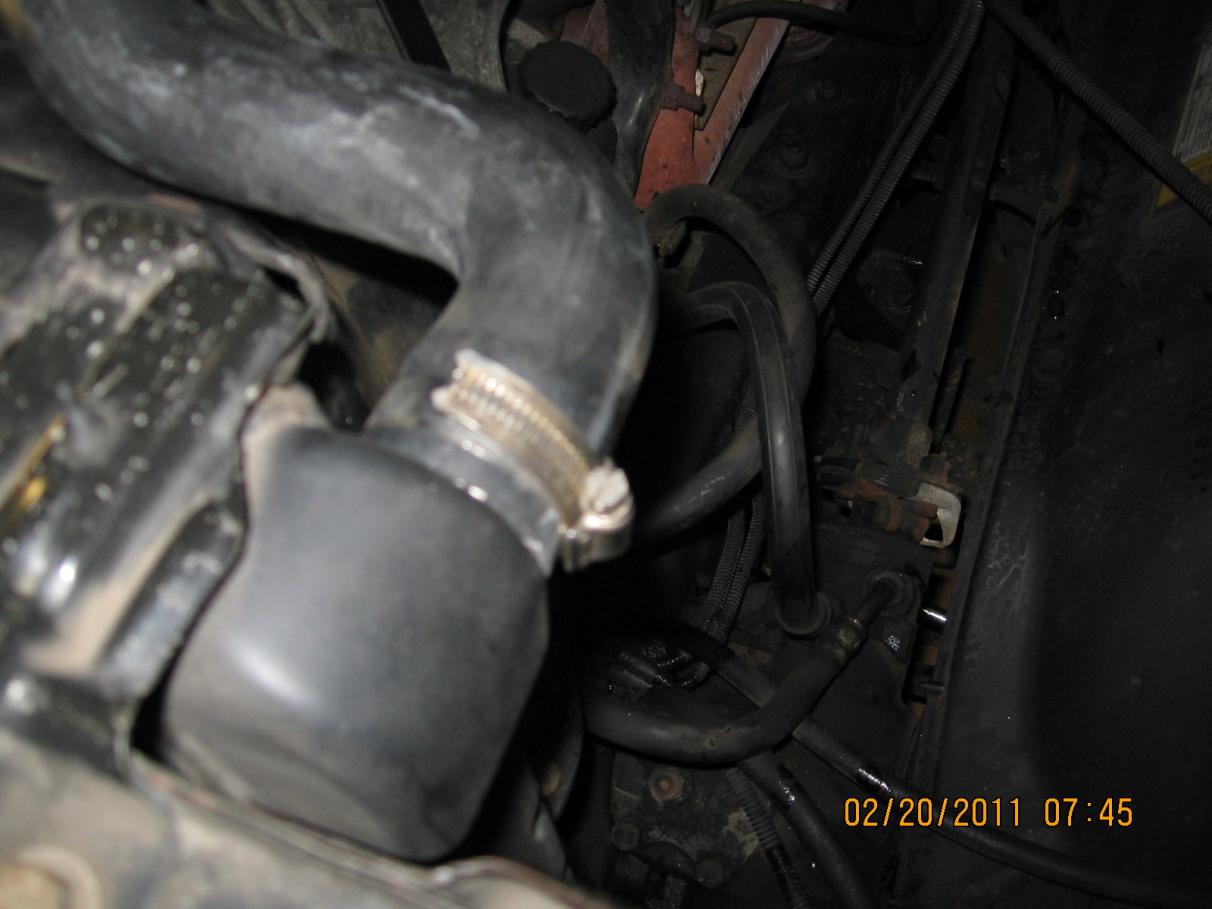

Then install other end onto radiator.



[89Suburban]

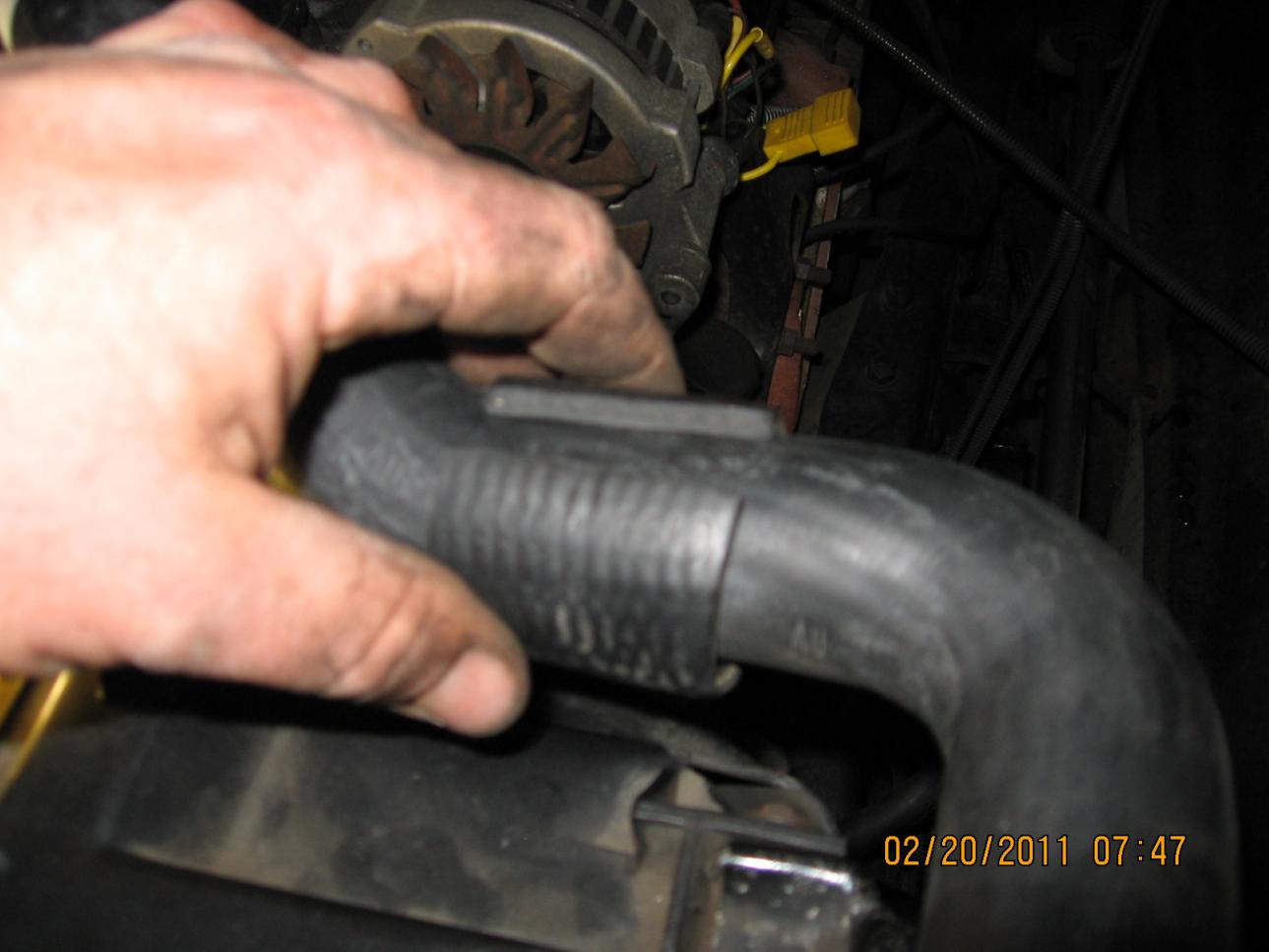

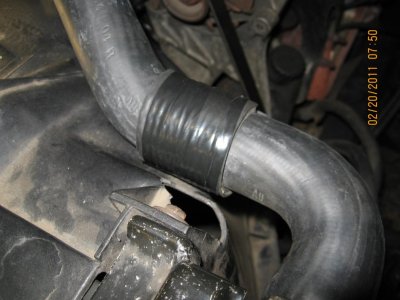

I usually save an old used radiator hose to use for rubbing points to protect new hoses. I usually hold them on with a zip-tie but I forgot them so I had to settle for electrical tape.
