SBC exhaust manifolds don't fit

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

MikeB

Full Access Member
Joined
Apr 4, 2014
Posts
1,775
Reaction score
1,004
Location
North Texas
First Name
Mike
Truck Year
1969
Truck Model
C10
Engine Size
355
Do the double hump heads have the threaded bolt holes for the engine accessories? Early 327 heads do not have the threaded holes.
I've read where these service replacement double hump heads did have the bolt holes.
041
370
186


deucecoupe

Junior Member
Joined
Jun 29, 2022
Posts
17
Reaction score
9
Location
Lake Oswego OR
First Name
Richard
Truck Year
1984
Truck Model
C10
Engine Size
350
Okay. The second question in my original post was poorly worded.

Here's the corrrected question. I have the two supposedly matched exhaust manifolds and y-pipe from a '76 to '80. When I look at the mount of the y-pipe to the RH manifold, everything lines up and the little "donut" fits between the two perfectly.

But on the left hand site, the exhaust manifold is domed outward. The dome fits in the receiving end of the y-pipe, but there is no place for the donut.

Is this correct? Would this cause exhaust leaks or excess noise?

I'm actually going to run duals, and SQUAREROOT has me thinking again about headers. Nonetheless, I ask the above question since I want to know how these work.

Thanks everyone for your great responses and for indulging me on this last question.

Pics attached.


Attachments

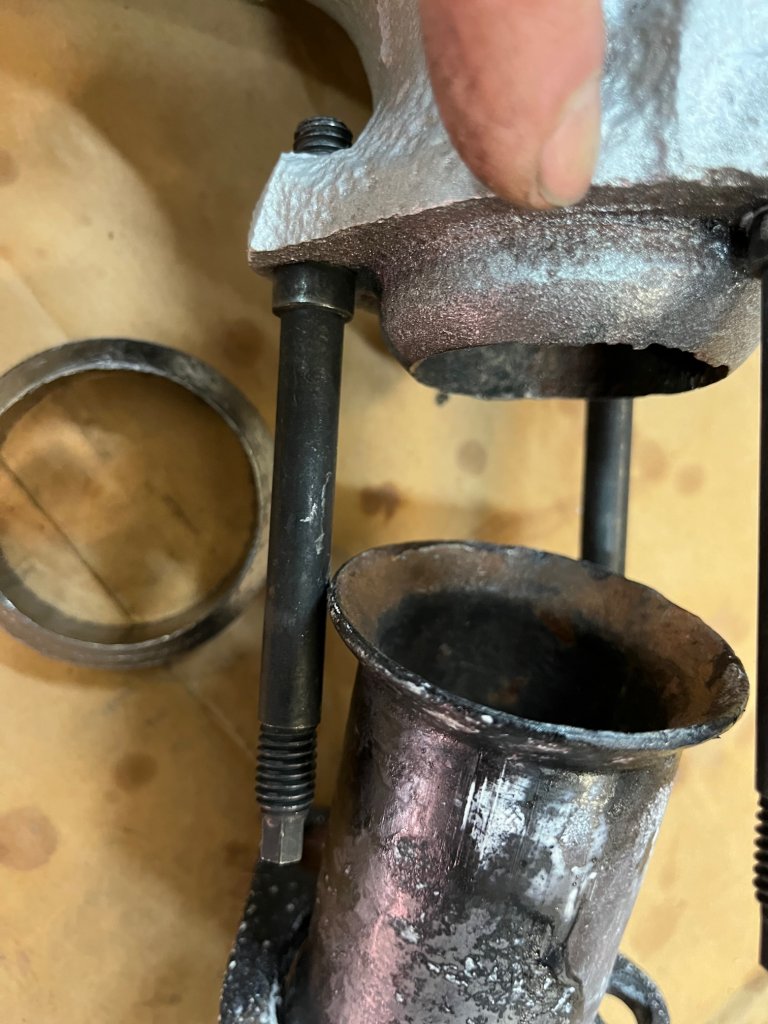

  • LH exhaust manifold to exhaust pipe.jpg
    LH exhaust manifold to exhaust pipe.jpg
    126.1 KB · Views: 77

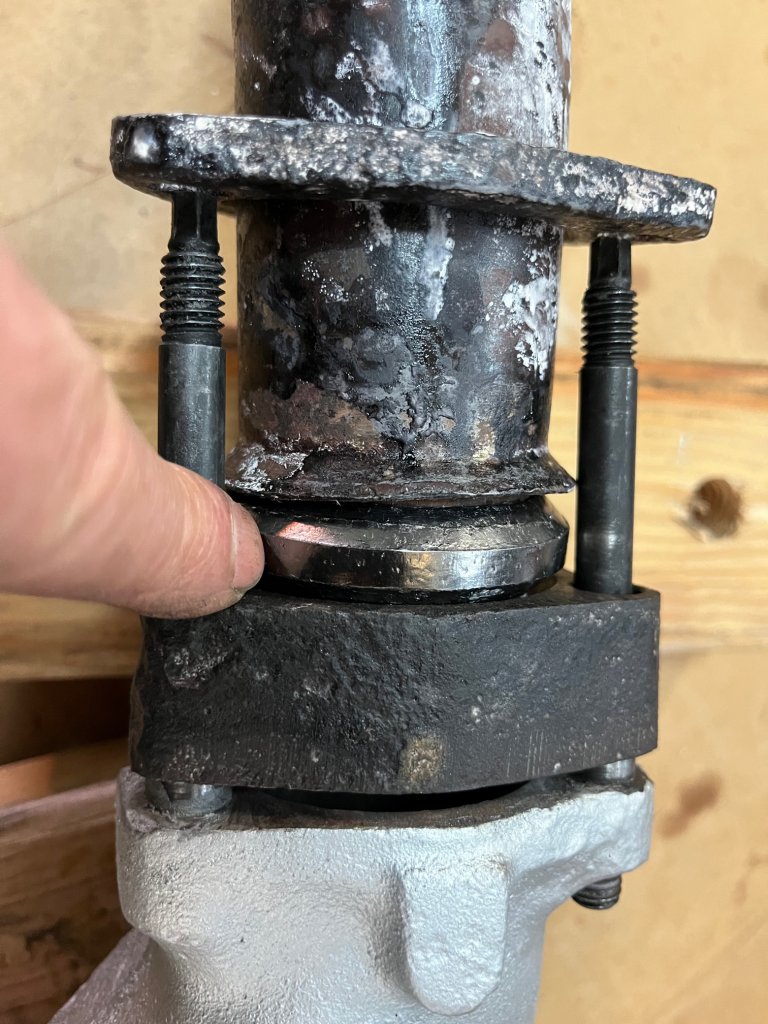

  • RH exhaust manifold to exhaust pipe.jpg
    RH exhaust manifold to exhaust pipe.jpg
    164.2 KB · Views: 73

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,438
Reaction score
28,342
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Addendum - pic of the Alan Grove bracket for alternator mounting when there is no bolt hole in the head. Stock bracket on the right, Alan Grove bracket on the left.

That's a nifty little bracket!

Exhaust manifold spreader? Is that also known as exhaust manifold cracker?

Man, that's a first for me after 50+ years of working on Chevy small blocks. I still learn something new almost every day.

To be fair, most of those manifolds crack themselves. Well, maybe not most... but a lot of them, lol.

Okay. The second question in my original post was poorly worded.

Here's the corrrected question. I have the two supposedly matched exhaust manifolds and y-pipe from a '76 to '80. When I look at the mount of the y-pipe to the RH manifold, everything lines up and the little "donut" fits between the two perfectly.

But on the left hand site, the exhaust manifold is domed outward. The dome fits in the receiving end of the y-pipe, but there is no place for the donut.

Is this correct? Would this cause exhaust leaks or excess noise?

I'm actually going to run duals, and SQUAREROOT has me thinking again about headers. Nonetheless, I ask the above question since I want to know how these work.

Thanks everyone for your great responses and for indulging me on this last question.

Pics attached.

The dome-to-flange should be correct. It's actually the other side that may be incorrect. Often the right side manifold will have a flat flange and long studs, so a heat riser will get sandwiched between the manifold and downpipe. The heat riser will have a flat surface to mount to the manifold and a dome surface to mate with the downpipe.

But a lot depends on the year and application. There were different connection types for similar manifolds.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,693
Reaction score
6,869
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
@AuroraGirl

Check this picture of the 327, (L-79?) No bolt holes.

You must be registered for see images attach
283 didnt either , the one i have only has an alternator. or rather, a 12 volt alt(10DN I Think?) on it and the long bracket. The ram horns I assume the driver side has the provision for the bottom, but i could be wrong. Cant remember off top of my head
You must be registered for see images attach


Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
3,125
Reaction score
7,254
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
Okay. The second question in my original post was poorly worded.

Here's the corrrected question. I have the two supposedly matched exhaust manifolds and y-pipe from a '76 to '80. When I look at the mount of the y-pipe to the RH manifold, everything lines up and the little "donut" fits between the two perfectly.

But on the left hand site, the exhaust manifold is domed outward. The dome fits in the receiving end of the y-pipe, but there is no place for the donut.

Is this correct? Would this cause exhaust leaks or excess noise?

I'm actually going to run duals, and SQUAREROOT has me thinking again about headers. Nonetheless, I ask the above question since I want to know how these work.

Thanks everyone for your great responses and for indulging me on this last question.

Pics attached.

The exhaust manifolds you pictured, the heat riser valve would be on the driver's side. The top of the heat riser would mount to the manifold with out a gasket (cast iron to cast iron). Then the bottom of the heat riser would have the donut gasket to the pipe.

283 didnt either , the one i have only has an alternator. or rather, a 12 volt alt(10DN I Think?) on it and the long bracket. The ram horns I assume the driver side has the provision for the bottom, but i could be wrong. Cant remember off top of my head
You must be registered for see images attach

Yes, all the early small block heads had just one or no threaded bolt holes.


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,693
Reaction score
6,869
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
Yes
Im guessing the one hole was for AC compressor or power steering provisions?(probably one or the other, but I guess I dont know)


AuroraGirl

Full Access Member
Joined
Sep 8, 2019
Posts
9,693
Reaction score
6,869
Location
Northern Wisconsin
First Name
Taylor
Truck Year
1978, 1980
Truck Model
K10, K25
Engine Size
400(?), 350
The exhaust manifolds you pictured, the heat riser valve would be on the driver's side. The top of the heat riser would mount to the manifold with out a gasket (cast iron to cast iron). Then the bottom of the heat riser would have the donut gasket to the pipe.



Yes, all the early small block heads had just one or no threaded bolt holes.
You must be registered for see images attach


Also did you mean the OPs manifolds? I appear to have the same ones(With AIR ports) but it has a passenger flapper for it. but the engine came out of a car, so thats in play


fast 99

Full Access Member
Joined
Dec 31, 2021
Posts
2,027
Reaction score
2,929
Location
Spokane, Washington
First Name
Brian
Truck Year
81,85
Truck Model
K20
Engine Size
350
Exhaust manifold spreader? Is that also known as exhaust manifold cracker?

Man, that's a first for me after 50+ years of working on Chevy small blocks. I still learn something new almost every day.
If the manifold breaks it was previously cracked. Never had that happen.


Powerhouse Ranch

3G Connoisseur
Joined
Jan 6, 2021
Posts
1,465
Reaction score
2,629
Location
PA
First Name
Luke
Truck Year
1980 & 1988
Truck Model
C25 & V15
Engine Size
454 & 350
What I did with mine, was bolt them on with the center 2 bolts, and ran the engine for a little while get them hot. 2 went in afterwards, 2 just took a little prying with a lug wrench to get the other 2.

i'm like beside myself hearing this. I'd have to see such a thing to believe it


AyWoSch Motors

The Parts Guy
Joined
Nov 6, 2020
Posts
4,690
Reaction score
13,692
Location
New Mexico
First Name
Ayden
Truck Year
1986
Truck Model
K1500 Sierra
Engine Size
350ci V8
i'm like beside myself hearing this. I'd have to see such a thing to believe it
Hahaha. Its true, i did do just that. But sorry, no video or pics.

Bolt the middle, get em hot, they pry with one hand, and try to slip the bolt in without crosstreading with the other.


fast 99

Full Access Member
Joined
Dec 31, 2021
Posts
2,027
Reaction score
2,929
Location
Spokane, Washington
First Name
Brian
Truck Year
81,85
Truck Model
K20
Engine Size
350
Exhaust manifold spreader? Is that also known as exhaust manifold cracker?

Man, that's a first for me after 50+ years of working on Chevy small blocks. I still learn something new almost every day.
If the manifold breaks when spread, it was already cracked. Saves time doing the job twice.

Don't expect anyone to go out and buy a one but I used a 9/16th frame reamer to enlarge the holes. Cast iron is a b**ch to drill.


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
6,970
Reaction score
12,220
Location
Auburn, Washington
First Name
Todd
Truck Year
1986, 1977
Truck Model
K20, C10
Engine Size
454, 350
i'm like beside myself hearing this. I'd have to see such a thing to believe it
Can confirm. Although I haven’t touched a sbc exhaust manifold since I was in high school I think, used a torch and a rosebud tip and some prying.
That’s most of the reason they crack in the first place I believe, trying to tear themselves apart while being pinned in place by the bolts.
