no electrical power
- Thread starter luna negra
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
RustyPile
Left on own accord
- Joined
- Oct 7, 2017
- Posts
- 901
- Reaction score
- 1,124
- Location
- Elkhart, TX
- First Name
- Nick
- Truck Year
- 1983 GMC
- Truck Model
- 1500
- Engine Size
- 350 SBC
Read post #2
F-64
Full Access Member
- Joined
- Jan 11, 2020
- Posts
- 118
- Reaction score
- 102
- Location
- nyc
- First Name
- mike
- Truck Year
- 1987
- Truck Model
- R10 lwb
- Engine Size
- 5.7 tbi stock
That area with 1.3v is an issue.
Is there a fuse along that wire?
A battery normally sits at 12.6v when fully charged.
I'll add more when I have a chance.. at work right now.
Which part of the fuse box was 1.3v?
That circuit where 1.3v was on. If you take your red probe and move it along that wire towards the battery, the point where your voltage goes back up to 12.6 (or close) is where your issue is. The issue is causing the large voltage drop.
Remember, the circuit must be on( key on) and connected.
Disconnected wires will give the wrong reading.
Is there a fuse along that wire?
A battery normally sits at 12.6v when fully charged.
I'll add more when I have a chance.. at work right now.
Which part of the fuse box was 1.3v?
That circuit where 1.3v was on. If you take your red probe and move it along that wire towards the battery, the point where your voltage goes back up to 12.6 (or close) is where your issue is. The issue is causing the large voltage drop.
Remember, the circuit must be on( key on) and connected.
Disconnected wires will give the wrong reading.
Last edited:
luna negra
Member
- Joined
- Jul 3, 2019
- Posts
- 37
- Reaction score
- 31
- Location
- central texas
- First Name
- luna
- Truck Year
- 1979
- Truck Model
- Jimmy
- Engine Size
- 350
Definitely not battery. Took a RV battery out my gate opener and same result - nothing. I'll start at the fuse panel next. All under dash wiring is a rat's nest from PO. A new Painless harness is looking nice but not for $550.
You must be registered for see images attach
ByrdDog
Member
- Joined
- Dec 4, 2023
- Posts
- 30
- Reaction score
- 43
- Location
- Amarillo TX
- First Name
- Robbie
- Truck Year
- 1979
- Truck Model
- Chevy
- Engine Size
- 6.2
I'd take a pass on painless wiring. I used one of their universal kits to re-wire my 60 F250 and you can tell they cheaped out on a lot of stuff. My brother-in-law did his 72 K5 with American Autowire & that kit is miles above painless. This is one area I would not go cheap on. Running down wiring issues is EXTREMELY frustrating! There are lots of wiring diagrams available here - Buy some primary wire of the correct colors off Amazon & starting troubleshooting & replacing as you go.
luna negra
Member
- Joined
- Jul 3, 2019
- Posts
- 37
- Reaction score
- 31
- Location
- central texas
- First Name
- luna
- Truck Year
- 1979
- Truck Model
- Jimmy
- Engine Size
- 350
Good to know re: harness. That would be a last resort and one I don't want to do.
Jgonick
Full Access Member
- Joined
- Jan 12, 2017
- Posts
- 328
- Reaction score
- 413
- Location
- West Texas
- First Name
- Joel
- Truck Year
- 1985
- Truck Model
- K10
- Engine Size
- 350

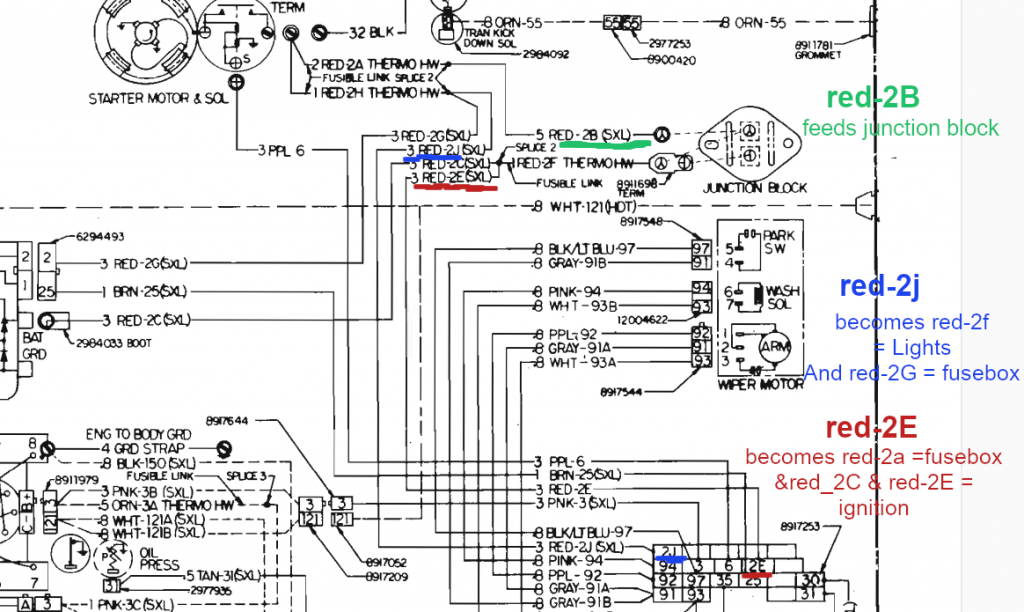

quick look at 79 wire diagram
I would check the voltage at junction block. If it has voltage, then look at red-2E and fusible link. That one feeds ignition (which feeds purple starter wire) It also feeds a portion of the fuse box. If no voltage at junction block check red-2B (&fusible link) at starter it feeds junction block. Red-2J at starter, feeds lights and portion of fuse box. See if your lights work.
before I begun -I might disconnect red wires from alternator - just to take it out of the loop.
Also- from your picture- it looks like you might be missing a fusible link at the starter on a pair of those wires.
I would check the voltage at junction block. If it has voltage, then look at red-2E and fusible link. That one feeds ignition (which feeds purple starter wire) It also feeds a portion of the fuse box. If no voltage at junction block check red-2B (&fusible link) at starter it feeds junction block. Red-2J at starter, feeds lights and portion of fuse box. See if your lights work.
before I begun -I might disconnect red wires from alternator - just to take it out of the loop.
Also- from your picture- it looks like you might be missing a fusible link at the starter on a pair of those wires.
Attachments
Last edited:
Corvette Ed
Full Access Member
- Joined
- Nov 29, 2020
- Posts
- 3,863
- Reaction score
- 14,653
- Location
- East Tennessee
- First Name
- Eli
- Truck Year
- 79
- Truck Model
- C10
- Engine Size
- 250
As stated before don’t overlook the grounds. Have you tried checking the voltage between the + battery terminal and a clean/ bare area on the block,frame and body? Good luck!
F-64
Full Access Member
- Joined
- Jan 11, 2020
- Posts
- 118
- Reaction score
- 102
- Location
- nyc
- First Name
- mike
- Truck Year
- 1987
- Truck Model
- R10 lwb
- Engine Size
- 5.7 tbi stock
You can check your grounds by turning your key on.
Meter DC V.
black probe on negative post.
red probe on engine block.
Reading should be as close to 0.0v as possible. Any higher than 0.5V then you have a marginal ground. The higher the voltage the worse it is.
This tests the quality of connection from the negative battery post to the engine block.
Move the red probe to a clean part of the frame( free of paint and rust).
Reading should be 0.0V.
Quality of connection from negative post to frame.
Move red probe to clean part of firewall.
Should be 0.0V as well.
Move the red probe to the negative battery clamp.
This will test the connection between the negative clamp and negative post. This will test for corrosion or loose connection at the negative clamp.
Should be 0.0V as well.
You can do the same on the positive side as well.
black probe on positive post
red probe on positive battery clamp.
Should be 0.0v.
Turn key off.
Meter DC V.
black probe on negative post.
red probe on engine block.
Reading should be as close to 0.0v as possible. Any higher than 0.5V then you have a marginal ground. The higher the voltage the worse it is.
This tests the quality of connection from the negative battery post to the engine block.
Move the red probe to a clean part of the frame( free of paint and rust).
Reading should be 0.0V.
Quality of connection from negative post to frame.
Move red probe to clean part of firewall.
Should be 0.0V as well.
Move the red probe to the negative battery clamp.
This will test the connection between the negative clamp and negative post. This will test for corrosion or loose connection at the negative clamp.
Should be 0.0V as well.
You can do the same on the positive side as well.
black probe on positive post
red probe on positive battery clamp.
Should be 0.0v.
Turn key off.
Last edited:
luna negra
Member
- Joined
- Jul 3, 2019
- Posts
- 37
- Reaction score
- 31
- Location
- central texas
- First Name
- luna
- Truck Year
- 1979
- Truck Model
- Jimmy
- Engine Size
- 350
Ok, I feel like an idiot now. New motor has an aluminum intake and the neg battery was grounded to the steel alternator bracket connected to that. I never checked ground with the key on but I got 11 V neg battery to engine when I did. Moved ground to the frame and it turned right over.
Last question - does it matter whether it's frame or engine grounded? Thanks for all the help on this. As you can tell, I need it.
Last question - does it matter whether it's frame or engine grounded? Thanks for all the help on this. As you can tell, I need it.
squaredeal91
Full Access Member
- Joined
- Mar 10, 2023
- Posts
- 2,593
- Reaction score
- 4,721
- Location
- Cave junction Oregon
- First Name
- Greg bush
- Truck Year
- 1991 SB
- Truck Model
- K30
- Engine Size
- 5.9 Cummins 12 valve
Best to go from battery to engine with the big cable I believe. Then from engine to cab and from battery negative terminal to fender. Can't have too many grounds.
RustyPile
Left on own accord
- Joined
- Oct 7, 2017
- Posts
- 901
- Reaction score
- 1,124
- Location
- Elkhart, TX
- First Name
- Nick
- Truck Year
- 1983 GMC
- Truck Model
- 1500
- Engine Size
- 350 SBC
The starter can surge upwards of 200 amps when it first engages.. In the 2 - 3 seconds before the engine actually "catches" the draw can be 150 - 180 amps.. The smaller ground straps grounding the engine to the body and frame cannot carry that much load.. The negative cable needs to be attached directly to the engine block and the best place is one of the bolts on the lower corner on the passenger side, very near the fuel pump.. Scrub the area around the hole down to bright metal with sandpaper. Apply a very small amount of grease to prevent rust. Don't use one of the exhaust manifold bolts as an attachment point. Rust and corrosion soon form and your problem returns.
F-64
Full Access Member
- Joined
- Jan 11, 2020
- Posts
- 118
- Reaction score
- 102
- Location
- nyc
- First Name
- mike
- Truck Year
- 1987
- Truck Model
- R10 lwb
- Engine Size
- 5.7 tbi stock

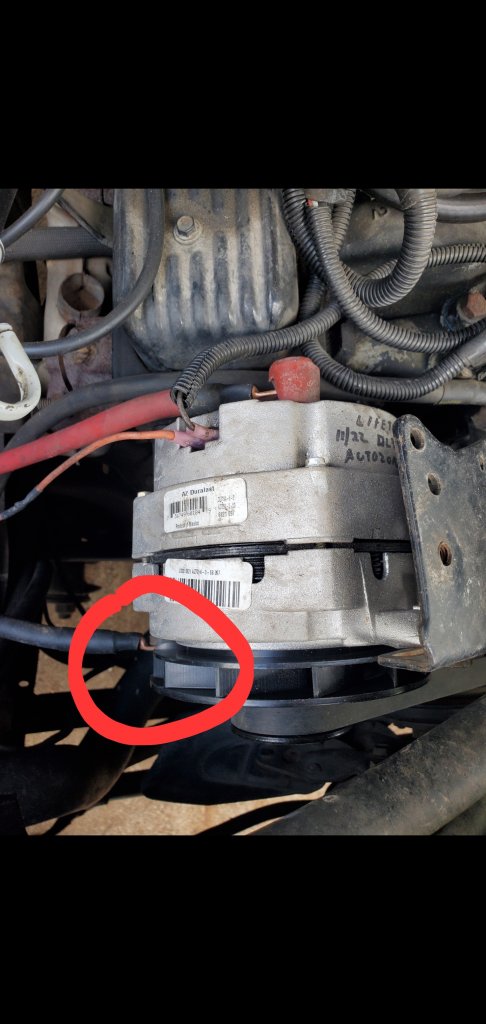

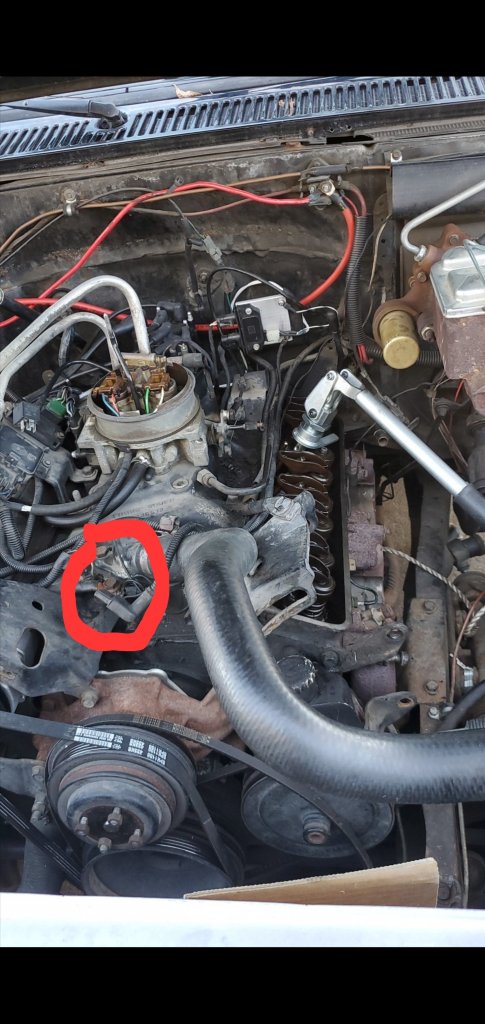

I ran 3 ground cables from the battery. All 3 awg. One to the intake manifold near the thermostat. One to the frame near the battery and one to the long alternator bolt. I need to run another to the firewall.
I also ran a 3 awg positive cable to the starter.
I was tired of a slow starter and marginal alternator charging at idle.
I also ran a 3 awg positive cable to the starter.
I was tired of a slow starter and marginal alternator charging at idle.
Attachments
Last edited:
Corvette Ed
Full Access Member
- Joined
- Nov 29, 2020
- Posts
- 3,863
- Reaction score
- 14,653
- Location
- East Tennessee
- First Name
- Eli
- Truck Year
- 79
- Truck Model
- C10
- Engine Size
- 250
Glad you got it figured out.
