I do agree with Rusty pile, rewire after the original scheme, right color coding, just follow the original scheme - wire by wire. I did that on my truck 10 years ago, and no problem at all since.

Question: Where to buy fusible links?


Attachments

  • My truck.gif
    My truck.gif
    365.5 KB · Views: 39
  • My truck.jpg
    My truck.jpg
    149.6 KB · Views: 40

Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
299
Reaction score
377
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350
Most auto stores- rockauto.com has big selection

or you can buy fusible link wire and make your own.

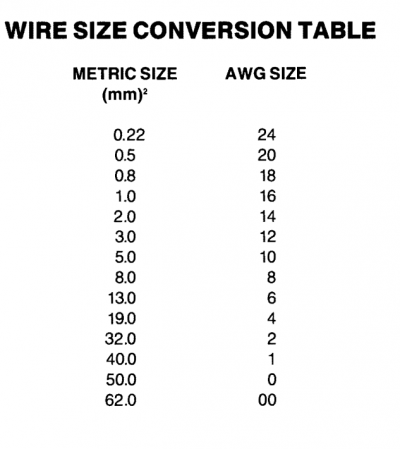

Fusible links are usually 4 gage sizes smaller than circuit it is protecting.

example: 10 awg circuit would have a 14 awg fusible link


Attachments

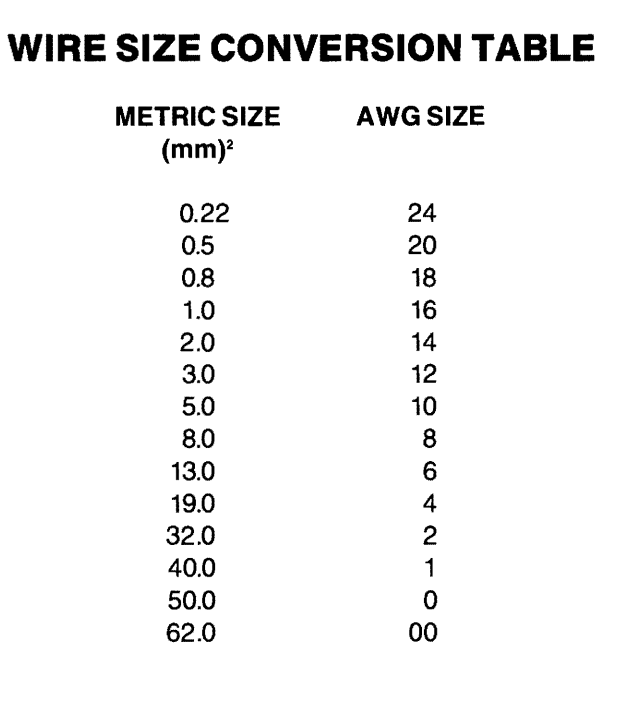

  • wire_size.png
    52.8 KB · Views: 37
Last edited:

BadBowtie

Full Access Member
Joined
Mar 4, 2023
Posts
185
Reaction score
224
Location
North Texas
First Name
Jon
Truck Year
1984
Truck Model
Chevrolet
Engine Size
5.0L
Not a shunt, just a buss bar connecting link. My question, why would you want to remove what every square truck has? If you want to add any new fused accessories, this is an easy place to connect them.
Where does the wire on the left of this junction block go?? Starter lug? Alternator??


Turbo4whl

Supporting Member
Supporting Member
Joined
Oct 30, 2019
Posts
3,126
Reaction score
7,257
Location
Downingtown, PA
First Name
Wayne
Truck Year
1974
Truck Model
Jimmy
Engine Size
350
Where does the wire on the left of this junction block go?? Starter lug? Alternator??
That wire goes to the starter/battery positive cable. It also has a fuseable link and if the truck is still original from the starter that wire goes into the metal tube bolted to the bell housing. That tube protects all the small wires to the starter from the heat of the passenger side exhaust manifold.

@Jgonick s' picture on post #8 shows there are 2 fuseable links going through that tube.


Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
299
Reaction score
377
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350

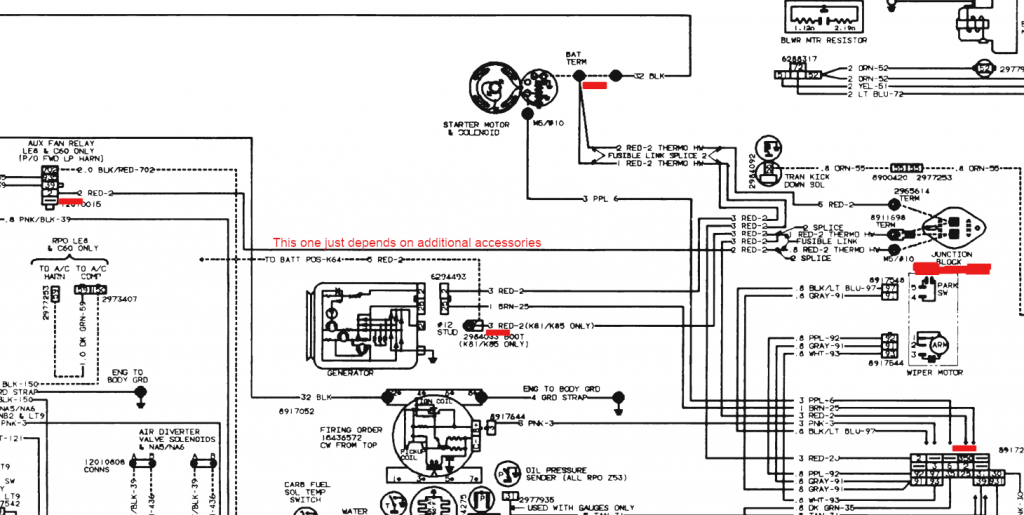

This Image will allow you to trace all the red wires off the junction block. But it depends on the year etc.. most are very similar though. This diagram is from an 86.


Attachments

  • 1986_2.png
    329.4 KB · Views: 51
Last edited:

sidschev

Full Access Member
Joined
Oct 2, 2023
Posts
286
Reaction score
510
Location
Arkansas
First Name
sidney
Truck Year
1984
Truck Model
c1500
Engine Size
350
er what image ???


SquareRoot

Full Access Member
Joined
Mar 18, 2017
Posts
4,192
Reaction score
8,030
Location
Arizona
First Name
Mike
Truck Year
85
Truck Model
K20
Engine Size
350
"It seemed like a good idea at the time". :popcorn:


Jgonick

Full Access Member
Joined
Jan 12, 2017
Posts
299
Reaction score
377
Location
West Texas
First Name
Joel
Truck Year
1985
Truck Model
K10
Engine Size
350
yeah, I got side tracked trying to remember where one of the red wires off my junction block ran to. Finally had to go look- Went to the A/C blower relay. :rolleyes:
As mentioned earlier the junction block is there to make it easy to add accessories. A few other possible ones could be auxiliary fan, auxiliary battery, camper equipment, heavy duty trailer. etc..
