Im going to pretend I am you and demonstrate how I order parts.

Are the performance gains these metal shim head gaskets provide worth the possibility I might be pulling heads off a fresh engine?

Im pulling these heads of cause these are really bad smogg heads. And im gonan stick my vortecs on it when i get them back. With the cam i plan on running i want a pretty good flowing Int/exh system. And I feel i have that covered since it will be a 650 holley on top of a Edie Performer Intake mounted to the vortecs, then from the vortecs its gonna dump into 1" 5/8 Headers that run into true 3" glasspacks then run thrue 3" pipe that slightly bends so it comes out in front of the back tires.

Basically what this engine is to me is a short block.


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
Went and talked to my machinest, without the positive seals my heads are max of .685 lift, so what we are doing is, we are going to unbrella seals which are .150 thick on top, so we are taking .150 off of the guide and cutting the guide support down flush. So my heads will be capable of .625 safe lift, and at that theres .060 slack.

Not to shabby.


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
Well i got my heads back today from my machine shop, and i had him check the installed height of my springs real quick. Well the installed height is 1.67". And the bind height of my springs are 1.17". So that left for .500" play. And my cam is 489/504 lift. So im gonna pick up another set of springs from speedway here this next week or so that bind at 1.1 giving me .570".

It pays to double check lol, that would have been an un-pleasent noise.


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
The heads are on and torqued down.


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
Well today i got my cam and timing set ordered, should be here late this week to early next week.
Also, I threw a stock converter in the th350 so i can drive it while saving up for a higher stall converter.

And today i was also working on re-sleeveing alot of the engine wireing and removing the computer ****.

Last edited:

Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear

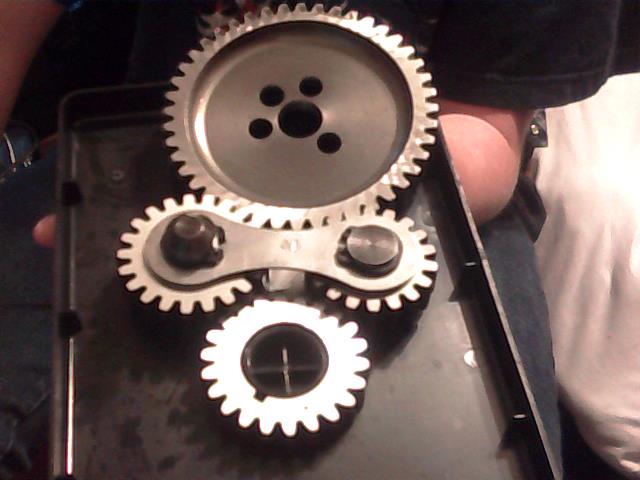

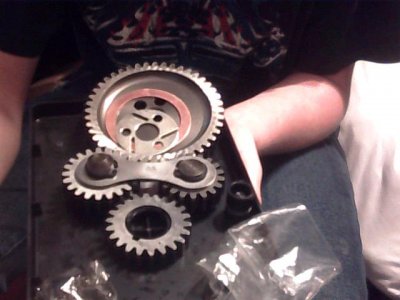

Some speed parts arived yesterday.


Attachments

  • 2014-04-13_02-01-46-PM.jpg
    36.4 KB · Views: 157
  • 2014-04-13_02-02-13-PM.jpg
    37 KB · Views: 131

Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear

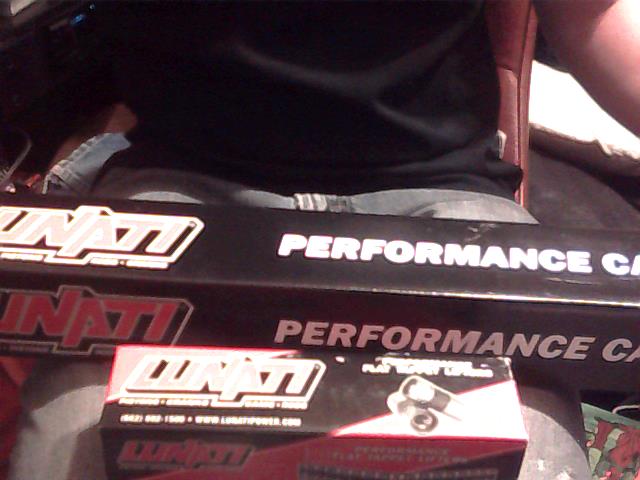

Lookie what santa in the white truck brought me today.
And it came with a cool shirt lol.
the second picture is the front, the third picture is the back.

And the box isnt faded, the light just washed out alot of the color.


Attachments

  • 2014-04-14_08-40-41-PM.jpg
    40.6 KB · Views: 155
  • 2014-04-14_08-43-00-PM.jpg
    35.1 KB · Views: 141
  • 2014-04-14_08-43-37-PM.jpg
    34.3 KB · Views: 153
Last edited:

Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear

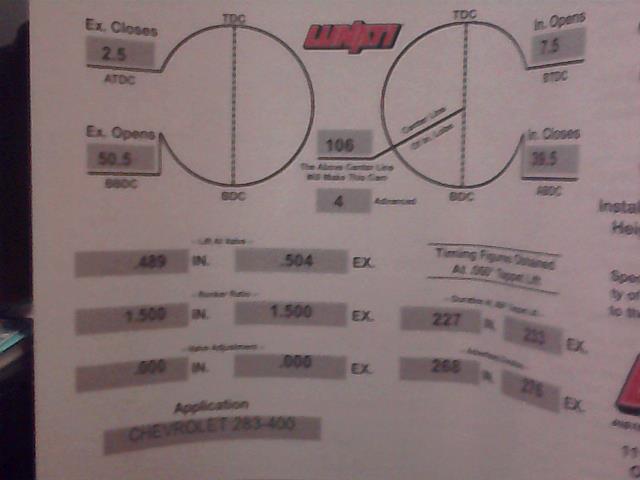

And the Cam Card


Attachments

  • 2014-04-14_08-48-42-PM.jpg
    26 KB · Views: 129

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,128
Reaction score
9,299
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear

SlickGTP

Full Access Member
Joined
Feb 24, 2011
Posts
785
Reaction score
112
Location
Houston, TX
First Name
John
Truck Year
1973
Truck Model
C10
Engine Size
454
Lookie what santa in the white truck brought me today.
And it came with a cool shirt lol.
the second picture is the front, the third picture is the back.

And the box isnt faded, the light just washed out alot of the color.

I've got that shirt! :waytogo:


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
I've got that shirt! :waytogo:

Ive fallen in love with this shirt lol, its just Badass looking on the back.
The only bad thing is they sent me 1 size to small XD i wear a large and they sent me a medium, but im thinking if i wash it cold it shouldnt really shrink. As of right now it fits me perfect.


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,396
Reaction score
28,178
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
So are we going to talk about clothes and washing techniques or is stuff going to get bolted together?


Driver4r

Full Access Member
Joined
Jun 21, 2012
Posts
3,087
Reaction score
40
Location
Nebraska
First Name
Trevor
Truck Year
76,74
Truck Model
k10,c20
Engine Size
355/th350/np203, 454/th350/ff-rear
As Bucket requested, i have more progress!!!!!
The valvetrain is all together now, from the timing to the valves.
And I have a **** ton of pictures to add now :)


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,128
Reaction score
9,299
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
And again, all talk and ********. Where's the pics???
