Bed cover build with/power lock

[Hoodbj]

Then I drilled a hole through the bed and cab to get the wire into the cab. I went ahead and removed the seats to get the wire under the carpet easier. After running it under the carpet I tied the two wires into the same colored wires under the dash as the actuator. One wire is tan and the other is gray. (One is lock and the other is unlock but don't remember which is which)



[Hoodbj]

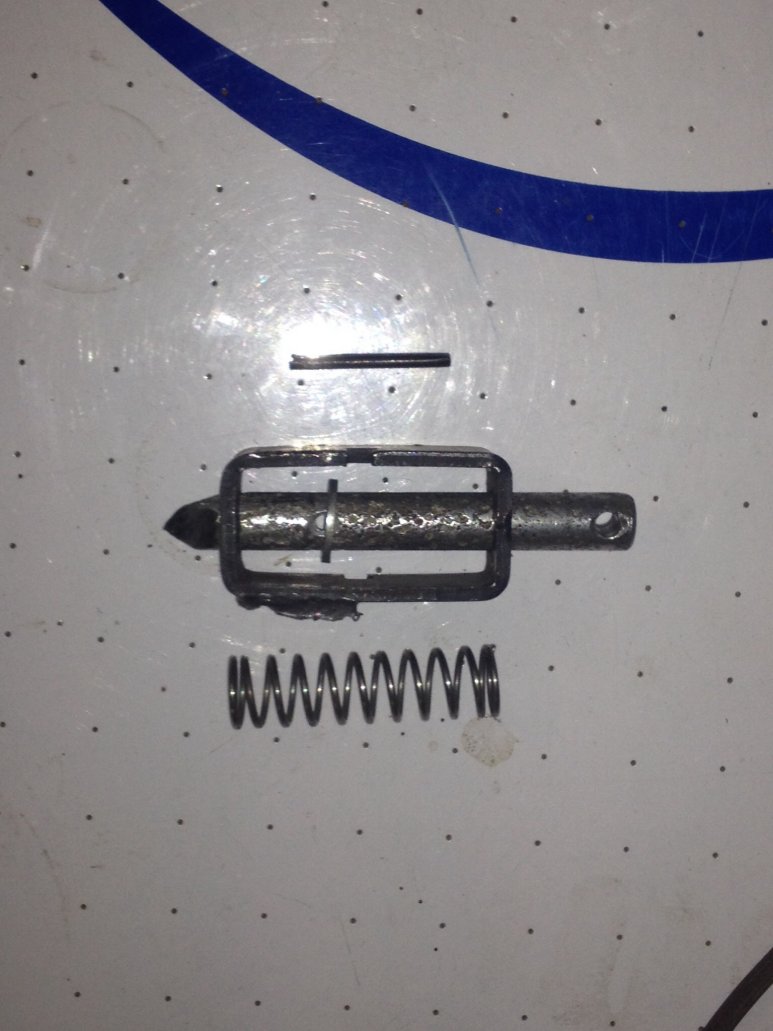

Next I took the spring out of a spring latch I had bought. This now is what the actuator moves in and out to lock/unlock.



[Hoodbj]

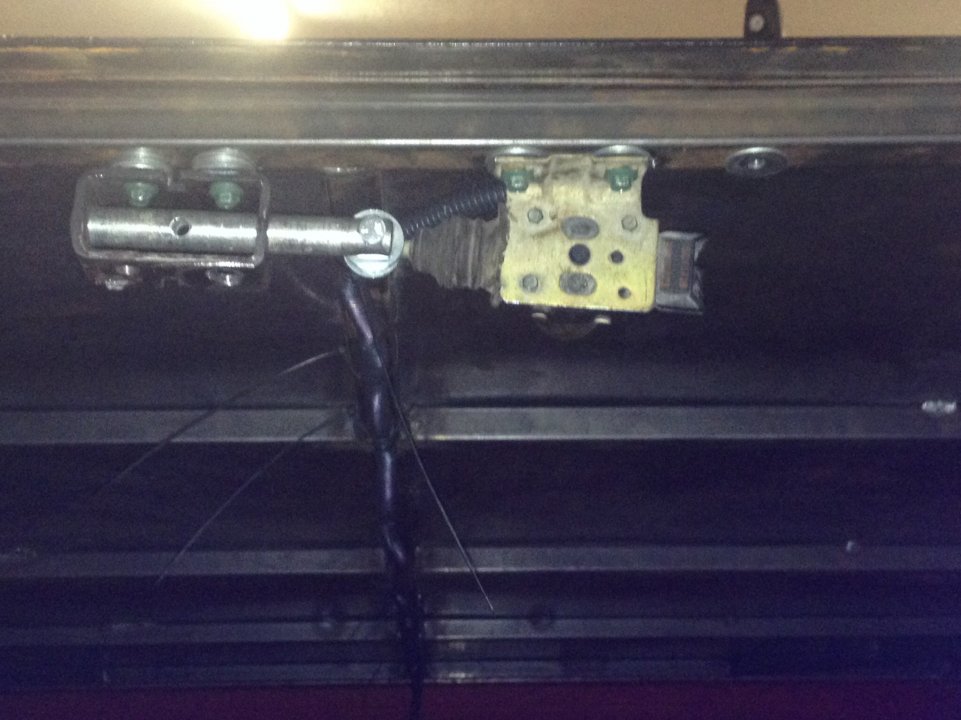

Then I put a bolt through the hole in the end of the actuator and the end of the latch to connect the two. I then screwed the latch to the bedcover with self drillers .



[Hoodbj]

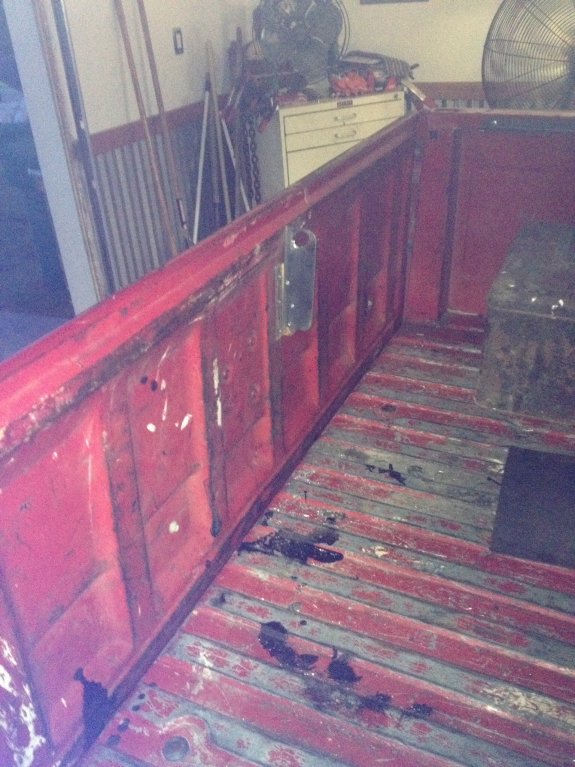

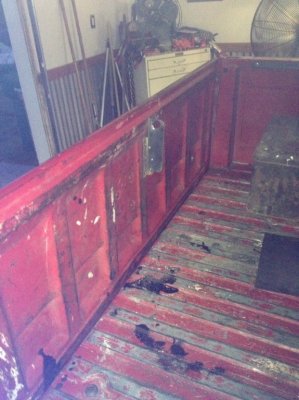

Next I built something for the latch to slide into. I used a piece of 1 inch angle and a piece of 2 inch flatbar. I connected the two together with rivets and riveted the piece to the tailgate. Trying to figure out exactly where this needs to be is a little tricky since this piece has to close against the latch accurately.



[Hoodbj]

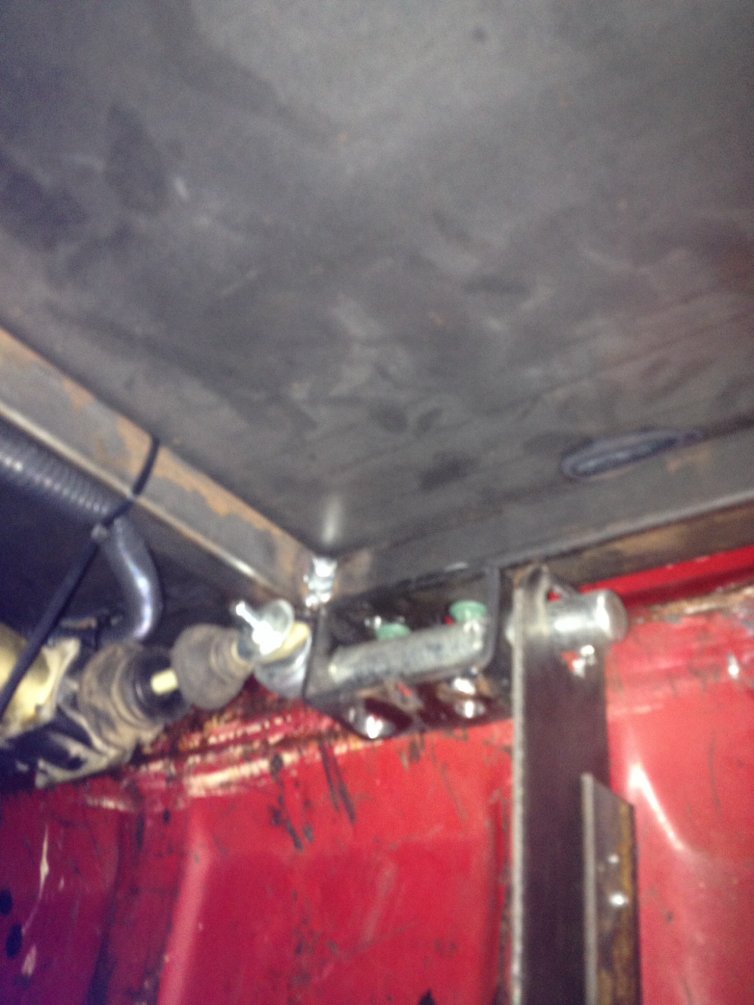

Here's a couple of pics of the it locked and unlocked. They're a little close since I had to climb in the bed and shut the bedcover. Here's a pic of it locked .



[Hoodbj]

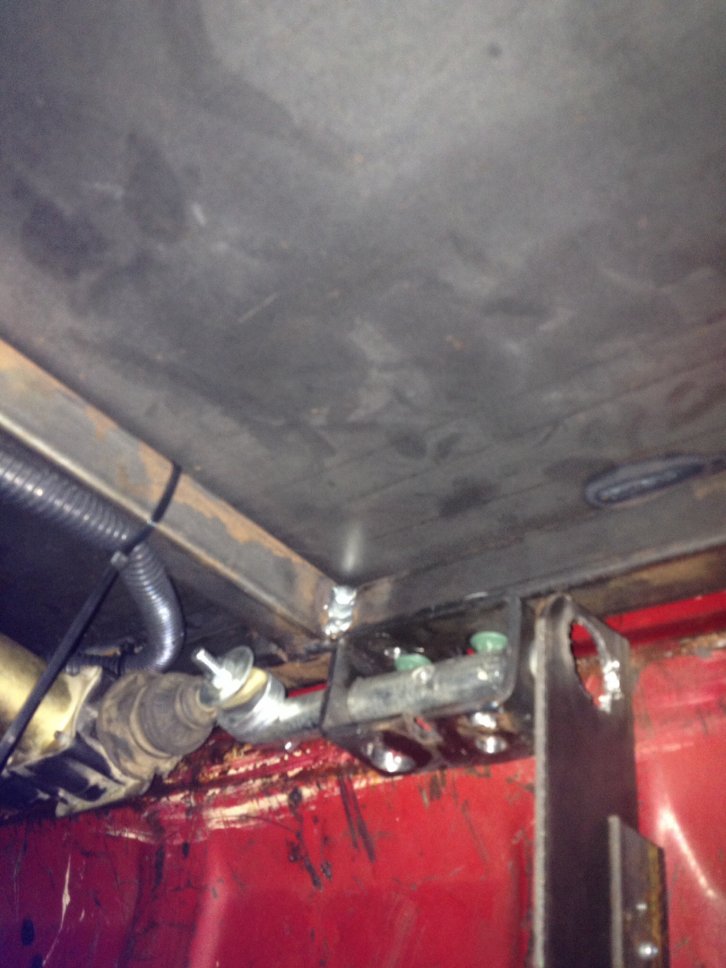

And unlocked.



[Hoodbj]
