Yeah, I need to get over there and get on that. Just seems like no matter what we do, it doesn't want to get the back brakes to work.


raylanr

Full Access Member
Joined
Feb 6, 2012
Posts
566
Reaction score
9
Location
Campeche, MEX
First Name
Franc
Truck Year
1973
Truck Model
C10
Engine Size
454
Does it have a rear load sensing valve? Look at the diff and see if it has a small arm connected to what looks like a prop valve with brake lines running to it. I'll bet if it has one, it's failed.

Okay, I will do that later this afternoon, thanks!


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,132
Reaction score
9,327
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

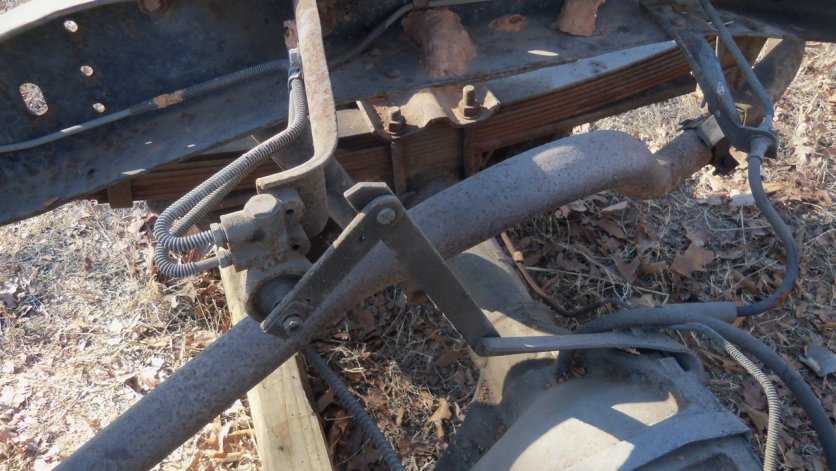

Yep, I was gonna say, the load leveling valve is on 84-88 3/4 and 1 tons. Bypass that ****. It's legal to do so, and GM even reccomends it. Chegny I think it was posted a TSB about that.


Attachments

  • zzTeardown85C20 063a.jpg
    zzTeardown85C20 063a.jpg
    102.5 KB · Views: 139

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,132
Reaction score
9,327
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

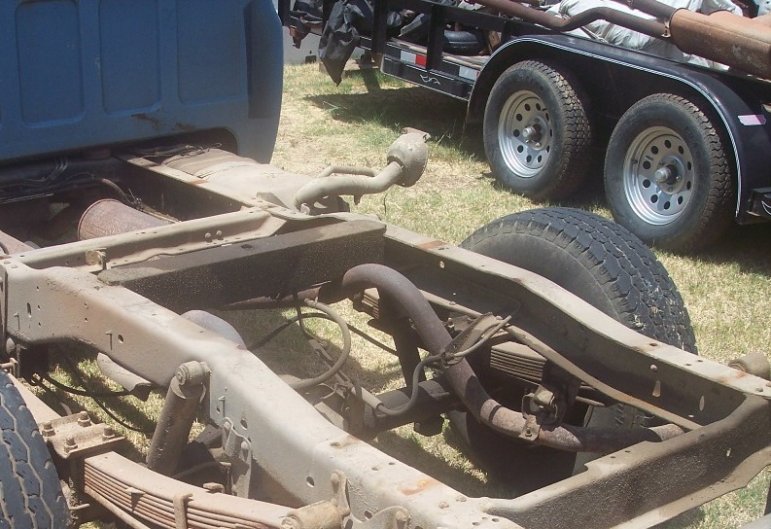

It appears not ALL 84-88 got that load sensing arm. My 86 C20 didn't get it.


Attachments

  • 84bedchange 007c.jpg
    84bedchange 007c.jpg
    98.9 KB · Views: 112

raylanr

Full Access Member
Joined
Feb 6, 2012
Posts
566
Reaction score
9
Location
Campeche, MEX
First Name
Franc
Truck Year
1973
Truck Model
C10
Engine Size
454
Yep, I was gonna say, the load leveling valve is on 84-88 3/4 and 1 tons. Bypass that ****. It's legal to do so, and GM even reccomends it. Chegny I think it was posted a TSB about that.

Okay I see 2 pair of lines, the rubber ones and the hard lines. which ones are the ones I need to look for.

Edit: I should have look at the C20 picture too...


robert8096

Full Access Member
Joined
Mar 27, 2011
Posts
878
Reaction score
57
Location
Goose Creek SC
First Name
Robert
Truck Year
1986
Truck Model
c10
Engine Size
350
Got the engine and trans back in and running.

You must be registered for see images attach


Finished the rear flip.

You must be registered for see images attach


Got to replace the master cylinder and bleed the brakes so I can move it outside for better pics. Complete rewire and Dakota VHX gauge install up next.


foamypirate

Full Access Member
Joined
Jul 30, 2010
Posts
3,302
Reaction score
457
Location
Central TX
First Name
Jake (Mr. Wilson)
Truck Year
1980
Truck Model
El Camino, baby!
Engine Size
5.3L/4L60E
Okay I see 2 pair of lines, the rubber ones and the hard lines. which ones are the ones I need to look for.

Edit: I should have look at the C20 picture too...

You'll be looking for the hard lines. There should be a hard line coming off the frame that runs over to the load sensing valve, and then another hard line off of that that runs over to the rubber hose on the diff.


foamypirate

Full Access Member
Joined
Jul 30, 2010
Posts
3,302
Reaction score
457
Location
Central TX
First Name
Jake (Mr. Wilson)
Truck Year
1980
Truck Model
El Camino, baby!
Engine Size
5.3L/4L60E
Got the engine and trans back in and running.

You must be registered for see images attach


Finished the rear flip.

You must be registered for see images attach


Got to replace the master cylinder and bleed the brakes so I can move it outside for better pics. Complete rewire and Dakota VHX gauge install up next.

Wow, that looks immaculate! Very nice job!


raylanr

Full Access Member
Joined
Feb 6, 2012
Posts
566
Reaction score
9
Location
Campeche, MEX
First Name
Franc
Truck Year
1973
Truck Model
C10
Engine Size
454

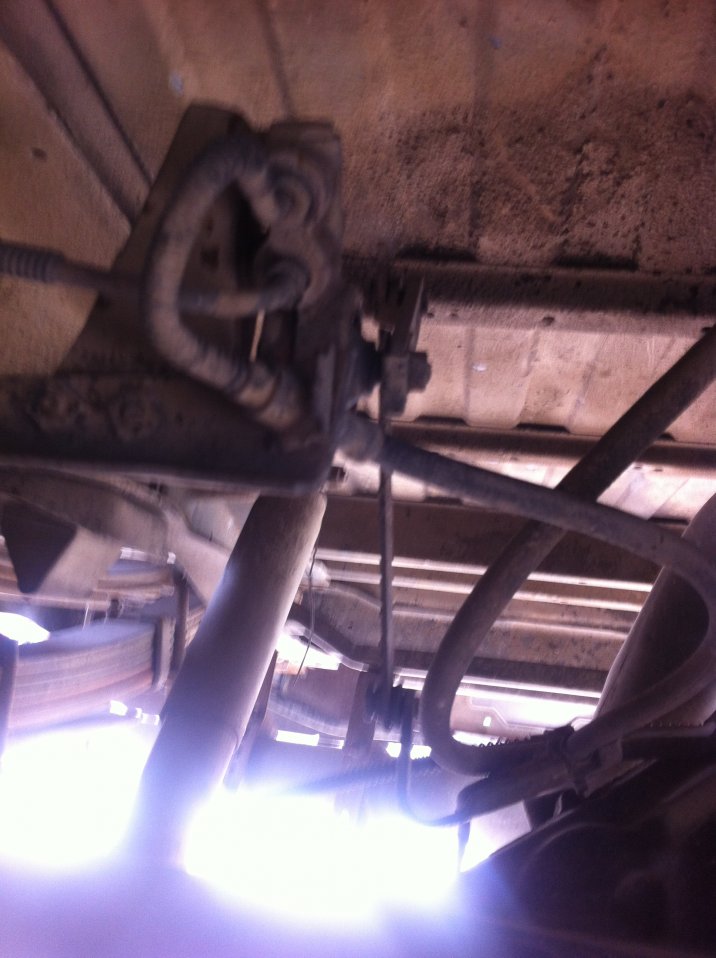

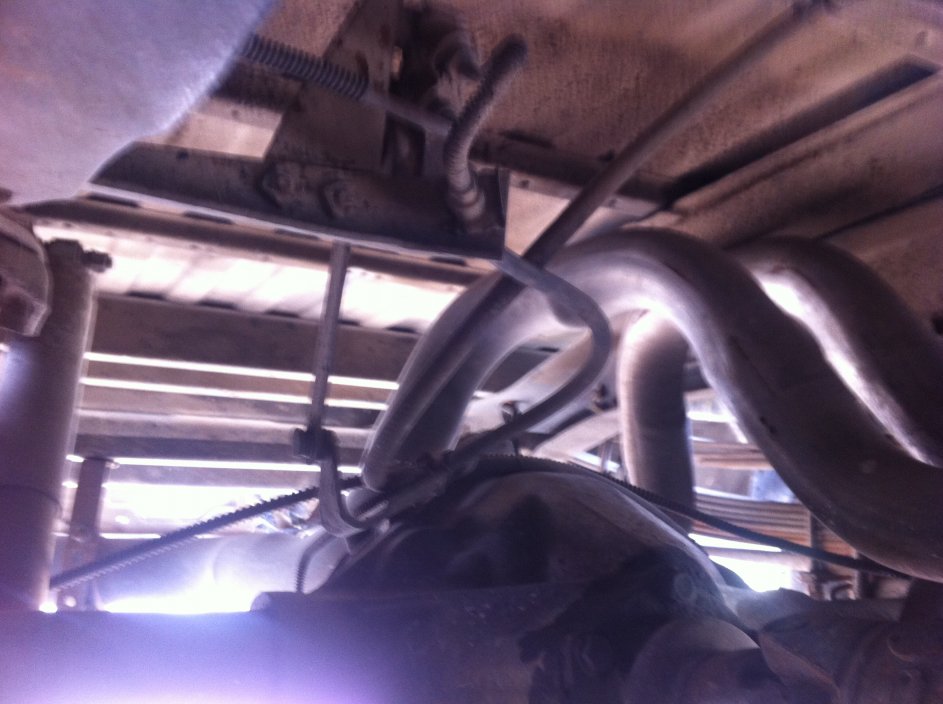

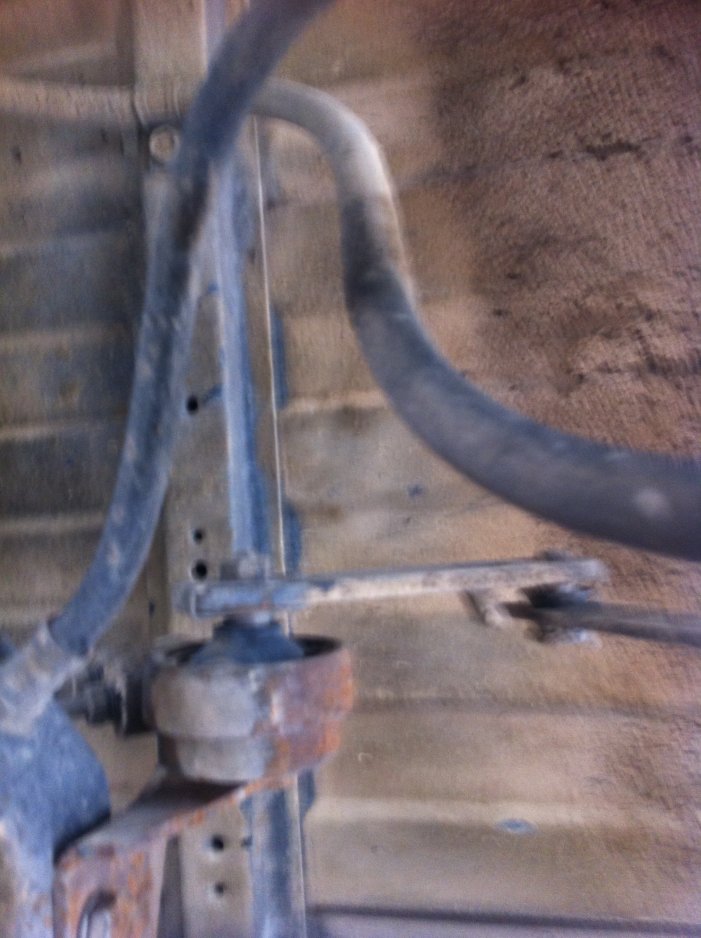

Well it looks like I have one.
