Agree on wire/components, but most of stock alternators in these trucks can't support the load. I tried to add 10 amp additional draw to charge some batteries while on a trip and the alternator just about took a dump. This is with suburban at night with front/rear ac on. Alternator should be upgraded first. Led light would be nice too. Also, to free up some power sanden ac compressor is a good upgrade over old r4. Twice the efficency. And brackets from vintage are $75. If you get the flx7, factory hoses will work.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Got it, thanks.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Replaced the fan clutch today with a Hayden severe duty version, and replaced the radiator hose with a version that comes straight forward, and clears the fan blades much better (Dayco 71422 - $11 at RockAuto).

You must be registered for see images attach


This is how the other hose fit.
You must be registered for see images attach

Last edited:

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,291
Reaction score
3,335
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
think i have it nailed down now with a 80 amp continuous duty relay

Any specs/numbers on the relay? Thanks M8. Don't wanna buy the cheap shart and regret it. Me and overheating have met too often in my lifetime to risk it.


NOPHO84K30

Full Access Member
Joined
Feb 28, 2013
Posts
482
Reaction score
103
Location
north phoenix
First Name
justin
Truck Year
1984 silverado k30
Truck Model
K30 dana 60 corp14 ff
Engine Size
454 sm465 np205
Any specs/numbers on the relay? Thanks M8. Don't wanna buy the cheap shart and regret it. Me and overheating have met too often in my lifetime to risk it.

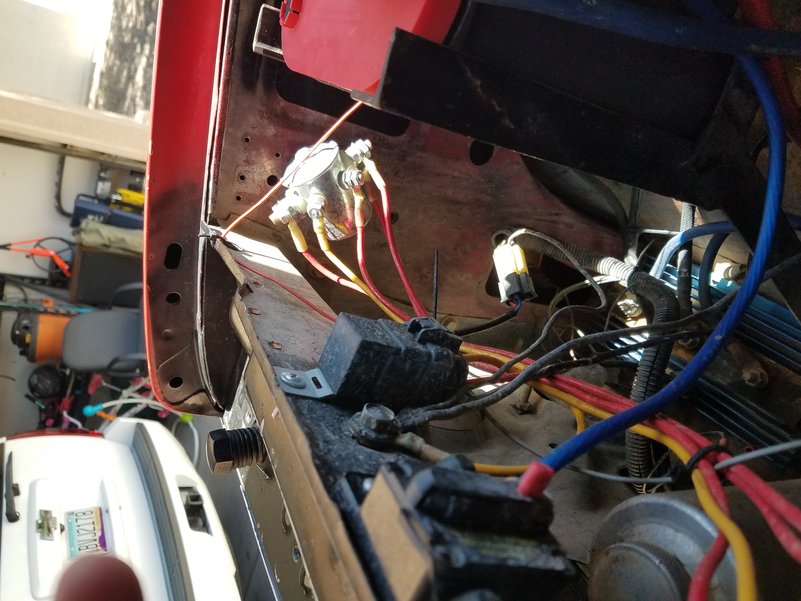

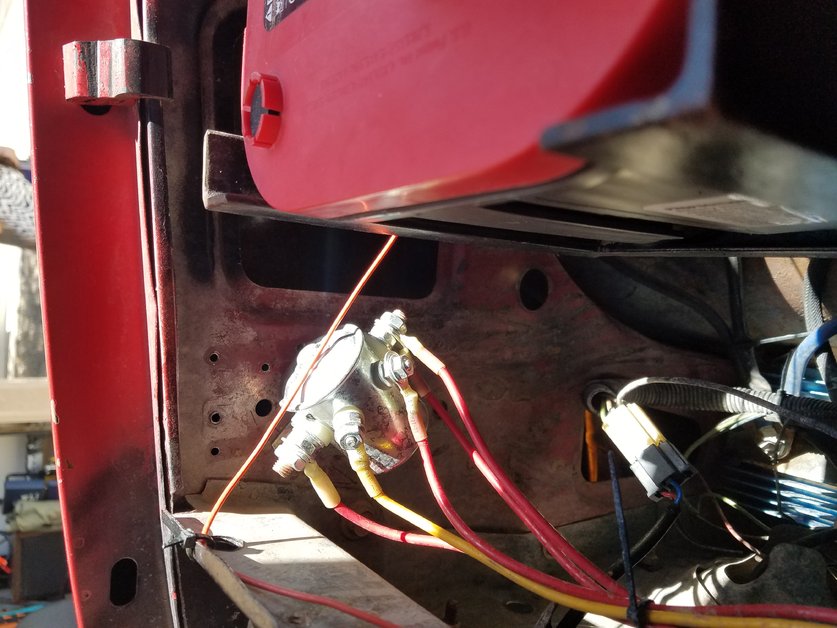

Its a spal fan controller that closes the relay at 185 . Now the constant 80 amp relay was just one they had there im sure its just a cheap one its all powered through a 100 a . Now that i have it it does take longer to get it under 175 it ran at 200 before i was told they iv454 ran hotter because it would burn more fuel efficiency idk if tgat was true or not. But it runs fine for now. we will see this summer at 115' in the shade. Lol


Attachments

  • 20170415_121331.jpg
    97.3 KB · Views: 344
  • 20170415_121325.jpg
    95.8 KB · Views: 328

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,291
Reaction score
3,335
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Thanks


VaughnAK

Junior Member
Joined
Jan 5, 2020
Posts
3
Reaction score
2
Location
Anchorage, AK
First Name
Vaughn
Truck Year
1986
Truck Model
K20
Engine Size
Big Block, NV4500, NP205, 14 Bolt Full Floater, 10 Bolt Front, 4.10s
austinado16, thanks for the write up. This post has inspired me to upgrade the radiator in my truck.

I am converting a 1986 K20 to a big block. Once I got the engine and radiator installed, I found that the fan shroud for the 350 was too long to fit. My truck came from the factory with the 17" tall by 28" wide radiator; this radiator was never offered with a big block as far as I know. So if I want a functional fan shroud, I guess I'm buying a bigger radiator. Because of this post, I now know I can go all the way to the 19" tall by 34" wide radiator. I've been rounding up the parts to make this happen.

I'm sorry to see that your water pump shaft broke and took out your radiator. I like your idea of ditching the fan spacer and adding some metal flashing to the shroud to get the fan back inside the shroud. Did you ever add the flashing?

For what it's worth, GM made a reverse rotation, 20" wide, 9 blade, symmetrical fan under GM part number 15021599/ AC Delco Part number 15-80729. This fan fits inside the diesel fan shroud for the 34" wide radiator. It fits the Napa TEM 271302/Hayden 2784 big block severe duty fan clutch perfectly. These fans are getting hard to find new, but there might be another one or two out there.
You must be registered for see images attach


You must be registered for see images attach


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Sorry for the delayed response. Been wrapped up in life for a couple years I guess.

The license plate steps are probably no longer made, but they used to come up on ebay fairly regularly. I haven't needed or looked for one in years, so I don't know if they're still easy to find.

Regarding my fan shroud being too far away from my fan. YES, I finally did get around to installing a sheet metal band, to take up the gap. I met a guy who works for a local plumbing and heating place and he does all their custom duct work. I gave him the measurements and he made a nice one out of stainless. It bolts to the shroud. It's been on about 2 years now I think. I'm very happy with how the entire modification turned out, it works great, and I've put a lot of miles on it in the heat of the central CA valley, and towing in the heat and grades of the Sierras to the east of the valley (Kings Canyon and Sequoia Nat'l Parks).

I really like that 9 blade 454 fan a lot. Looks like it was used on Suburbans from '97-2000? It would be interesting to know which pulls more air, that bad-boy, or the 454 version with the giant paddles that I've installed. It was so hot coming back from Bakersfield last weekend on the freeway, that my fan clutch was engaging! It was kinda cool to listen to it start to come on, start making some extra noise, but not go to full lock and roar mode, and then cycle back off after a while. Outside temps were probably near 110*F. I was running both air conditioners...of course

Last edited:

COK20

Junior Member
Joined
Jul 12, 2020
Posts
4
Reaction score
8
Location
Castle Rock, CO
First Name
Steve
Truck Year
1982
Truck Model
K20
Engine Size
383
Nice write up. That thing is wide.


Bextreme04

Full Access Member
Joined
May 13, 2019
Posts
4,436
Reaction score
5,564
Location
Oregon
First Name
Eric
Truck Year
1980
Truck Model
K25
Engine Size
350-4bbl
Sorry for the delayed response. Been wrapped up in life for a couple years I guess.

The license plate steps are probably no longer made, but they used to come up on ebay fairly regularly. I haven't needed or looked for one in years, so I don't know if they're still easy to find.

Regarding my fan shroud being too far away from my fan. YES, I finally did get around to installing a sheet metal band, to take up the gap. I met a guy who works for a local plumbing and heating place and he does all their custom duct work. I gave him the measurements and he made a nice one out of stainless. It bolts to the shroud. It's been on about 2 years now I think. I'm very happy with how the entire modification turned out, it works great, and I've put a lot of miles on it in the heat of the central CA valley, and towing in the heat and grades of the Sierras to the east of the valley (Kings Canyon and Sequoia Nat'l Parks).

I really like that 9 blade 454 fan a lot. Looks like it was used on Suburbans from '97-2000? It would be interesting to know which pulls more air, that bad-boy, or the 454 version with the giant paddles that I've installed. It was so hot coming back from Bakersfield last weekend on the freeway, that my fan clutch was engaging! It was kinda cool to listen to it start to come on, start making some extra noise, but not go to full lock and roar mode, and then cycle back off after a while. Outside temps were probably near 110*F. I was running both air conditioners...of course
I have one of those fans and the clutch... it came on my 1997 K2500 suburban donor truck with the Vortec 454. I’m ditching the clutch and fan for dual electric fans.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Let me know if you'd like to sell the fan and clutch.


Vbb199

B-rate Hillbilly Customs
Joined
Jan 12, 2018
Posts
9,003
Reaction score
15,256
Location
Salisbury NC
First Name
Vince
Truck Year
89, 79
Truck Model
89 Suburban R1500, 79 C10
Engine Size
350, 502
Good writeup here @austinado16

Gives me idea for both my k5 with a 502 and my burb with a small block.

In the k5 I'm currently running just a 4 core 2500 radiator with a flex fan, engine stays around 208° just sitting and running for 30 minutes @ 9° BTDC.
I suspect when I turn it closer to 7, maybe 6, might start having cooling issues then.

Especially once I start pumping hot transmission fluid thru it from the sheer weight of the truck.

Although I am running efi, which leans and richens the AFR to keep Temps at the coolest it can.

I heard about windstar fans and lots of other options... Now I have more things to consider.


As for the burb, it's just a higher compression high output 350.
It was once a HD radiator truck with external oil cooler, now it's an aluminum radiator truck.
It never gets above 210 unless the thermostat decides to get stuck randomly, but generally on a hot summer day, running the AC, the truck may climb to 190.
I like to stay at 160, where it almost always runs at under normal outside conditions with no AC.

Having said all this, I got some things to think about to keep both trucks cool.
