Upgrade: Installing the longer 2WD 3/4 ton 454 radiator

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

1low4x4

Full Access Member
Joined
Feb 14, 2011
Posts
2,409
Reaction score
716
Location
Texas
First Name
Nick
Truck Year
1984
Truck Model
K10
Engine Size
5.7
I too have that same radiator. Even before I installed electric fans, the engine never rose in temp. And I tow every weekend. I e also got the tru cool 40k trans cooler online with it.

I also have one of those license plate steps if anyone wants to snatch it up


yevgenievich

Full Access Member
Joined
Mar 1, 2014
Posts
4,819
Reaction score
3,400
Location
Place
First Name
Name
Truck Year
Year
Truck Model
Model
Engine Size
Size
I too have that same radiator. Even before I installed electric fans, the engine never rose in temp. And I tow every weekend. I e also got the tru cool 40k trans cooler online with it.

I also have one of those license plate steps if anyone wants to snatch it up

I looked for the license plate step on ebay the other day with no results. How much do you want for yours? I am in college station.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
I've got 2 complete radiator set ups if anyone's interested. The catch is that the radiators are for the 6.2L diesel. The good news is that both radiators should really be cleaned and rodded out prior to use, so if you have an existing 4 row radiator, you can simply have the tanks from that, soldered onto the 6.2L radiator core, in order to get the correct diameter hose fittings. So not really a big deal, since the radiator shop will be taking the tanks of the 6.2 core anyway.

So I have both top mount brackets w/ pads, the top closing panel, and the fan shroud, along with the matching 6.2L radiator.

Shoot me a message if interested. I'll try to keep the price reasonable.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,291
Reaction score
3,335
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,291
Reaction score
3,335
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Thanks again for posting. Hopefully march time frame I'll be installing the 5.3. I just noticed it has oil cooling as well. Definitely gotta get one of these now. Nice that the trans cooler is beefed up a bit as well. If the 4l80 trade doesn't work out and I have to use the 4l60, that will definitely help.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
Found an '89 Suburban in the yard last week. It was complete, perfect, and still a runner. Unfortunately, the radiator was missing, but I harvested the shroud and top closing panel, along with the reverse rotation 454 fan, and then while looking around I noticed a vertical steel panel on the driver's side of the core support. This is used to force the air coming through the extra holes in that end of the core support (the holes that I had to make in my support) through that "extra" area of the radiator. I grabbed it and installed it yesterday while replacing my destroyed radiator and water pump. Here's how it looks installed, and the mounting holes for the screws were already in the core support.
You must be registered for see images attach


da_raabi

Trailer Park Supervisor
Joined
Aug 7, 2013
Posts
1,403
Reaction score
901
Location
FloriDUH
First Name
Adam
Truck Year
1986
Truck Model
c30
Engine Size
454
Dayum dude. You've got this mod down pat!


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
It's more like; continuing to learn via the school of hard knocks.

Turns out that using a 3" fan spacer eventually puts so much load on the water pump shaft that it sheers off at the front bearing, send the fan assembly into the radiator (on the freeway on a Friday night with passengers on board, 100mi from home). I actually had this spacer on for about 2yrs prior to installing the big radiator 6mos ago:
You must be registered for see images attach


You must be registered for see images attach


So I'm now in round 2 of this mod, and this time I'm not using a spacer and I've installed a reverse rotation fan from a 454:
You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


You must be registered for see images attach


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,291
Reaction score
3,335
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,390
Reaction score
28,166
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
So how's it doing without the spacer in there? The fan blades are supposed to be into the shroud about half of their depth. You have a bit of a gap in there it looks like.


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
It's fine, and yes, you are right, I can't run the fan exposed like that. The weather has just been miserable here for nearly a month, so I haven't had a chance to get over to the yard and shop for fan shroud that I can mod, in order to add to my existing shroud's depth.

Either that, or I'm going to take a section of aluminum roof flashing (sold at the hardware stores on a roll, and comes primed brown) and make a "band" that attaches to my existing shroud with fasteners and fender washers.


MikeB

Full Access Member
Joined
Apr 4, 2014
Posts
1,771
Reaction score
998
Location
North Texas
First Name
Mike
Truck Year
1969
Truck Model
C10
Engine Size
355
Glad you got the problem resolved. Hate that the new radiator was destroyed.

What is the water pump shaft diameter? Small blocks pumps are available with 5/8" or 3/4". Is that also the case with BBC pumps?


austinado16

Full Access Member
Joined
May 25, 2012
Posts
611
Reaction score
222
Location
Central Coast, CA
First Name
Todd
Truck Year
1990 w/307k miles on the clock
Truck Model
GMC V1500 Suburban SLE
Engine Size
5.7L TBI/4L60/3.42's
I don't know what the water pump shaft diameter is, and I simply ordered a GMB high flow replacement based on year/model/counter-rotation. I'm sure it'll be fine since I won't be running the 3" spacer any more.

If you have part numbers or other info for the pumps, can you post it?

Last edited:

1low4x4

Full Access Member
Joined
Feb 14, 2011
Posts
2,409
Reaction score
716
Location
Texas
First Name
Nick
Truck Year
1984
Truck Model
K10
Engine Size
5.7
Dude you need electric fans and a good wiring harness stat! You wouldn't believe the drag it takes off the engine!


gmachinz

Harnessworx Inc
Joined
Nov 10, 2012
Posts
762
Reaction score
290
Location
Iowa
First Name
Jabin
Truck Year
1986
Truck Model
K10
Engine Size
350
Dude you need electric fans and a good wiring harness stat! You wouldn't believe the drag it takes off the engine!

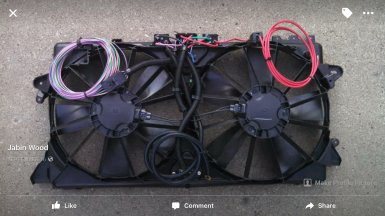

Like this one....! It's a beast to be sure-rated at 6000 CFM total it'll pull squirrels out of the trees!


Attachments

  • IMG_1324.jpg
    22.1 KB · Views: 210

Forum statistics

Threads
44,057
Posts
948,515
Members
36,124
Latest member
dabsRus420
Top
