RETRO-Mod: Jeep intermediate steering shaft

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Smith

Full Access Member
Joined
Nov 3, 2014
Posts
105
Reaction score
1
Location
NW Ohio
First Name
No
Truck Year
1984
Truck Model
K10
Engine Size
350
just out of curiousity but why buy a whole shaft and not just replace a rag joint?


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,338
Reaction score
3,392
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
I thought both were keyed so I took it off and looked. They both are at the steering gear. So I thought I'm already here why not. I took my dremel tool to the steering shaft off the jeep and ground out the flat portion enough for a tight fit.

I put in on and it was off by 45° so I pulled it back off and repositioned it. The 2nd time it was still a tight fit as I had to use a hammer to tap it on there.

Of course I put silicone on there each time, so I had to clean the excess silicon off because it came out the other end LOL.

Thanks for the quick replay Val

If I had to do it again, I WOULD NOT PULL OUT THE DREMEL!!! Do it correctly and have the end of the shaft turned to fit as a few have posted. I'm not sure if the bolt wasn't tight enough to begin with or what. If a cop had got behind me the past 2 days I'd been pulled over for suspected DUI....let alone the safety factor. I've seen worse in wheel play, but it wasn't fun for sure.

While under the gear box, I grabbed the shaft and rotated back a forth and watched the post it connects to. I had slippage. Tightened up the bolt and everything is fine...for now.

ADMIN: I'm not sure if we want to leave my previous post in as a lesson learned or just delete it all together. Up to you all, lol I'm not responsible for any damages!!!! At least put flags on it waving don't do this or something please.


1low4x4

Full Access Member
Joined
Feb 14, 2011
Posts
2,409
Reaction score
716
Location
Texas
First Name
Nick
Truck Year
1984
Truck Model
K10
Engine Size
5.7
so is this still an effective and safe modification for these trucks? I saw something about tack welding, and inserting bolts into the smaller and bigger shaft. I don't want to do something that will be half ass and could possibly fail


shippman

Junior Member
Joined
Dec 7, 2012
Posts
10
Reaction score
0
Location
Ft.Worth
First Name
Michael
Truck Year
1982
Truck Model
2500
Engine Size
350
Just looking

Any of you guys have these Cherokee steering shafts for sale?


beest

Full Access Member
Joined
Feb 13, 2015
Posts
109
Reaction score
29
Location
indiana
First Name
matt
Truck Year
84
Truck Model
k10
Engine Size
350
Just a small update for the folks looking to do this mod, you want the shaft out of the older square body style xj. The newer xj has splines on both ends. The jeeps look almost identical. But the newer ones will not work on your square body. Your looking for the ones that both ends of the shaft are under the hood. I didn't see that in this thread, and when I got a shaft at my local pic-a-part yesterday the one that I got was incorrect. Just thought I'd post up and save someone a return trip to the yard.


Evans Ward

Member
Joined
Mar 15, 2015
Posts
32
Reaction score
19
Location
GA
First Name
Evans
Truck Year
1987
Truck Model
Sierra Classic 1500
Engine Size
350
I bought one off ebay at an affordable price. After I installed it, I noticed the end of the shaft coming from firewall direction has a lot of play. Does that mean that it needs tightening from inside the cab/ column area deep inside the internal workings?


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,132
Reaction score
9,326
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Just a small update for the folks looking to do this mod, you want the shaft out of the older square body style xj. The newer xj has splines on both ends. The jeeps look almost identical. But the newer ones will not work on your square body. Your looking for the ones that both ends of the shaft are under the hood. I didn't see that in this thread, and when I got a shaft at my local pic-a-part yesterday the one that I got was incorrect. Just thought I'd post up and save someone a return trip to the yard.

Very good point to revisit. In post #1 it does mention from a 1988-1996 model Jeep Cherokee. As you mentioned, the later models WILL NOT work.

Here is the picture of what the model we need looks like.

attachment.php


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,338
Reaction score
3,392
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Again thanks for this post, I'll be doing it again.....without the dremel this time LOL. Went to a HS graduation in TN and stopped by a PAP and got 2 off in 20 minutes. I'm getting faster at this one LOL.

Cinci price was $14 total. TN price was $15 for the 2...can't beat that.

Update: Man the smell set my nose on fire. Dummy me didn't do it outside the garage on the first. Both are apart after about a minute with a small torch for household piping. Vice grips on one end and smack it on something solid a bit. You'll see the progress from each when it's loose enough.

Also, one has the play that Kapdin shows on the upper joint (page 6 of this thread). I'll have it welded.

Last edited:

Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,338
Reaction score
3,392
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
Val I finally got the wheel straight with this new shaft. It's exactly like you said, to a point. With both the box and shaft being keyed, I thought I would end up taking it somewhere to get it turned 90°'s.

It wouldn't go on with it turned, even with some tapping (Happy Gilmor). I almost gave up. Then I turned it 180°'s from that position and tap-tap-tappy got it right on there.

LOL glad I figured this one out cuz it's been buggin me since you replied last year. Not that I was thinking you were wrong, just what am I missing.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,338
Reaction score
3,392
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
I've got it secure to my liking now. I drilled holes to run a bolt through both parts, like the GM shaft had. I figured why not, I've got 3 good upper parts to play with. My hole was off center so I used a file to get them lined up. Wasn't off by much, maybe an 1/8".

Between the silicon, the Jeep bolt, and the bolt going through both parts......I don't think it's coming off LOL.

picture.php


picture.php


Too much?


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,132
Reaction score
9,326
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
I think you did just fine. You've still got the vibration dampner feature in tact, as well as the break away feature for the 2 separate pieces. I call it good.

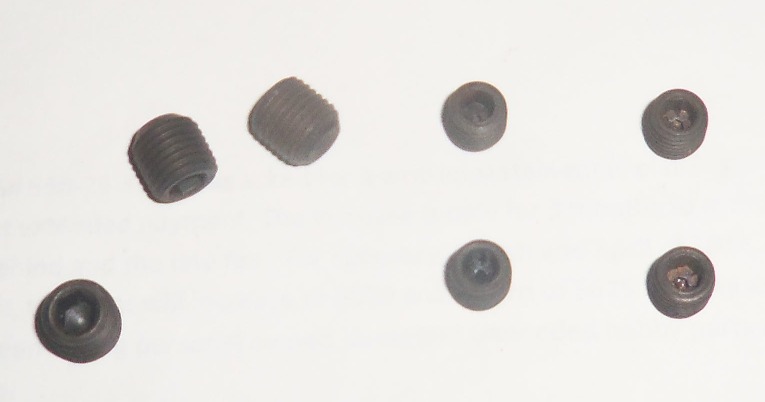

On mine, what I've decided I'm going to do as far as the 2 shafts, I found these set screw things in one of my parts organizer trays with my light bulbs and fuses. I'm going to drill 2 holes on the outer piece and tap some threads into the drilled holes. After I install the shaft, then I'll use some Loc-tite Blue (hand tool strength) and snug the set screws. That should be just enough to hold the 2 pcs tight, but yet still be able to slip and break away in a collision.


Attachments

  • SetScrews 001.jpg
    SetScrews 001.jpg
    55 KB · Views: 183

firebane

Full Access Member
Joined
Jul 10, 2014
Posts
1,732
Reaction score
30
Location
Calgary, AB
First Name
Curtis
Truck Year
1974
Truck Model
K10
Engine Size
350
If I can get a hold of one of these I'm going to try and see what it would take to make it work on my 74 without swapping steering boxes.


Camar068

Supporting Member
Supporting Member
Joined
Feb 5, 2014
Posts
4,338
Reaction score
3,392
Location
Kentucky
First Name
David
Truck Year
1986
Truck Model
K10/LM7 5.3/4L60e/np208/3.73/32"
Engine Size
10 yrs Air Force
good idea HR, same function as the bolts only flush.
