heater lever issues

[roy c]

I replaced the heater core on the sub and found that on the (inside of the truck ) core cover there's the cable that goes from the cover to the a/c- heat levers Its broken in half this (do dad) I don't know what its called
but its making air come out of all vents even when i just want defrost
any idea's on how to repare it ? it seems to have consideral preasure on it
i couldn't glue it Thanks for any help in advance Roy



[MrMarty51]

I "Think" that the control lever for the heat-A/c-Defrost is done through a vacuum switch, and so, I think that there are hoses instead of cables.
if that lever is hard to shove from side to side then, it would be an issue within that vacuum switch itself.
if it is the heat control lever, that one should be cable operated and, if that lever is hard to shove then, it is most likely an issue within the cable.



[chengny]

The only cable is for temperature control. It strokes the blend door left to right.

Can you identify the broken piece in the image below? The red line shows where the heat control cable would run.

You must be registered for see images attach



[89Suburban]

Defrost door is controlled by vacuum.


Posted From Hell



[roy c]

I was able to take a photo of it. What is this and can I get another one of it?



[roy c]

heater issue

It seems that on the back of door is vacum operated



[89Suburban]

I was able to take a photo of it. What is this and can I get another one of it?

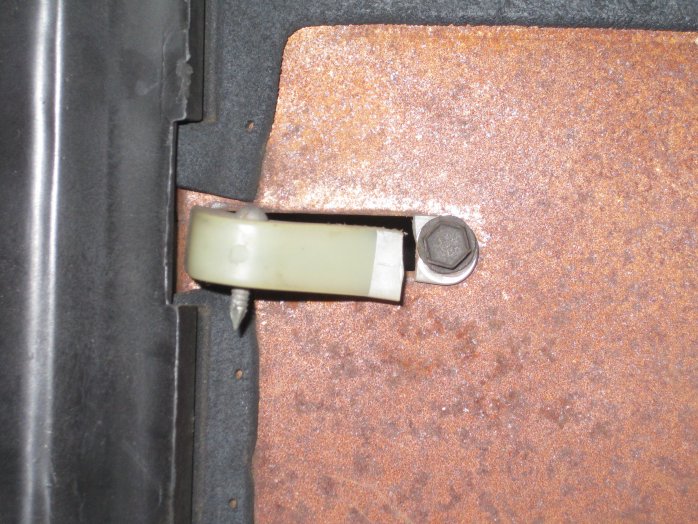

It is called a Diverter Valve Link Connector.

Here is a link to a new piece and a backyard fix:

http://www.gmsquarebody.com/forum/showthread.php?p=137403&highlight=white+plastic#post137403



[MrMarty51]

Nice fix You invented there 89.



[roy c]

heater issue

Thanks for your help excellant job thanks Roy



[89Suburban]

Nice fix You invented there 89.

That was not my handywork, I found it on the net. I like the fact that it has self tapping screws.



[BigPip]

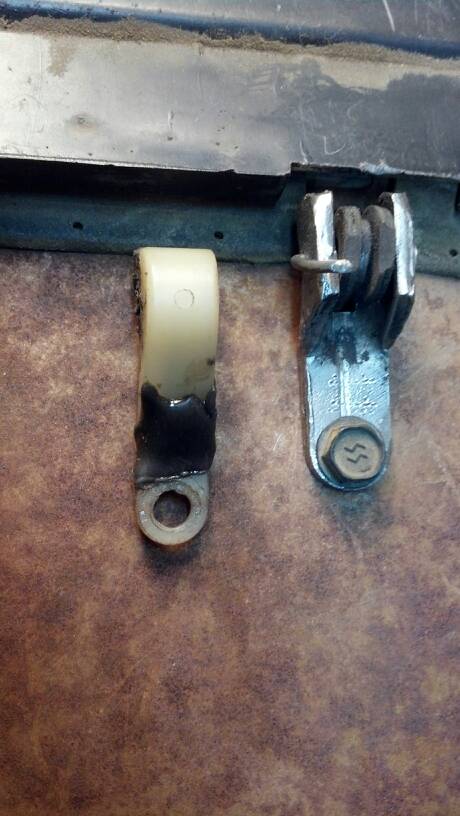

My fix for the connector. It's made out of a steering alignment shim from a 2wd '66 C10 I had laying in my miracle pile. The original that's been JB Welded is beside it. While letting it cure, I decided that wasn't good enough. It'll never brake again. Cable or blend door might but that connector won't.



[HotRodPC]

Yep, whatever works. I have only found 1 of these parts to not be broke. I didn't even bother taking it because I figured it was so brittle, I'd end up breaking it by the time it got installed anyway. USUALLY, depending on where it breaks, the blend door will still open and close, just not as far.



[foamypirate]

I need to check this out on my 84'. Any time I run the heat on lower fan speeds, I get a vibrating/flapping sound like one of the climate control doors is flapping around. I'll be this piece is broken and allowing the door to do that.



[foamypirate]

I need to check this out on my 84'. Any time I run the heat on lower fan speeds, I get a vibrating/flapping sound like one of the climate control doors is flapping around. I'll be this piece is broken and allowing the door to do that.

So, I finally got around to this a few years later, heh. The weird flapping was the bottom floor vent having a loose screw, but this divert plastic piece was broken as well.

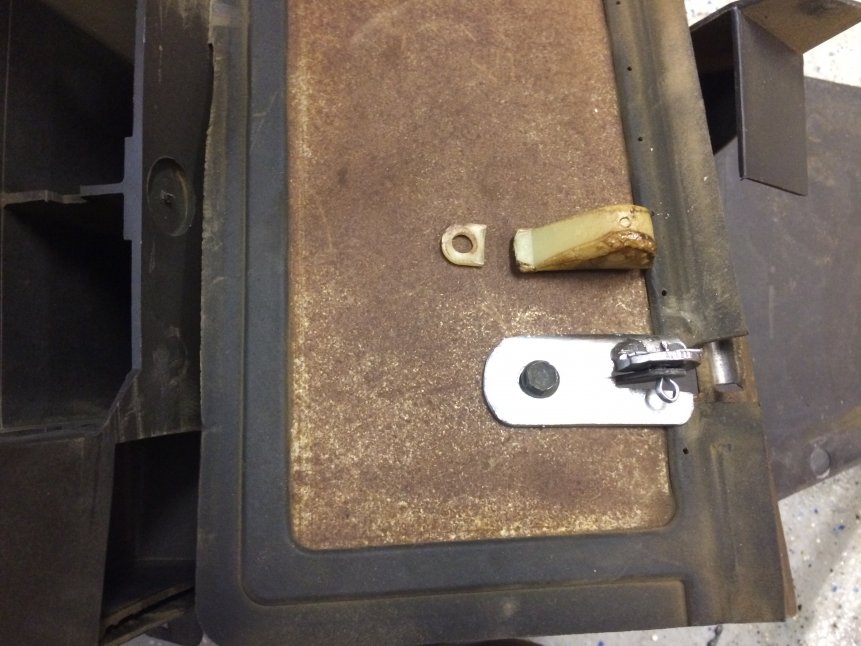

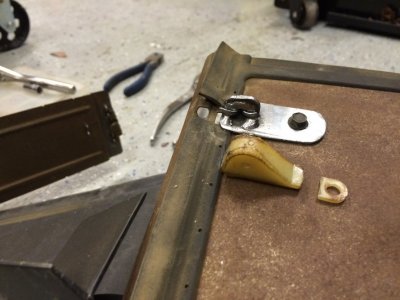

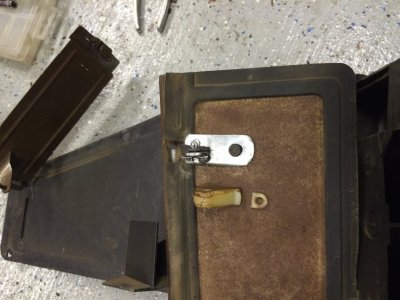

I did the permanent fix. You don't need to disassemble the box like this to do it, of course. I just had it apart to do the heater core.



[adamj]

Working on my air, the temperature cable thing, is there something broken here? Black plastic might be, but can't tell. When the blend door is stroked, cable pops up. Where is that metal bell-shaped thing supposed to go - before or after the bracket?

You must be registered for see images attach
