been going crazy trying to find this kind of info online, i have an 86 k5 blazer that i swapped out the 305 with a 400, deleted most of the emissions stuff and have a after market edlebrock carb, this thread has help tremendously. thank you

i know this is a very old thread but im hoping this can get answered, i capped off the middle 3/8 connection, is it fine to leave the middle 1/4 tapped into the bottom 3/8 line, this is how it was stock

Welcome to the forum Mark! It is customary for new members to add a picture of their square.

The charcoal can is okay, but most of us would like to see the truck it is sitting in. Shinny, rusty, whatever, we all like pictures.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
Welcome to the forum Mark! It is customary for new members to add a picture of their square.

The charcoal can is okay, but most of us would like to see the truck it is sitting in. Shinny, rusty, whatever, we all like pictures.
@mjck5 I agree with Wayne, when you get the chance you should start a thread in the new members introduction area and post truck pic over there for us to look at! We like them in all conditions!


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
Thanks for providing a detailed description. I'm looking to replace the canister on my 1986 C20 (P/N 17061005) but am struggling to find one. I appreciate anyone who might have some suggestions. Thanks.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
Thanks for providing a detailed description. I'm looking to replace the canister on my 1986 C20 (P/N 17061005) but am struggling to find one. I appreciate anyone who might have some suggestions. Thanks.
How many ports are on the canister? There are a lot of specific P/N #'s that have been discontinued. These part numbers below will work in place of most of them, and if not a direct fit they can be adapted. If you have your old canister and can take a picture of it from the top I can tell you how to use / adapt one of these to work.

3 port canister (can be setup as 2) ACDelco PN#215-153 Standard Motor Products PN#CP1022

5 port canister (can be setup as 6) GM PN#17064627DS NAPA PN#CRB 229805


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
How many ports are on the canister? There are a lot of specific P/N #'s that have been discontinued. These part numbers below will work in place of most of them, and if not a direct fit they can be adapted. If you have your old canister and can take a picture of it from the top I can tell you how to use / adapt one of these to work.

3 port canister (can be setup as 2) ACDelco PN#215-153 Standard Motor Products PN#CP1022

5 port canister (can be setup as 6) GM PN#17064627DS NAPA PN#CRB 229805
Thank you.


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454

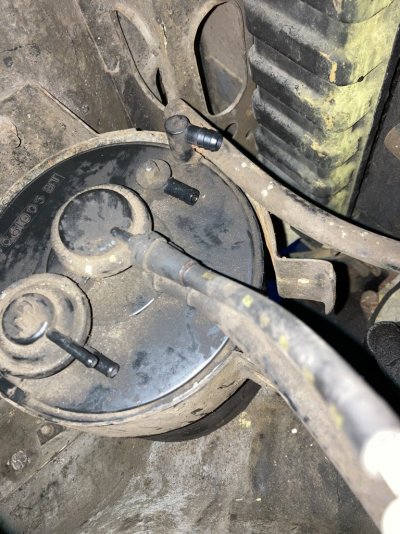

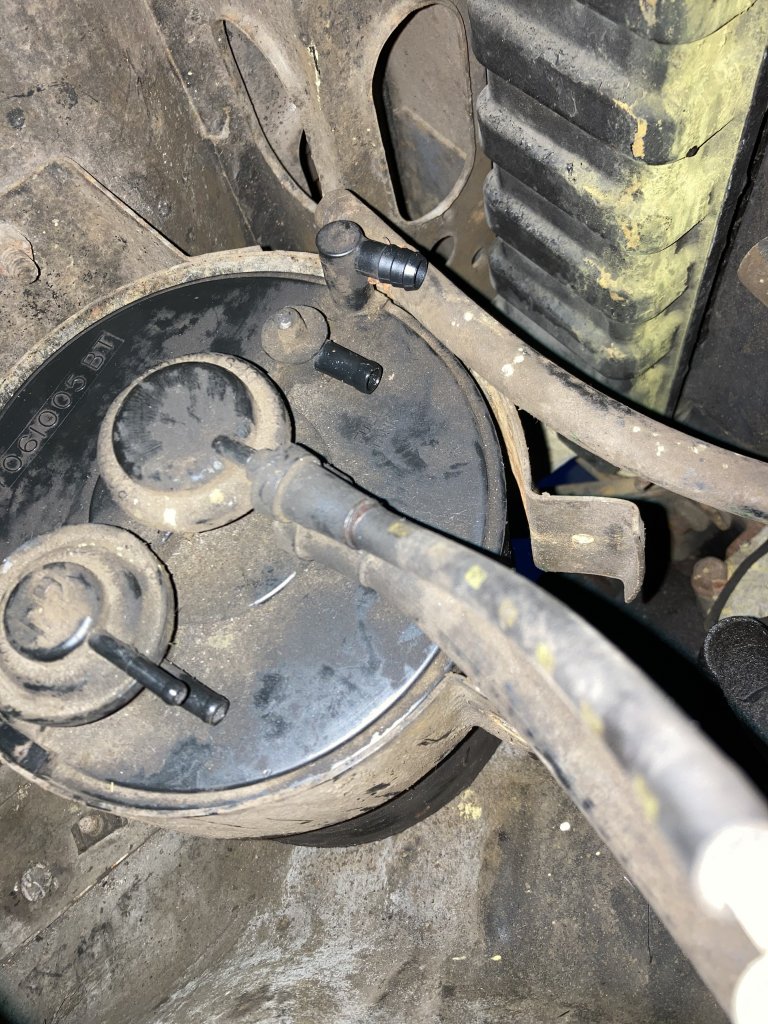

Here is a picture of my canister.


Attachments

  • IMG_3607.jpg
    211.5 KB · Views: 40

SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
Thanks for the picture.
You can use the 5 port canister (can be setup as 6) GM PN#17064627DS NAPA PN#CRB 229805

The only difference is the 6th port, the solo port on the end closest to the radiator will have a cap on it that you'll need to pop off, and the port faces straight up instead of being at an angle, but it will work with no problem for your truck.


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
Thanks for the picture.
You can use the 5 port canister (can be setup as 6) GM PN#17064627DS NAPA PN#CRB 229805

The only difference is the 6th port, the solo port on the end closest to the radiator will have a cap on it that you'll need to pop off, and the port faces straight up instead of being at an angle, but it will work with no problem for your truck.
Would you recommend this 5 port canister over the 3 port one? I can find the 3 port one on Amazon. The 5 port canister is a bit more difficult to locate. Thoughts? ...and Thanks.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
Would you recommend this 5 port canister over the 3 port one? I can find the 3 port one on Amazon. The 5 port canister is a bit more difficult to locate. Thoughts? ...and Thanks.
Well the 3 port will recover vapor from the tanks, but it would not perform the other funcations, bowl vent, A/F connection and it purges a little different. There are parts (designed for Chryslers) that will make a 3 port function like a 5 or 6. Let me see if I can find a 5 port and I'll get back on here and post again in a few minutes.


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
Well the 3 port will recover vapor from the tanks, but it would not perform the other funcations, bowl vent, A/F connection and it purges a little different. There are parts (designed for Chryslers) that will make a 3 port function like a 5 or 6. Let me see if I can find a 5 port and I'll get back on here and post again in a few minutes.
Thanks.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
Here's one >>> https://www.ebay.com/itm/386101290581 <<<
But it's the only one I can find now.

If you wanted to use the 3 port canister, you'll have the option of hooking it up as described for the 3 port on post 4 of this thread or using an external vacuum controller (I can get you P/N for it if you want). Then I would TEE into the vacuum from the fuel tank and hook the bowl vent line to it. Plug off or remove the line to the air filter housing. Eliminate the smaller manifold control line if not using an external control unit.


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
Here's one >>> https://www.ebay.com/itm/386101290581 <<<
But it's the only one I can find now.

If you wanted to use the 3 port canister, you'll have the option of hooking it up as described for the 3 port on post 4 of this thread or using an external vacuum controller (I can get you P/N for it if you want). Then I would TEE into the vacuum from the fuel tank and hook the bowl vent line to it. Plug off or remove the line to the air filter housing. Eliminate the smaller manifold control line if not using an external control unit.
Thanks, I'll check it out,


vphouger

Junior Member
Joined
Nov 25, 2021
Posts
19
Reaction score
5
Location
Lake Stevens, WA
First Name
Vaughan
Truck Year
1986
Truck Model
C20
Engine Size
454
Oh your pretty close to me, the shop I manage is in Redmond.
Which shop do you manage? I might have to drop in sometime. I did order the canister off ebay. It should be here early next week. Given I've only owned the truck for about 2 and a half years, I discovering more "bubba-isms." :) All of the emissions are deleted.
