Need help and baffled

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
Hey guys,

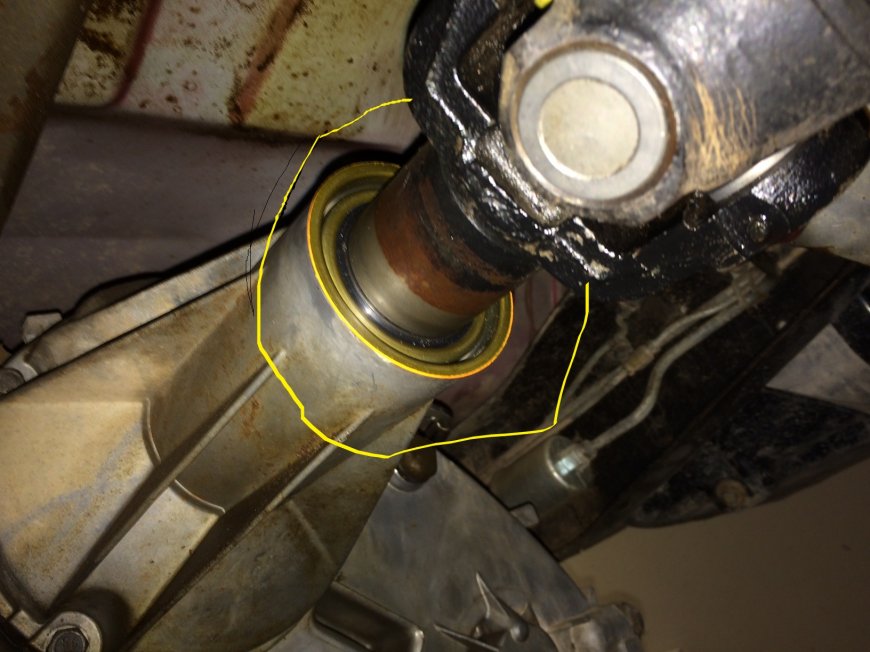

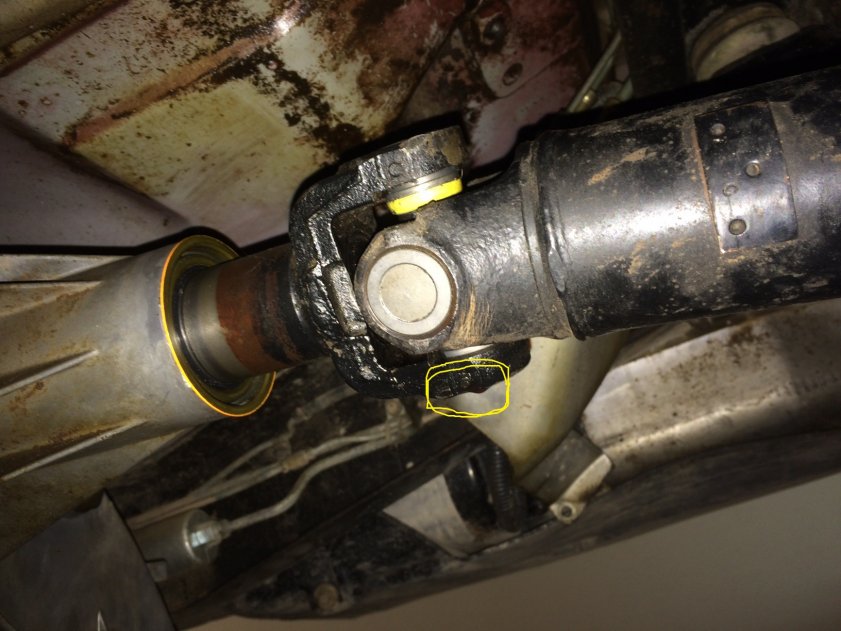

I was having the notorious clunk when cold and putting in gear. I also had a small leak that was obvious from the rear output shaft seal. I replaced both u-joints in the rear driveshaft and the rear seal. After doing that I still have a leak from a weird spot. Please see photos. My question is. Is the yoke a solid piece is it possible the fluid is leaking through. THe seal area is completely dry. I'm confused. If someone could shed some light would be great.


Attachments

  • yoke.jpg
    91.9 KB · Views: 156
  • transfercase.jpg
    89.5 KB · Views: 158

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,390
Reaction score
28,166
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
IIRC, there's an internal seal that the yoke rides on that can fail. And the yoke has a little vent hole in the center of it, that lets fluid leak out when the internal seal is bad. I've heard of people fixing it by simply plugging the little hole with epoxy or rtv or similar.


Smith

Full Access Member
Joined
Nov 3, 2014
Posts
105
Reaction score
1
Location
NW Ohio
First Name
No
Truck Year
1984
Truck Model
K10
Engine Size
350
is it running down the rear output shaft and onto the yoke? If so then the rear output shaft seal needs replaced. Its a cheap seal and not too bad to do


djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
IIRC, there's an internal seal that the yoke rides on that can fail. And the yoke has a little vent hole in the center of it, that lets fluid leak out when the internal seal is bad. I've heard of people fixing it by simply plugging the little hole with epoxy or rtv or similar.

Thanks. Do you know if I can see it with the u-joints in. I'm certain I broke that seal with heat. The joints weren't budging at all until I took a torch to them


bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,390
Reaction score
28,166
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
Thanks. Do you know if I can see it with the u-joints in. I'm certain I broke that seal with heat. The joints weren't budging at all until I took a torch to them

The seal would be on the output shaft, within the housing. Again, I'm not 100% positive about all this. Just look for a small hole on the end of the yoke.


marks86

Full Access Member
Joined
Feb 2, 2011
Posts
1,513
Reaction score
89
Location
Latham, NY
First Name
Mark
Truck Year
1986
Truck Model
K30
Engine Size
12v Cummins
my output shaft seal has been leaking forever its because I overfilled the transfercase and the access is dripping out


djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
Thanks ceasar, I will take out t h is weekend and see if I have that relief hole.


djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
I found out there is a seal at the bottom of the slip yoke. It's not the hole pictured above. Need a new slip yoke and have the driveshaft balanced. Thx for all the input.


MadOgre

Full Access Member
Joined
May 4, 2014
Posts
4,090
Reaction score
51
Location
NA
First Name
NA
Truck Year
NA
Truck Model
NA
Engine Size
NA
4wd's do not have an inner seal on the transfer case out put shaft. Also the yoke should not require one either. The center of the transfer case out put shaft carries ATF down the center core of it delivering it to the bottom of the yoke, this is then forced through the splines of the yoke and out put shaft to lubricate the splines. So as long as the yoke is fitted back inside the rear out put seal you will have no leaks.......unless you have the wrong 2wd yoke installed.


flyboy1100

Full Access Member
Joined
May 23, 2014
Posts
1,024
Reaction score
9
Location
UsA
First Name
me
Truck Year
1986
Truck Model
k1500
Engine Size
305, 700r4??, 3.42 gears
So mine appears to be leaking as the OP, what is the fix? New yoke? The yoke didn't leak when installed in my old 208, but does installed in my 241


djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
So mine appears to be leaking as the OP, what is the fix? New yoke? The yoke didn't leak when installed in my old 208, but does installed in my 241

The new slip yoke fixed my issue. I'm thinking that mine didn't leak because once it leaks low enough to send fluid down there it stop. But once I filled it back up with the work I did. That is why it started leaking again. Maybe that's why its leaking on your 241 now.


flyboy1100

Full Access Member
Joined
May 23, 2014
Posts
1,024
Reaction score
9
Location
UsA
First Name
me
Truck Year
1986
Truck Model
k1500
Engine Size
305, 700r4??, 3.42 gears
How much did a new one cost?

I had to heat the yoke to remove factory ujoint, so that prob messed up the plug or whatever. Always something


flyboy1100

Full Access Member
Joined
May 23, 2014
Posts
1,024
Reaction score
9
Location
UsA
First Name
me
Truck Year
1986
Truck Model
k1500
Engine Size
305, 700r4??, 3.42 gears
I found my spare! Going to jb weld it and put it in. Don't know if it needs it or not, but it can't hurt


djtlaz123

Junior Member
Joined
Nov 26, 2014
Posts
17
Reaction score
3
Location
Arizona
First Name
Destry
Truck Year
1987
Truck Model
V1500
Engine Size
5.7 TBI
I found my spare! Going to jb weld it and put it in. Don't know if it needs it or not, but it can't hurt

It cost 165 but thats due to the fact that the driveshaft has to be balanced. I will say I do have a little less vibration while driving. Don't know if its mental or really did improve things. I to also used heat to get my old ball joints out.
