Installing windshield in a Squarebody

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

Strick

Full Access Member
Joined
Nov 25, 2020
Posts
1,354
Reaction score
3,315
Location
Dunn, NC
First Name
Harold
Truck Year
1979
Truck Model
C20 Crew
Engine Size
350
I just pulled a windshield from an '80 and put into my '82 last Fall. I cleaned the existing gasket and made sure all the old bedding compound was removed from the cab and then done the "rope trick". Had it installed in just a few minutes although it took longer to put in the lock ring. I've never installed the gasket first like they did in the video. Maybe I'll try that on the next one.

HS


Randy and Easton

Full Access Member
Joined
Feb 6, 2021
Posts
900
Reaction score
1,303
Location
North Richland Hills, Texas
First Name
Randy
Truck Year
1976
Truck Model
C-10 LWB
Engine Size
350

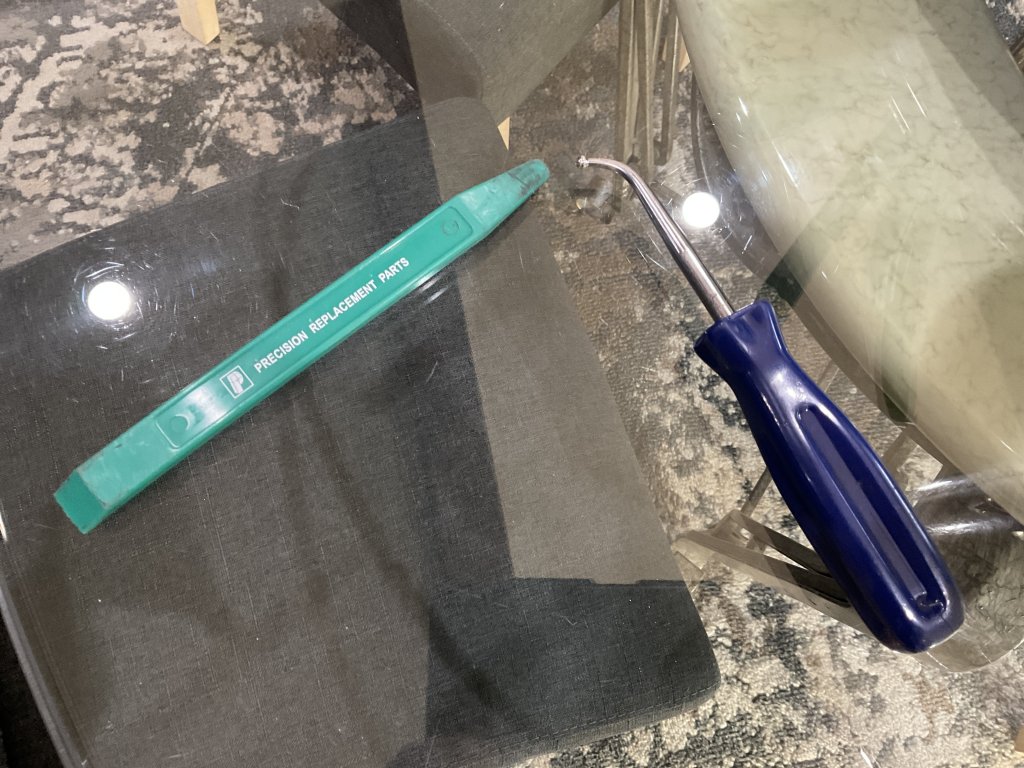

All you need. If you buy gasket from precision they send the green stick with it at no cost.

Randy and E


Attachments

  • image.jpg
    167.1 KB · Views: 39

bucket

Super Moderator
Staff member
Super Moderator
Joined
Aug 3, 2010
Posts
30,438
Reaction score
28,342
Location
Usually not in Ohio
First Name
Andy
Truck Year
'77, '78, '79, '84, '88
Truck Model
K5 thru K30
Engine Size
350-454
All you need. If you buy gasket from precision they send the green stick with it at no cost.

Randy and E

Yeah, I couldn't find my green stick when I did my last one. Technically, my stick is white though, I got it from a glass shop in South Hill, VA. Anyway, I was still able to make due with just a wooden paint stick and some glass cleaner to install the lock strip.


Grit dog

Full Access Member
Joined
May 18, 2020
Posts
6,970
Reaction score
12,220
Location
Auburn, Washington
First Name
Todd
Truck Year
1986, 1977
Truck Model
K20, C10
Engine Size
454, 350
And a 5gal bucket full of 4 letter words. And some glass cleaner for lube. And a whole lotta luck
Fck, we had to go dump the bucket half way thru!
Actually. Me and my son give it a couple hours and just stopped and tried again the next day. Couple more hours and it was in. But I thought it might break several times.
Went in just like the videos but holy hell was it tight.
I was using soap water, spray wax, window cleaner, even a dab r 2 of dielectric grease to get the top corners in. Not sure which worked better but I was throwing the kitchen sink at it!
Didn’t use any sealer on the pinch weld or the windshield. Dunno how I could have without having it get everywhere. But it don’t leak at all.
