Inner Cab Heater/AC Housing Reference Pics

[89Suburban]

I'll have to keep an eye open at PAP for that.



[HotRodPC]

I'll have to keep an eye open at PAP for that.

Shitcha !!! I ought to make a list of items to check for when I go. I always remember on the way home, awww FAK, I was gonna see if....



[RetroC10Sport]

I do that every damned time.



[89Suburban]

I like keeping a running list in my thread, so many new ideas pop up here and I can run and add it to the list. Scary thing if you happen to forget it you run across something and a member from here pops right into your head, like you when I saw that metal covered heater housing. I noticed the diaphragm was metal and that made me do a double take.


Sent from my iPod Touch 4th Gen using Tapatalk



[89Suburban]

I like keeping a running list in my thread, so many new ideas pop up here and I can run and add it to the list. Scary thing if you happen to forget it you run across something and a member from here pops right into your head, like you when I saw that metal covered heater housing. I noticed the diaphragm was metal and that made me do a double take.


Sent from my iPod Touch 4th Gen using Tapatalk

Speaking of which, looky here HR...

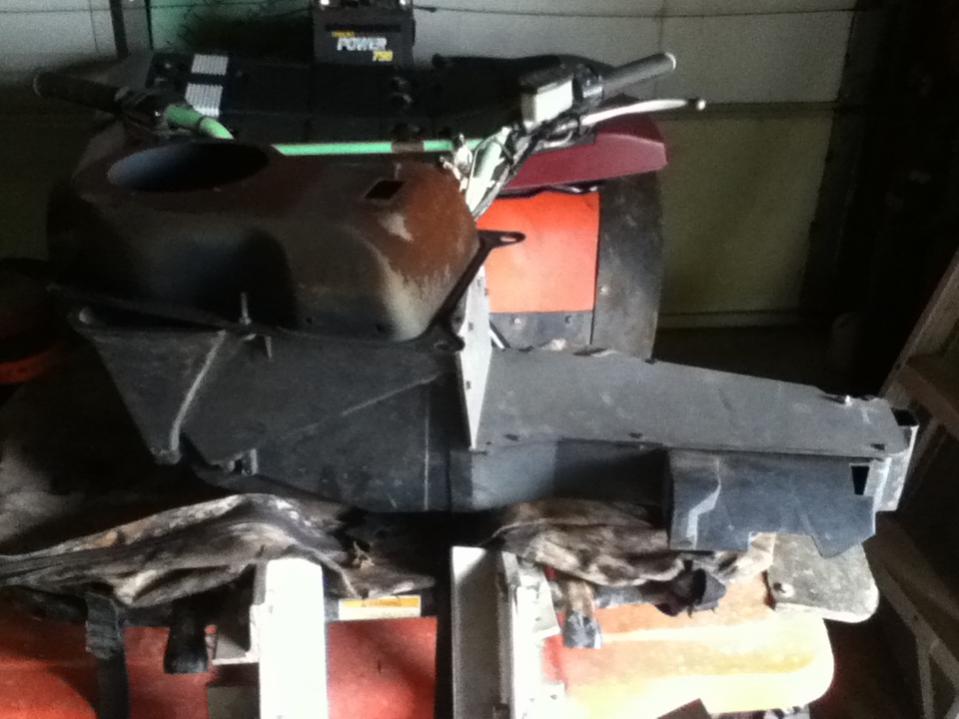

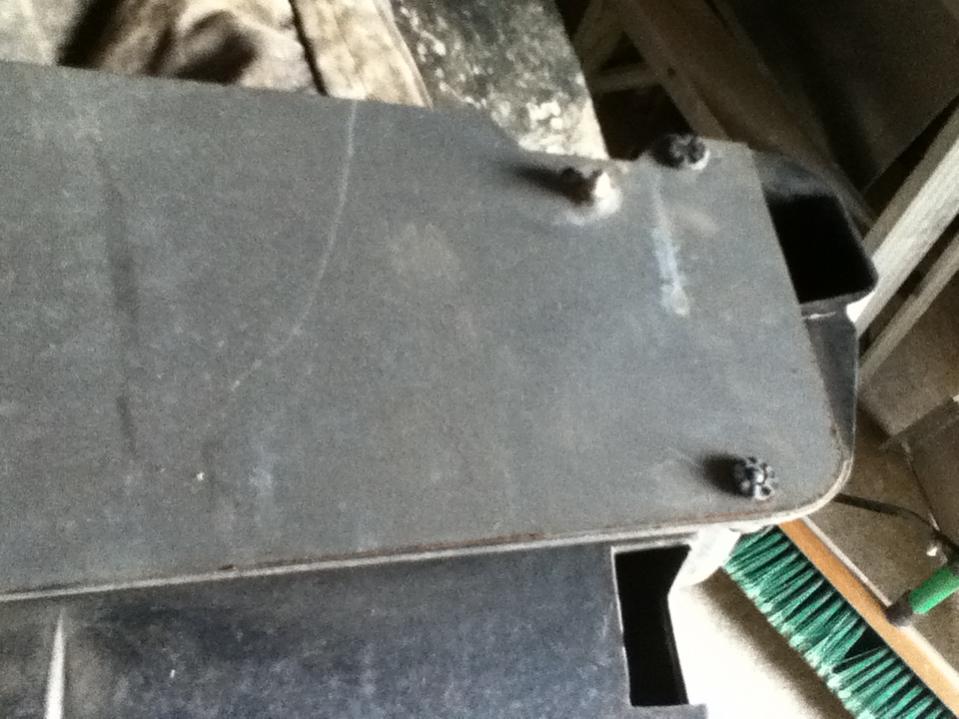

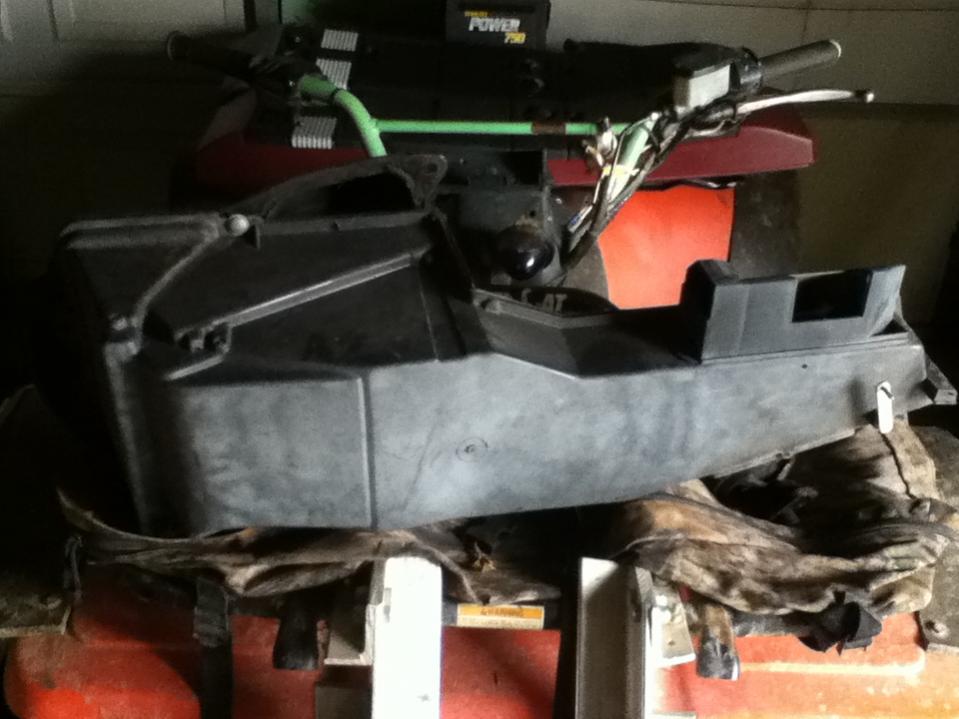

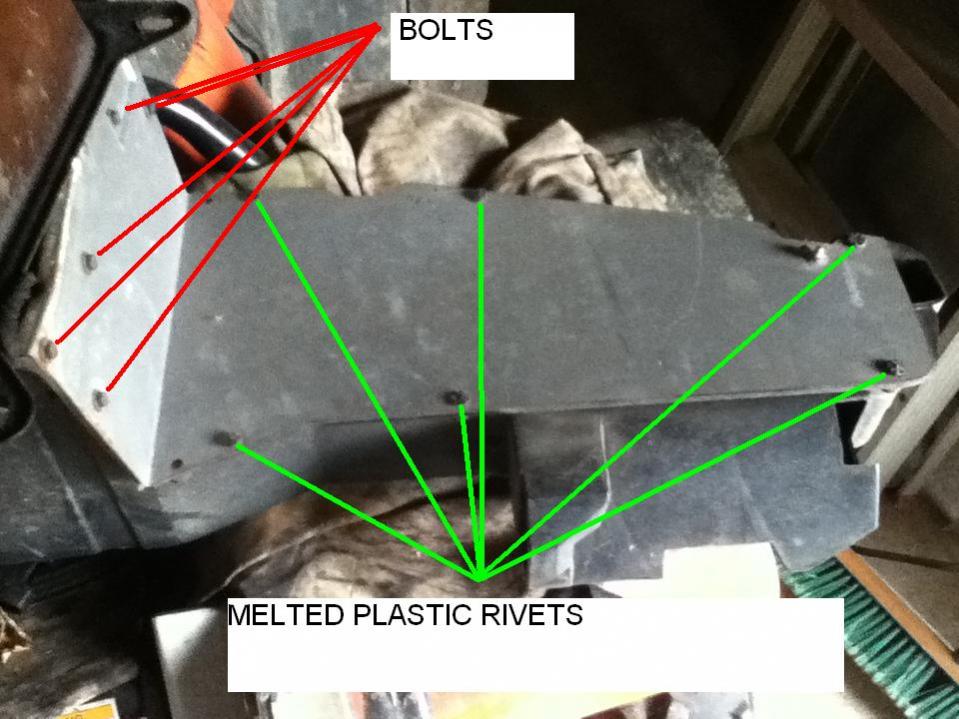

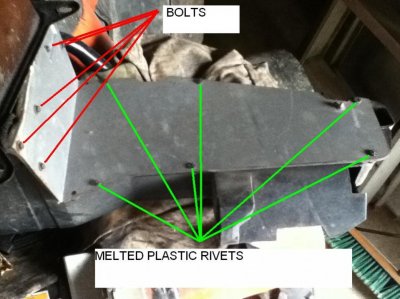

Here is another heaT only setup that has the metal rear cover. Crazy thing is it's bolted in some spots and plastic welded/riveted in others...



[89Suburban]

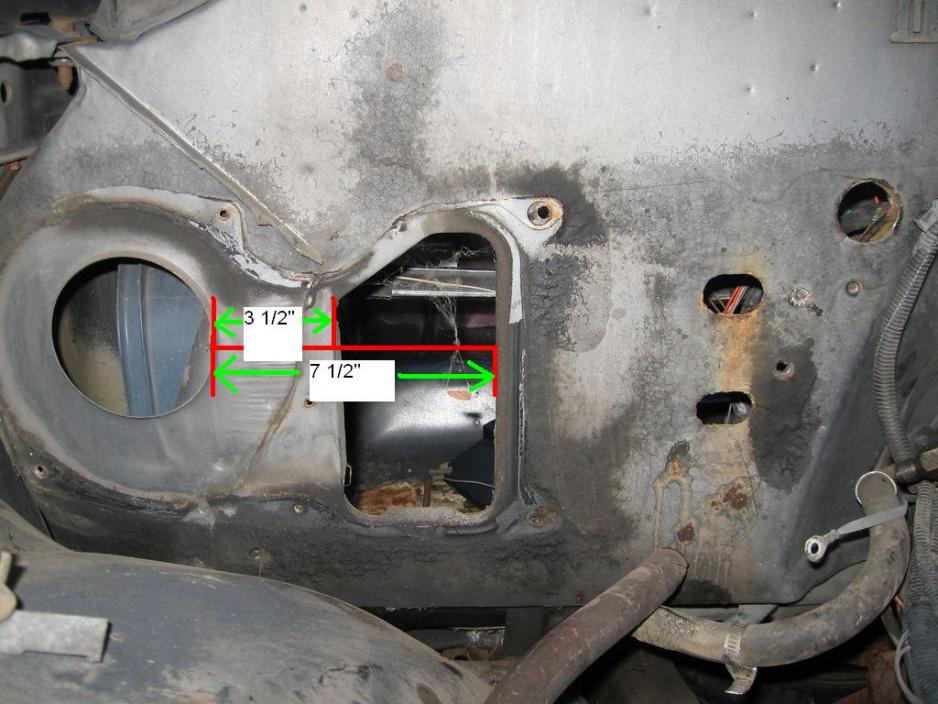

Heater Measurements



[89Suburban]

Excellent images. Hope you don't mind - here they are combined as a continuous PDF. No password, just download (ignore the hype and click "free download") and unzip:

https://rapidshare.com/#!download|334p6|219952106|HVAC air handling - both sides.rar|11341|0|0

One thing I've learned about posting (even the most innocent material) to filesharing sites - if you try to download while you're at work, forget it - it will be blocked. You have to wait till you get home.

Hey, you still got this? Link aint working.



[hinkv10]

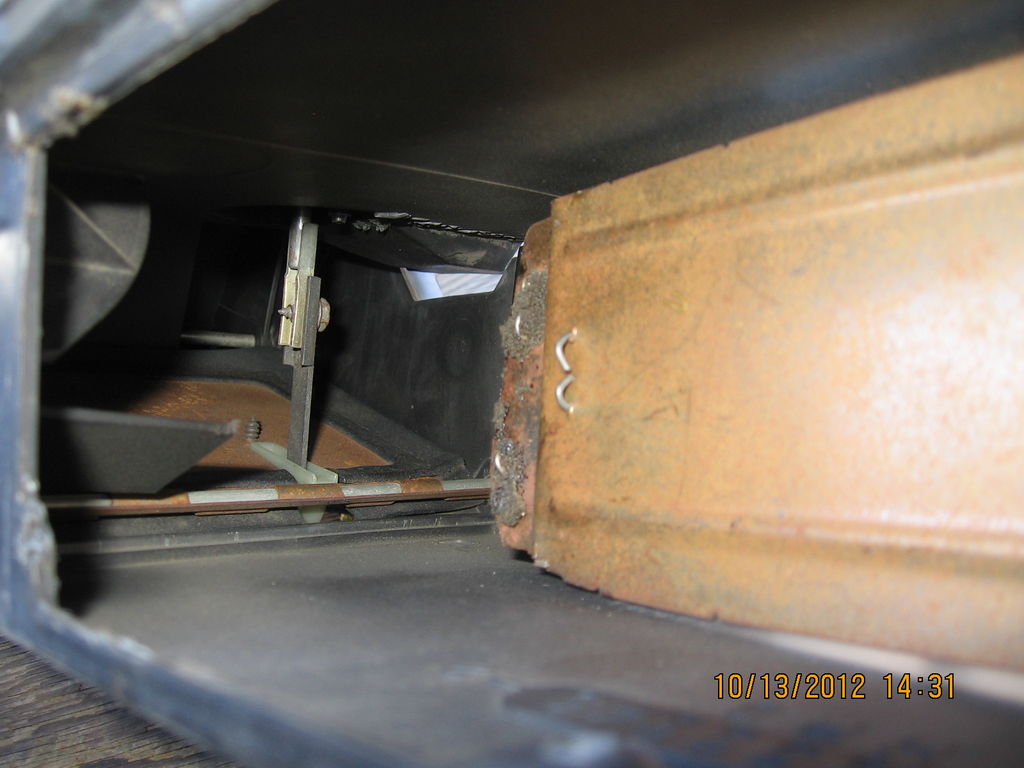

Don't remove this screw

I just finished replacing the heater core and my advice is don't remove this screw. It is better to use a pair of arc joint pliers and remove the pin in the white plastic piece that always breaks. It was impossible for me to get my hands and a 5/16 wrench in there to tighten it. I was able to remove it though!



[hinkv10]

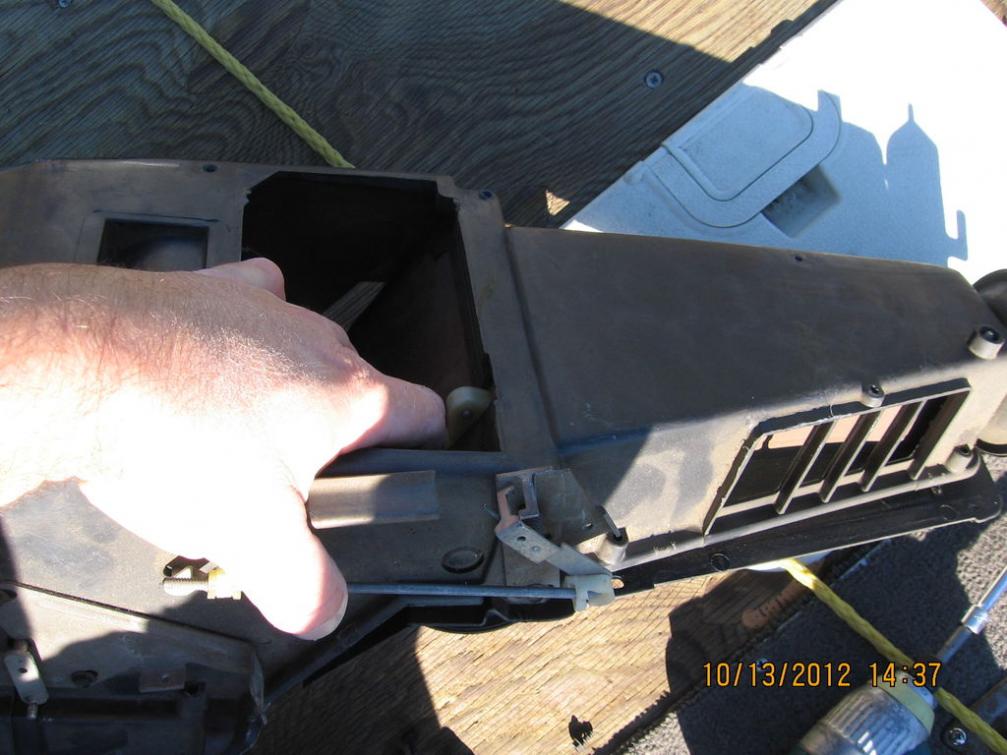

white plastic piece

This is the white plastic piece i was referring to in the previous post. Anyone find a fix for this or a place to buy one cheaply?



[89Suburban]

I just finished replacing the heater core and my advice is don't remove this screw. It is better to use a pair of arc joint pliers and remove the pin in the white plastic piece that always breaks. It was impossible for me to get my hands and a 5/16 wrench in there to tighten it. I was able to remove it though!

This is the white plastic piece i was referring to in the previous post. Anyone find a fix for this or a place to buy one cheaply?

Ooo! Oooo! Somebody to talk heater housing with!!!

On the screw you mention, I removed mine, yes it's a bitch. I was barely able to access it through the rear panel. Does your rear panel remove or is it one piece?

See that def/floor door in your pic? Notice there is a spot that looks like there should be a foam piece to help seal when the door closes fully either way?

Also on that door did you notice the rod that controls it has two holes that you can adjust how far it blends?

On that plastic piece, I saw a simple fix for it but can't remember what it was. I got to dig that up. Let me look....



[89Suburban]

Here is a part number, I still know there is a backyard fix somewhere.

Take out the glovebox. Behind the glovebox is the climate control box. There will be a piece of ductwork that you need to remove from the climate control box. It should be held in place with 2 screws to the box and another screw that attaches it to the next ductwork piece above it. Carefully remove the ductwork out of the way and you should see this:

You must be registered for see images attach

The rusty piece of metal in the middle of the picture is the blend door. The white(ish) piece of plastic that is attached to it is the clip that usually breaks and causes the blend door to not function properly. You can buy replacement clips through parts houses like LMC or Classic Parts, or you might still be able to order them directly through GM. Here's the GM number just in case you want to go that route #3018715. Do not attempt to buy used clips from the junkyard as the plastic degrades over time and becomes brittle. Using a used clip will cause you to have to revisit this fix in short order.



[89Suburban]

It is called a diverter valve link connector, oooh baby, I am in a groove right now.


http://www.classicparts.com/1983-85...nector-W-A_C/productinfo/68-248/#.UMZX96wzTxU

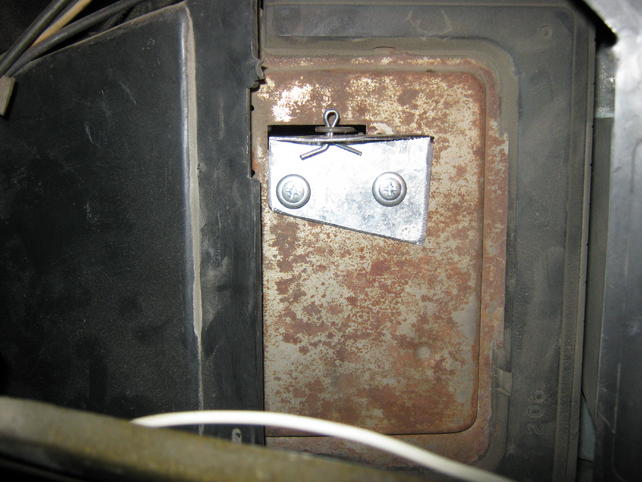

And backyard mechanic fix.



[HotRodPC]

Luckily on that secomd box I bought it has a good one that wasn't broke YET. I think they all do. I thought of doing something like that backyard fix. I don't call that a backyard fix. I call the a pemenent fix and I'd do that before I spend $2.49 for another one that will break.



[89Suburban]

Anybody know what the phuck this is?

You must be registered for see images

upload foto



[HotRodPC]

Yep, its the resistor for fan speeds. Hi Med Low. At least usually what it is.
