Anyone have a fuse block diagram for a '87 R10?
Electrical Schematics
- Thread starter Guardian
- Start date
Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.
cooter55
Full Access Member
- Joined
- Sep 25, 2012
- Posts
- 74
- Reaction score
- 11
- First Name
- Jack
- Truck Year
- 1973, 1987
- Truck Model
- C20, R10
- Engine Size
- 454FI, 350
How bout the whole wiring manual...
OK...that would work
BTW...I did get a fuse block diagram
Anthony6
Junior Member
- Joined
- Nov 2, 2016
- Posts
- 1
- Reaction score
- 0
- Location
- Houston
- First Name
- Anthony
- Truck Year
- 1986
- Truck Model
- C10
- Engine Size
- 454
Tbi to carb wiring "help needed"
I have 86 c10 truck that i am building. But the cab is from a tbi 87. The problem im having is what wires to use and what wires to get rid of. All guages are from the tbi so i need a wiring Schematic to help me convert the 2. From the fire wall as well. Thanks gents
I have 86 c10 truck that i am building. But the cab is from a tbi 87. The problem im having is what wires to use and what wires to get rid of. All guages are from the tbi so i need a wiring Schematic to help me convert the 2. From the fire wall as well. Thanks gents
effnay
Junior Member
- Joined
- Aug 19, 2020
- Posts
- 14
- Reaction score
- 4
- Location
- wyandotte, MI
- First Name
- brad
- Truck Year
- 1984
- Truck Model
- C10 2wd
- Engine Size
- 350

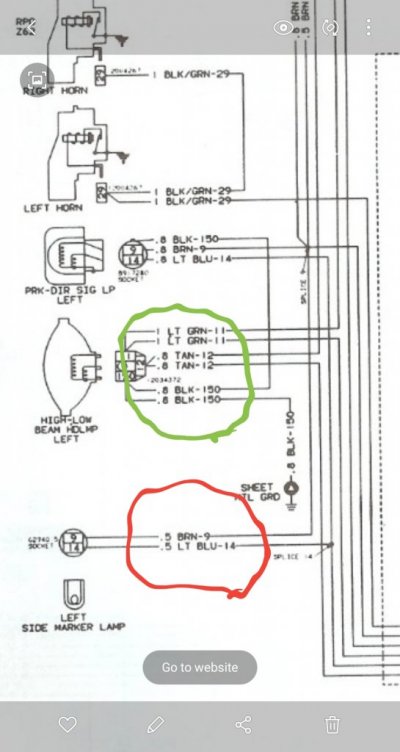

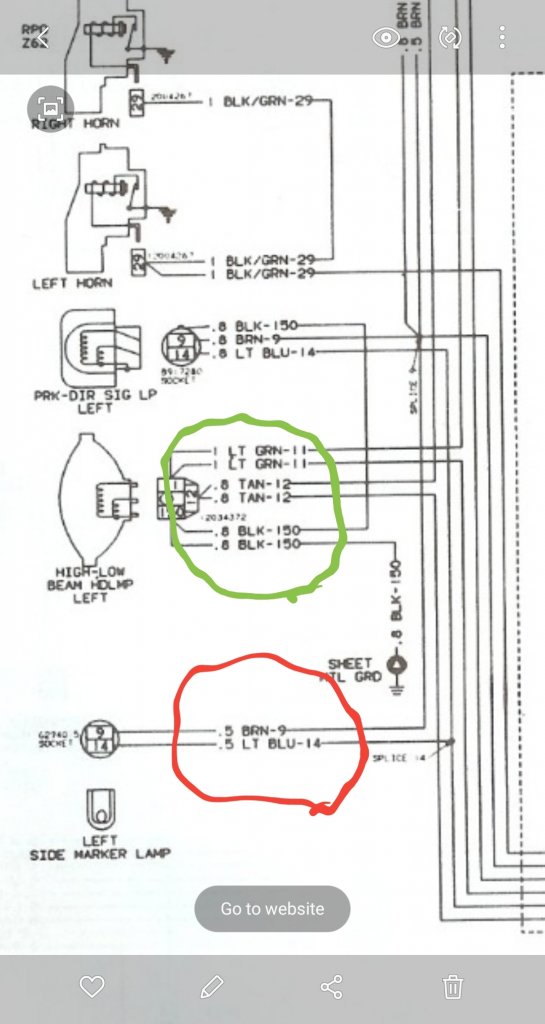

I'm just curious if anybody has a list for AWG sizes on a electrical schematic. I included a pic to help with what I'm asking. To start with, in the picture how do I determine what size the brown and light blue wires are circled in red. It says .5 LT BLU - 14 and .5 BRN - 9. In the green it has .8 TAN - 12 and .8 BLK - 150. I get the last number is the location where the wire goes on the connector but my main question is how do I determine the AWG wire size for the first number? I have looked on the line but can't seem to come up with a definitive answer.
If anybody can help a guy out that would be great.
If anybody can help a guy out that would be great.
Attachments
Corvette Ed
Full Access Member
- Joined
- Nov 29, 2020
- Posts
- 3,861
- Reaction score
- 14,644
- Location
- East Tennessee
- First Name
- Eli
- Truck Year
- 79
- Truck Model
- C10
- Engine Size
- 250
Thanks
effnay
Junior Member
- Joined
- Aug 19, 2020
- Posts
- 14
- Reaction score
- 4
- Location
- wyandotte, MI
- First Name
- brad
- Truck Year
- 1984
- Truck Model
- C10 2wd
- Engine Size
- 350
No problem.
dsteelejr
Full Access Member
- Joined
- May 25, 2020
- Posts
- 239
- Reaction score
- 231
- Location
- Hudson, WY
- First Name
- David
- Truck Year
- 1973, 1980
- Truck Model
- Cheyenne super C20 camper special, Sierra K25
- Engine Size
- 350, 454

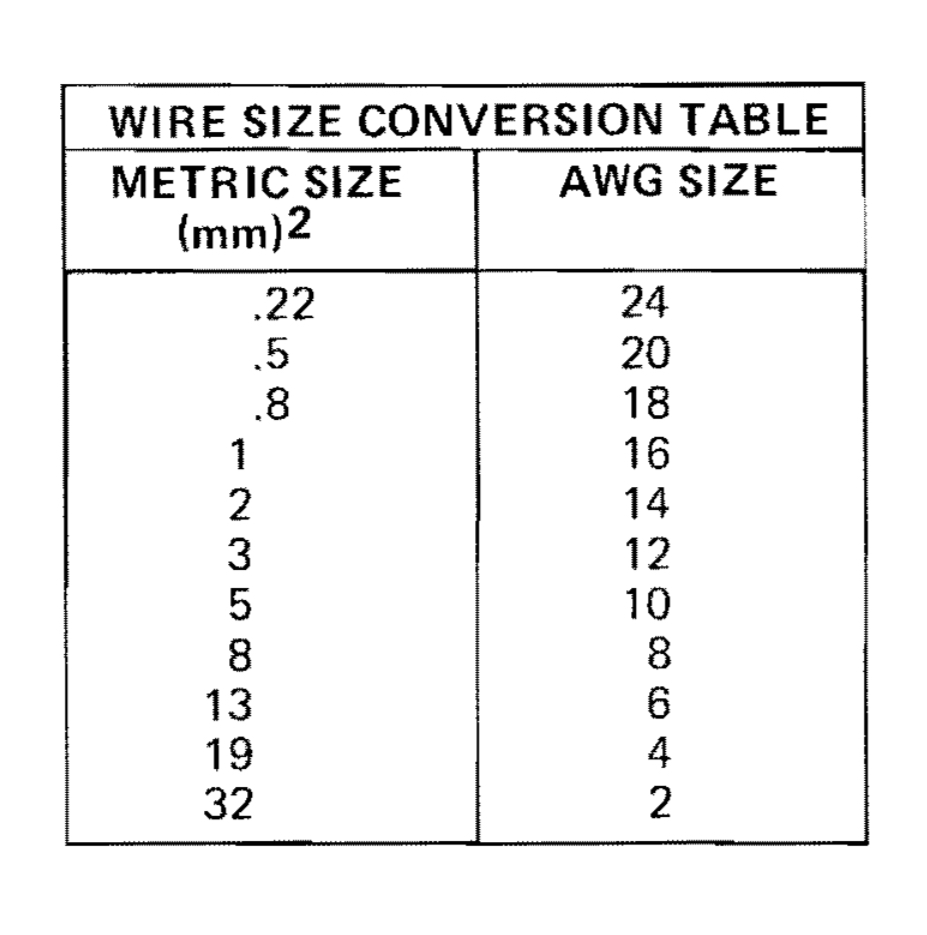

Attachments
Ron Sebastian
Full Access Member
- Joined
- Nov 8, 2018
- Posts
- 269
- Reaction score
- 295
- Location
- Vero Beach
- First Name
- Ron
- Truck Year
- 1987
- Truck Model
- Custom Deluxe V10
- Engine Size
- 350
Just typed a book and hit the wrong key and it all disappeared. Looking for direction on where the harness goes that connects the Fuel Switching Valve, Fuel Pumps and Cab Tank Selector Switch and Fuel Gauge, did I miss anything? Where do they end up and is there a connector somewhere in the engine compartment. Need help with this.
