Yea, it’s mostly my winter beater car but also use it for hunting and fishing road trips when I know it’s in for a trashing. I know this seems crazy but I have been getting 10 yrs out of most my batteries here in Colorado. I had one only last 3 years but it failed when the post broke in half so I don’t think that one counts. I do take care of my mechanical stuff mostly myself and this car has been very reliable. It makes a huge difference living in softer environment conditions. When I resided in the Midwest, the harsh environment was really tough on everything.

The car ran perfectly to the car wash and back home after I installed the water pump, then acts up a week later. There aren’t any wires or vacuum lines near the pump. Maybe, something disconnected when I also replaced both upper and lower radiator hoses? The last time the CPS was failing it didn’t set off any codes. The only other unusual thing I did was moved it closer to the garage without the serpentine belt connected since the water pump was seized. Maybe that has something to do with it. I will get the flashlight out to look hard if something came unbuttoned when I pressure sprayed it or replaced the hoses. I still don’t have a check engine light condition so not sure the ECU identifies any faults even though there is something wrong.

Most of my batteries were purchased from Advance Auto, I buy the cheaper battery too since the higher price only buys you another year of warranty. Most batteries don’t fail within the warranty period anyway.

I greatly appreciate your input and recommendations. I’ll take some pics of my batteries so you don’t think I’m delusional, lol.


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,582
Reaction score
9,062
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Do a volt drop test on battery positive cable . And battery negative cable. Something isn't right here,no way is a fuel pump, ignition and fuel injectors pulling a good battery down to 9 volts in a few seconds or minutes. But if you can't supply adequate voltage due to bad cables etc. This can cause problems such as low fuel pressure,injectors that don't open, etc.


mxer147

83 K20, 350 vortec, 465, 208, 14/10, 4.10, 33s
Joined
Feb 8, 2023
Posts
629
Reaction score
2,297
Location
Colorado
First Name
Jack
Truck Year
1983
Truck Model
k20
Engine Size
350

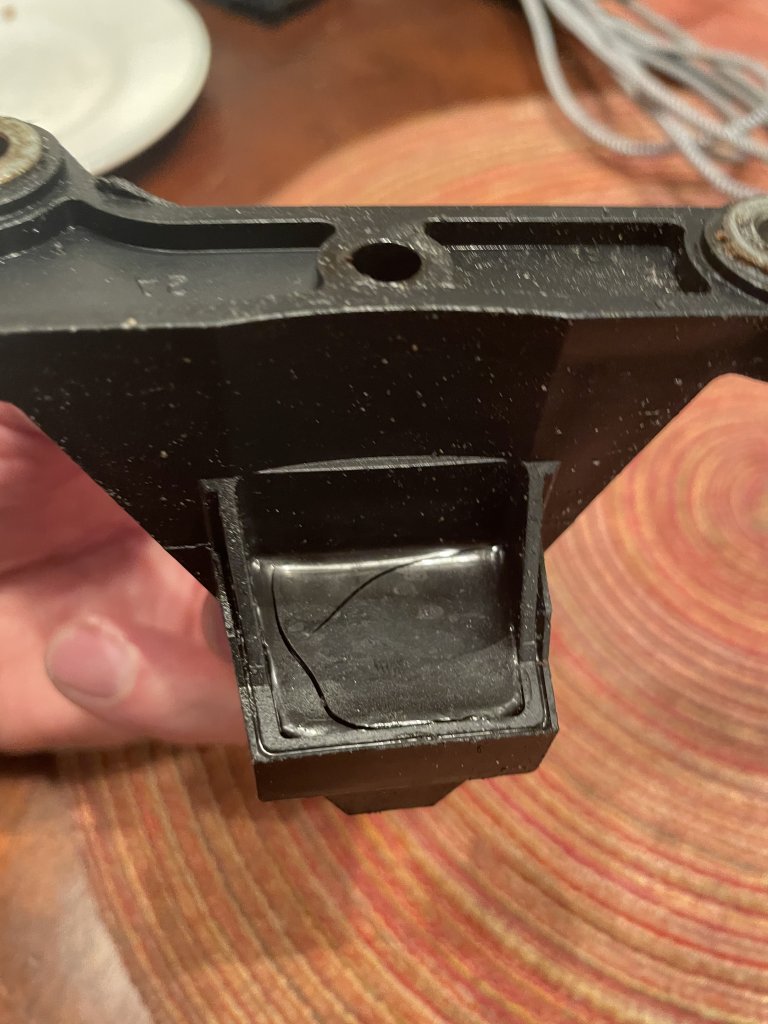

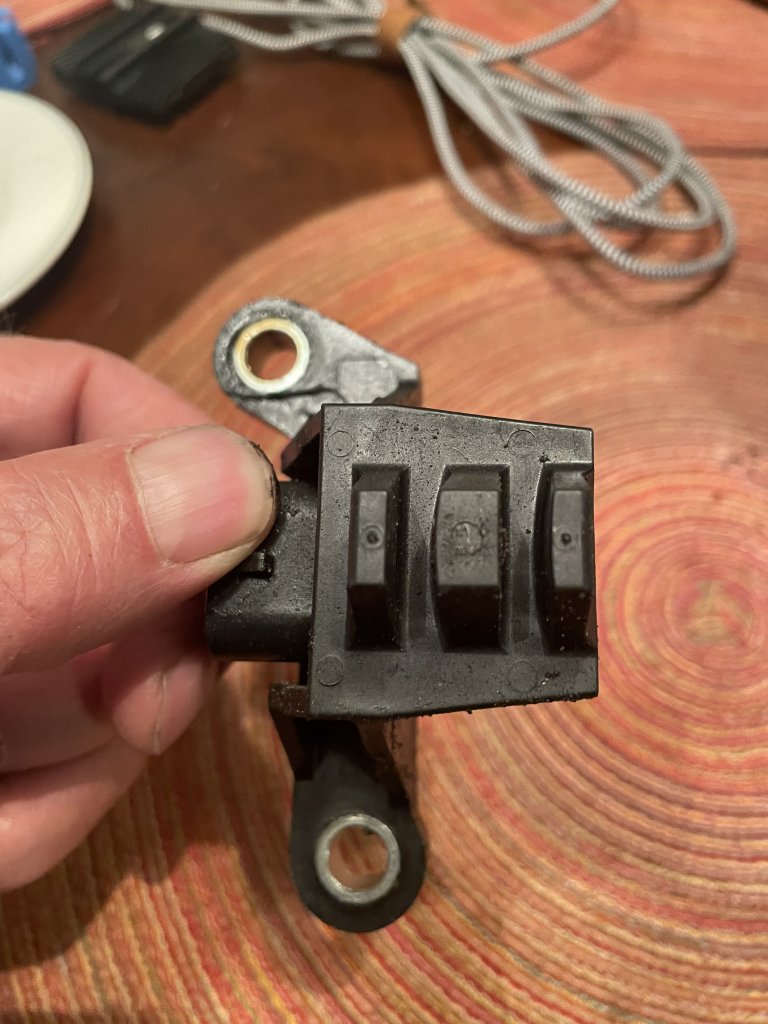

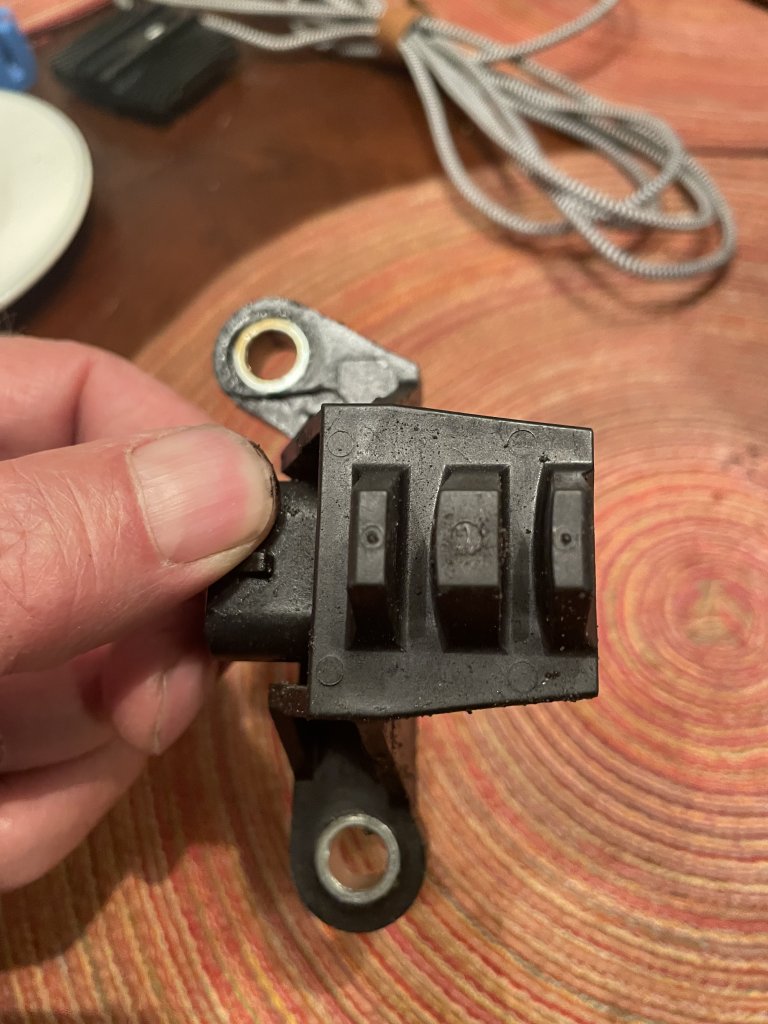

About to run to advance to take advantage of my limited lifetime warranty, pretty sure this is the reason it won’t idle, likely from hot coolant hitting it.


Attachments

  • IMG_9975.jpeg
    119.9 KB · Views: 51
  • IMG_9974.jpeg
    111 KB · Views: 56

mxer147

83 K20, 350 vortec, 465, 208, 14/10, 4.10, 33s
Joined
Feb 8, 2023
Posts
629
Reaction score
2,297
Location
Colorado
First Name
Jack
Truck Year
1983
Truck Model
k20
Engine Size
350
Got ahead of myself, still not idling and dropping voltage….dumb arse! Voltage drop tests next.


mxer147

83 K20, 350 vortec, 465, 208, 14/10, 4.10, 33s
Joined
Feb 8, 2023
Posts
629
Reaction score
2,297
Location
Colorado
First Name
Jack
Truck Year
1983
Truck Model
k20
Engine Size
350
The no idle condition was a bad MAF sensor, misfiring was from bad ignition coil and spark plug wires. I believe it’s road worthy again after also replaced the power steering pump and replaced the o-rings in the two aluminum elbows. Still have a minor oil and tranny pan gasket leak to resolve this spring or summer.
