New wiring dosnt do anything when key is on.

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

randomTruckKid

Full Access Member
Joined
Feb 26, 2024
Posts
153
Reaction score
108
Location
Rockport tx
First Name
Brian
Truck Year
79
Truck Model
C10
Engine Size
350

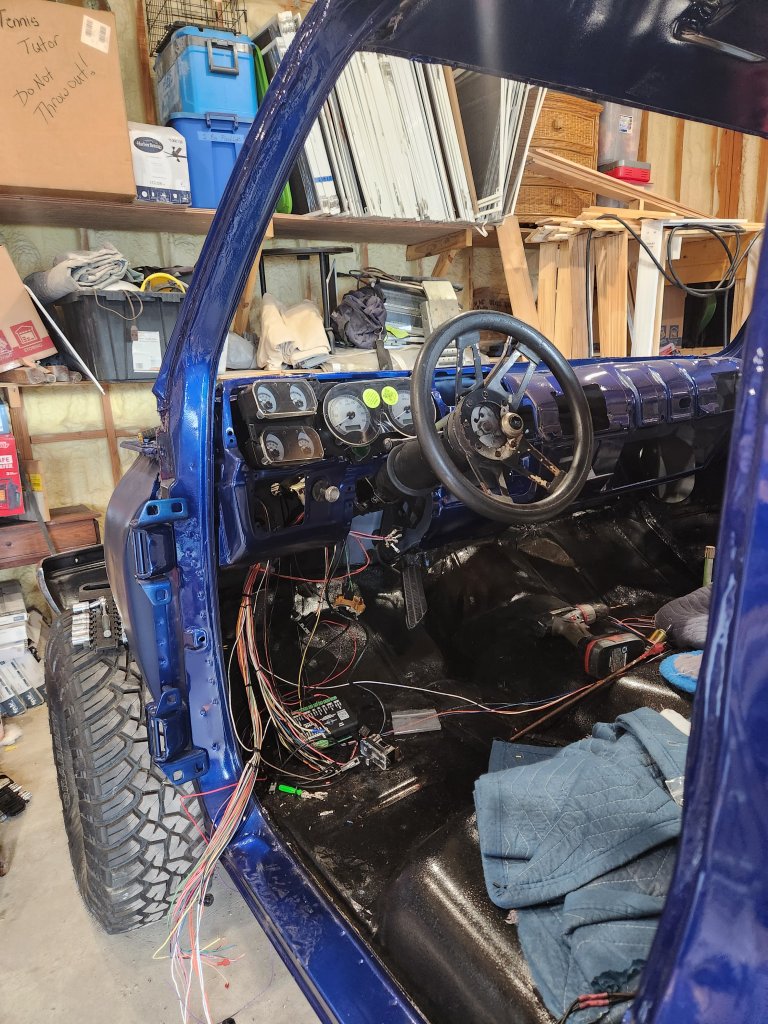

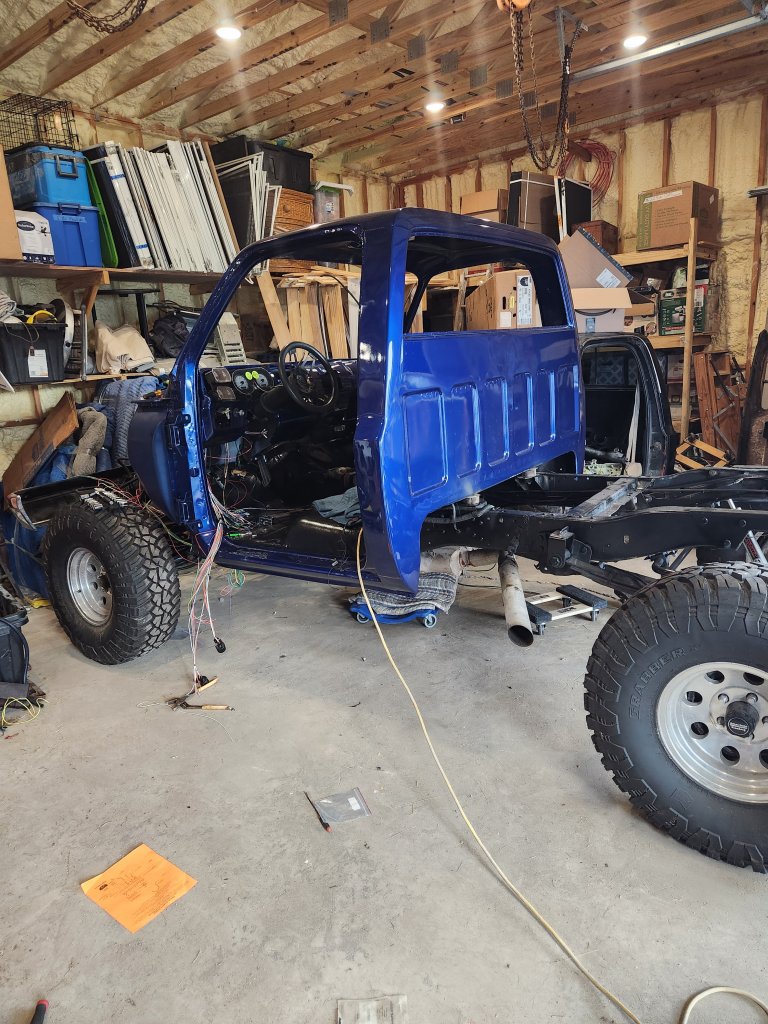

Finally got to the point where I can try to test my new wiring. I wired pu the frame with the body off. Then yesterday I put on my new cab, from a 1984 c10.
Been wiring it all day today but I try to turn it on and nofthing happens.

Currently the only thing on is the cab. So no exterior lights. Really what I'm looking for to happen is the gauges to light up. Nada.

I can't put on my front rad mount till Tuesday bc I am waiting on body mounts.

Now I have to ask. Do I need to have generally everything together for it to work? I've alrety gone checking the 2 ground wires in the back of the cab, had to attach both.


Attachments

  • 17343002862461562341363004360259.jpg
    207.9 KB · Views: 12
  • 17343003064847226299592869750105.jpg
    217.8 KB · Views: 12
  • 17343003143992212955076871152621.jpg
    236.3 KB · Views: 12

Dmack

Full Access Member
Joined
Mar 13, 2019
Posts
342
Reaction score
449
Location
Central OR
First Name
Dave
Truck Year
1983
Truck Model
K20
Engine Size
350
If it's an aftermarket harness, I would guess that if you have the main power input hooked up to the new fusebox, a good ground, and a complete circuit with fuse, that circuit should work. If it's a factory harness, check the fusible links as they feed most of the circuits.


Dmack

Full Access Member
Joined
Mar 13, 2019
Posts
342
Reaction score
449
Location
Central OR
First Name
Dave
Truck Year
1983
Truck Model
K20
Engine Size
350
Just remembering, I think the headlight circuit doesn't work like a traditional circuit. Something like it's the ground side that is switched , so if you were trying to use a different harness, it's tough to integrate the two. Could be way off, so hopefully those more knowledgeable will chime in.


randomTruckKid

Full Access Member
Joined
Feb 26, 2024
Posts
153
Reaction score
108
Location
Rockport tx
First Name
Brian
Truck Year
79
Truck Model
C10
Engine Size
350
If it's an aftermarket harness, I would guess that if you have the main power input hooked up to the new fusebox, a good ground, and a complete circuit with fuse, that circuit should work. If it's a factory harness, check the fusible links as they feed most of the circuits.
Guess I never said when I made the original post. It is all new harness. 27 circuit painless performance one.


ali_c20

Full Access Member
Joined
Sep 20, 2016
Posts
1,336
Reaction score
1,925
Location
Austria
First Name
Alexander
Truck Year
1974, 1979
Truck Model
C20, K5
Engine Size
350, 350

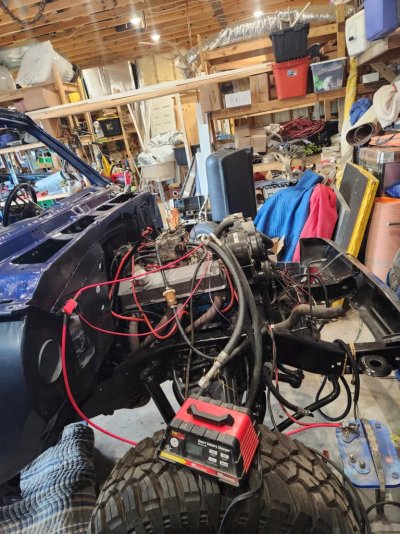

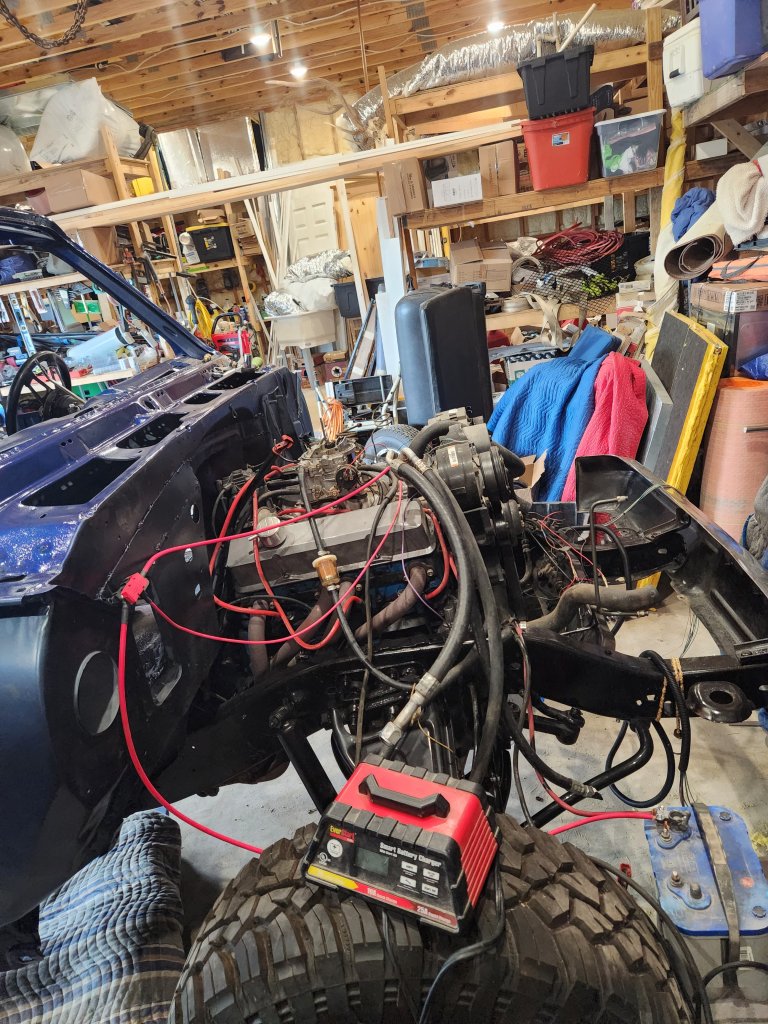

I vote for ground. Have you temporary grounded your exterior lights to the chassis/ body ? Ground connection from chassis/body to battery ? On the 3rd picture of the original post there is no ground connected to the battery.
