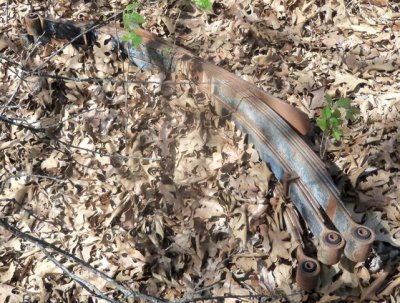

Anyone with a half ton near OK that wants some 56 inch 1/2 Ton Heavy Duty OEM Springs RPO Code G50 Lemme Know I have them. I have 2 sets. They came off of an 80 and an 81 GMC. Neither truck was sagging. They're not only a bit heavier duty, but they offer better ride quality.

If you're half ton has the 52 inch springs, you'll need to move your rear spring hangers back 4 inches. Your frame should already be punched with the holes. You'll just have to drill the rivets then use Grade 8 bolts with thread locker to bolt them back on. I'm not sure if short bed trucks have the holes punched for 56 inch springs. I think short bed might be 52 inch spring only. $25 per pair.

If you really want to add some strength, I also have a set of C20 C6P 56 inch 3/4 ton springs too. You can expect some lift in rear end on a 1/2 ton.

Distance and shipping would probably kill a deal but if your close to OK or passing through OK we can make it happen.


Attachments

  • PropTrip040817 025.jpg
    PropTrip040817 025.jpg
    106.1 KB · Views: 210
  • 81C10 001b.jpg
    81C10 001b.jpg
    94.1 KB · Views: 160
  • RPO80GMC.jpg
    100.2 KB · Views: 181

68post

very, VERY, limited access member
Joined
Feb 20, 2014
Posts
281
Reaction score
97
Location
Indianapolis
First Name
Tim
Truck Year
1984
Truck Model
84 K30 SRW Silverado, 85 C20 C6P
Engine Size
454, TBD
Are the 3/4 ton springs 9 leave 2,600 lb ?


HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,128
Reaction score
9,299
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73

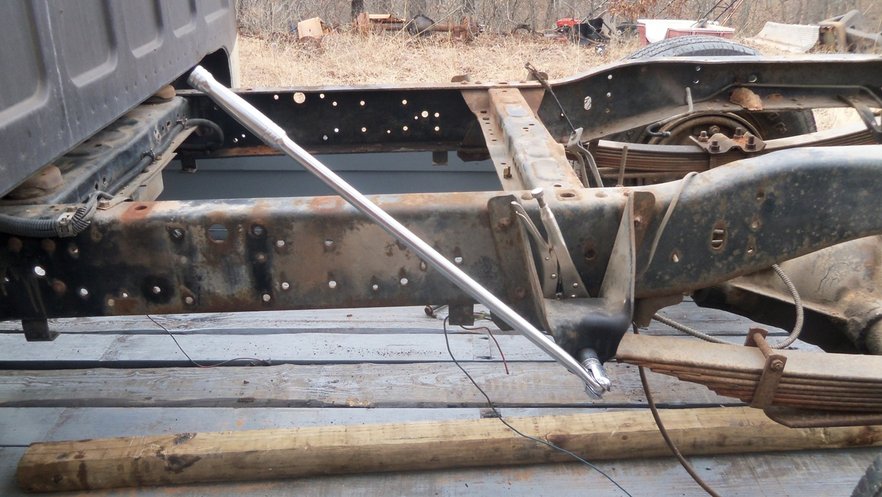

I don't know the rating. I just know the RPO code was C6P. They appear to be 7+Zero Rate. Here they are just before I removed them from the truck.


Attachments

  • zz84C20Teardown 074.jpg
    zz84C20Teardown 074.jpg
    103.2 KB · Views: 163

HotRodPC

Administrator
Staff member
Admin
Joined
Aug 29, 2010
Posts
47,128
Reaction score
9,299
Location
OKC, OK
First Name
HotRod
Truck Year
85 K20 LWB
Truck Model
Silverado
Engine Size
454 - Turbo 400 - 3.73
Met with Al again tonight. :waytogo: Cool to get together talk trucks as usual. He bought a set of the C6P 3/4 ton springs. Still have both set of these 56 inch half ton springs.
