Frame Reinforcement for 1/2 ton frame

[amateurgarage]

I have a 78 k10 frame I picked up to use as the base for my build. It was super clean (which is kinda rare up here in central NY). I've already done most of the chassis work to it, including 1-ton rear end, Dana-60 in the front and some other suspension modifications. My question is, how much weaker is the 1/2 ton frames than the 3/4 and 1 ton (if at all). And would it be worth it to add strength to the frame via crossmembers or something? I don't plan on doing major off-roading and the 496 stroker I had the local shop build is only sitting around 550 hp.

Any recommendations or advice would be appreciated. Thanks in advance.

(forgot to mention I already added a steering gearbox support)



[nvrenuf]

The frame section around the engine (basically from the front spring, rear hanger forward) is all the same but a 1 ton frame is significantly taller and ever so slightly thicker in the straight section under the cab. Some 3/4 ton frames can be similarly thicker but they are not as tall as a 1 ton.

Diy4x.com makes full frame boxing kits if you want to get that involved. You can add crossmembers but you have to be careful not to create stress points because the frame is rigid in some areas but not others.

All that said, I ran a pretty rowdy motor in my old K10 and the frame didn't seem to care, I think the 44's and playing hard did more "damage".



[Bextreme04]

I have a 78 k10 frame I picked up to use as the base for my build. It was super clean (which is kinda rare up here in central NY). I've already done most of the chassis work to it, including 1-ton rear end, Dana-60 in the front and some other suspension modifications. My question is, how much weaker is the 1/2 ton frames than the 3/4 and 1 ton (if at all). And would it be worth it to add strength to the frame via crossmembers or something? I don't plan on doing major off-roading and the 496 stroker I had the local shop build is only sitting around 550 hp.

Any recommendations or advice would be appreciated. Thanks in advance.

(forgot to mention I already added a steering gearbox support)

1/2 ton and 3/4 ton frames are identical unless the 3/4 ton has the C6P option(in which case they are a bit thicker gauge steel). 1 ton has a taller frame by about 1-1/2". You should be totally fine with no added support to the frame at 550hp and no crazy offroading.



[oldretiredafguy]

Here's all the technical data for frames. 1st is 1973-80, 2nd is 1981 on.

You must be registered for see images attach

1981-On

You must be registered for see images attach



[Shorty81]

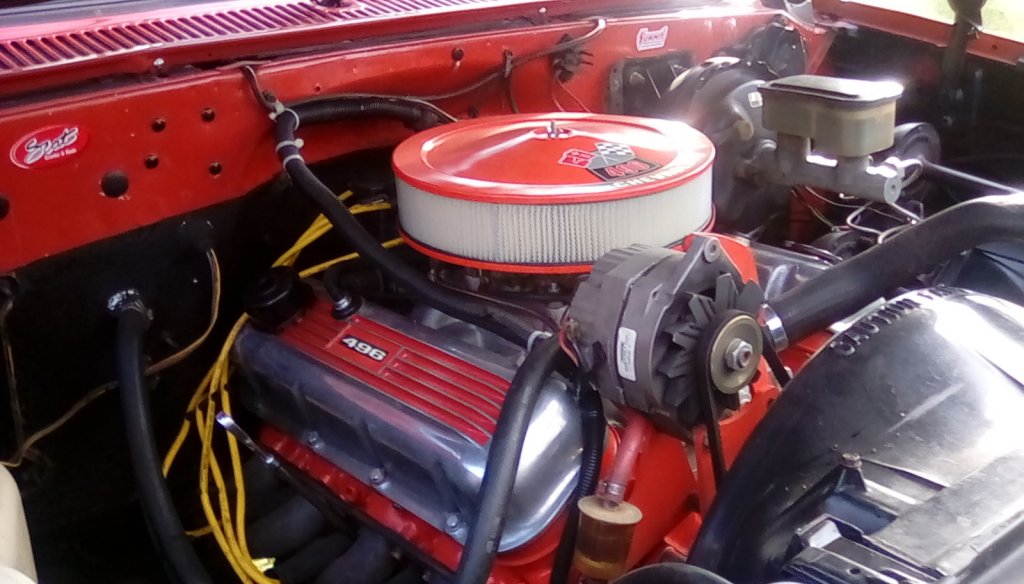

I have a 496 build in my 86 K20.



[nvrenuf]

I forgot to add to my previous post that 4xstore offers frame plating kits that are similar to boxing except the plates go on the outside of the frame. Great product for trucks that are already assembled.

1973-1991 GM Squarebody Frame Plates
