Choke Problems on SBC

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

MrMarty51

Full Access Member
Joined
Oct 25, 2012
Posts
7,781
Reaction score
9,999
Location
Eastern Montana
First Name
Martin
Truck Year
1978
Truck Model
K20
Engine Size
400
Not a Square Body. Sorry.
This is on My step sons 1970 Chevrolet C20 with a TH400 and a 350 SBC.
I rebuilt the carb and it is functioning very nicely.
The portion that fails to function is the automatic choke.
The choke mechanism is one just like this one in the picture.
You must be registered for see images attach


The problem I believe lies in the exhaust cross over through the intake manifold.
I dont believ that the choke stove is getting warm enough for the bimetal spring to fully function. Thinking that the cross over within the intake manifold might be plugged I got out the IR thermometer and the temp on the choke bimetal mechanism surface of the intake manifold was only 115 degrees.
I removed the bimetal mechanism and that mounting surface was barely over skin temperature which would be slightly over 100 degrees.
Can someone do a temperature check on the choke stove surface of their intake manifold and let Me know what it is, or, what it should be if You already know.
I dread the thought of having the step son buy an intake manifold gasket set, go through the pains of draining the coolant and popping off that intake manifold to only find that it is not plugged.
We will be starting on this sometime fairly early AM so the sooner a reply the better, and, it will be very much appreciated.
Thank You all in advance.


SirRobyn0

Full Access Member
Joined
Dec 6, 2019
Posts
6,755
Reaction score
11,402
Location
In the woods in Western Washington
First Name
Rob
Truck Year
1984
Truck Model
C20
Engine Size
305
@MrMarty51 I don't have a this style of choke on my square but I have worked on them. Could it be that the heat riser is stuck open?

As you know when the heat riser is shut copious amounts of hot exhaust is running though the port in the intake manifold and that will really speed the process of heating and opening the bimetallic choke spring.

Another option would be to convert it to electric choke.


Trucksareforwork

Full Access Member
Joined
Feb 22, 2022
Posts
245
Reaction score
475
Location
Spartanburg SC
First Name
Geoff
Truck Year
1985
Truck Model
C10
Engine Size
305
@SirRobyn0 beat me to it but I have something to add: a 1970-is heat riser valve should be fairly floppy- easy to move with your hand by just flicking the weight on the valve. I have had a few late 60’s and early 70’s engines where the heat riser has seized and just stayed in one position.

You *can* bring one back to life with cleaning spray and some lube (which all burns off posthaste). I believe there are even cleaning sprays out there specific for heat risers. My experience has been poor at the cleaning scenario. I have replaced a few.

Another possibility is the heat riser has lost its bimetallic coil. I can’t remember if they default to open or closed, but that could cause problems.

If you are just looking to get some heat to it, you could consider wiring up a piece of aluminum heat duct (used for heat stove from manifold to air filter housing, probably $8-10 in the Dorman help section) to just route heat to that choke coil from the exhaust manifold. It would be pretty country looking but would passively route heat to that coil.

I *guess* the exhaust crossover could be clogged but would start with the heat riser first.


PrairieDrifter

Full Access Member
Joined
Dec 28, 2014
Posts
3,838
Reaction score
5,623
Location
North Dakota
First Name
Mason
Truck Year
84,79,77,76,70,48
Truck Model
Suburban k10, bonanza k10, k30, k20, c10, gmc 1/2ton
Engine Size
350, 350, 350, 350, 350, 350
If the engine hasn't been open for a long while. The passage will be mostly blocked. Every chev I've ever opened up that passage is very choked up with carbon around the intake and head mating surface.

Mine gets real hot. I don't have that style choke, but my plate gets hot hot. I also don't have any heat riser valves and good flowing manifolds and exhaust, even in the cold.


MrMarty51

Full Access Member
Joined
Oct 25, 2012
Posts
7,781
Reaction score
9,999
Location
Eastern Montana
First Name
Martin
Truck Year
1978
Truck Model
K20
Engine Size
400
@MrMarty51 I don't have a this style of choke on my square but I have worked on them. Could it be that the heat riser is stuck open?

As you know when the heat riser is shut copious amounts of hot exhaust is running though the port in the intake manifold and that will really speed the process of heating and opening the bimetallic choke spring.

Another option would be to convert it to electric choke.

@SirRobyn0 beat me to it but I have something to add: a 1970-is heat riser valve should be fairly floppy- easy to move with your hand by just flicking the weight on the valve. I have had a few late 60’s and early 70’s engines where the heat riser has seized and just stayed in one position.

You *can* bring one back to life with cleaning spray and some lube (which all burns off posthaste). I believe there are even cleaning sprays out there specific for heat risers. My experience has been poor at the cleaning scenario. I have replaced a few.

Another possibility is the heat riser has lost its bimetallic coil. I can’t remember if they default to open or closed, but that could cause problems.

If you are just looking to get some heat to it, you could consider wiring up a piece of aluminum heat duct (used for heat stove from manifold to air filter housing, probably $8-10 in the Dorman help section) to just route heat to that choke coil from the exhaust manifold. It would be pretty country looking but would passively route heat to that coil.

I *guess* the exhaust crossover could be clogged but would start with the heat riser first.

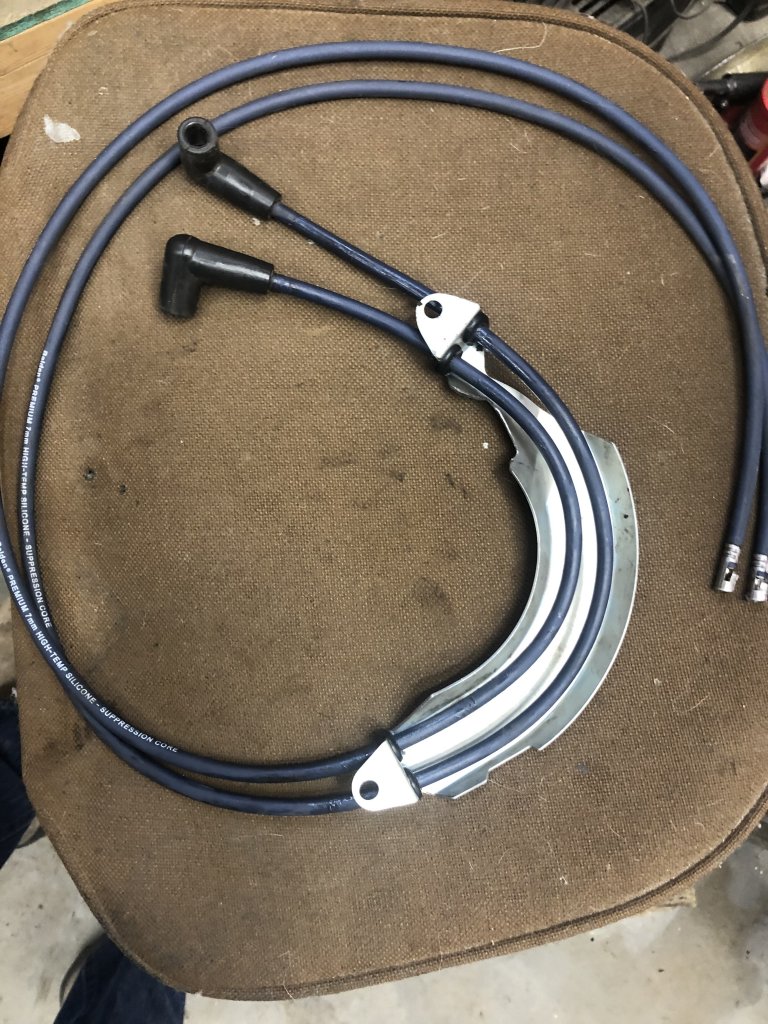

Yup. Had the left side manifold removed to install spark plug wire heat shields, for the two front cylinders.
