87 R10 TBI to EFI fuel line and tank upgrade

Disclaimer: Links on this page pointing to Amazon, eBay and other sites may include affiliate code. If you click them and make a purchase, we may earn a small commission.

steve240

Junior Member
Joined
Aug 5, 2023
Posts
5
Reaction score
7
Location
Norman, ok
First Name
steve
Truck Year
1987
Truck Model
R10
Engine Size
350

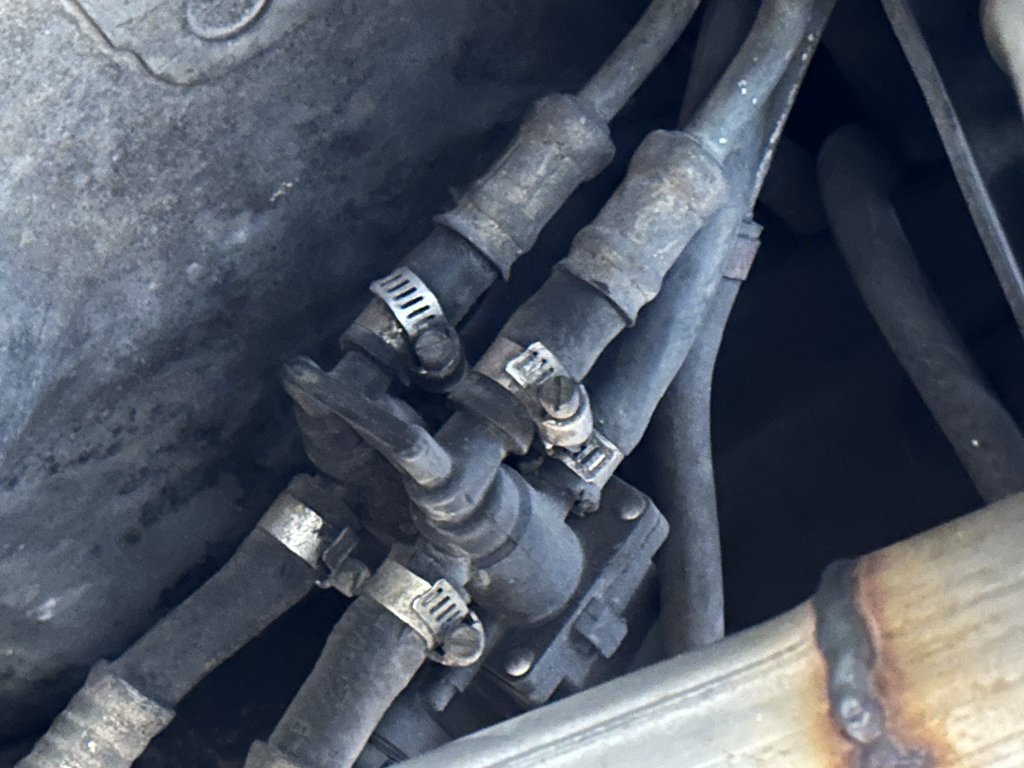

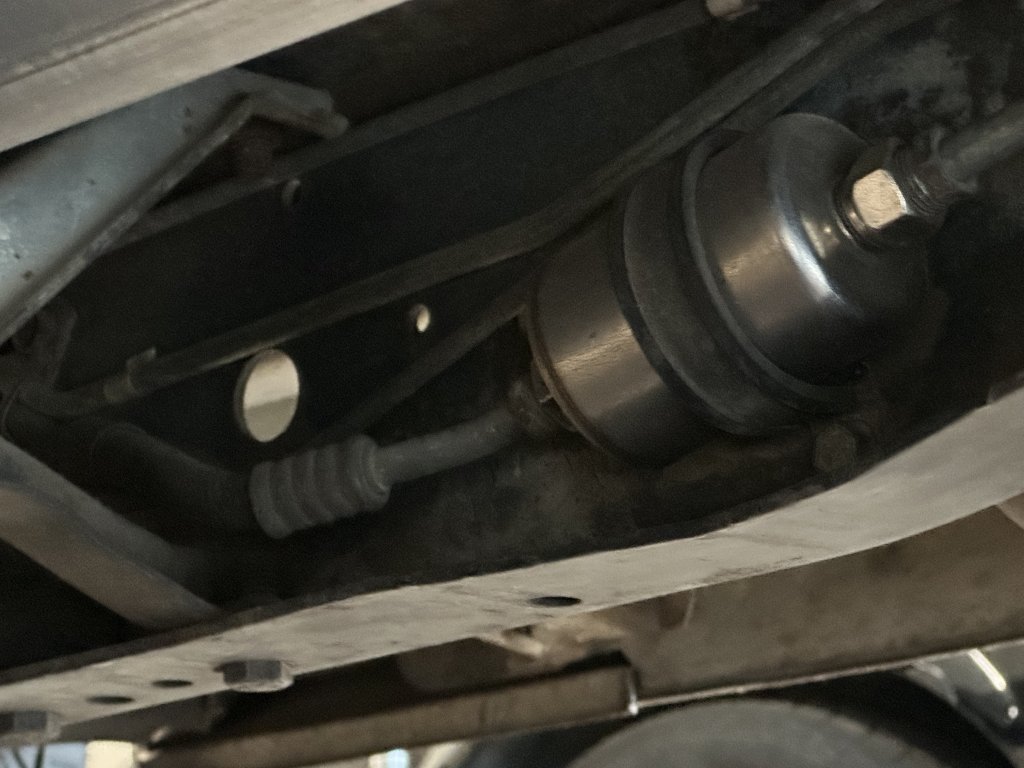

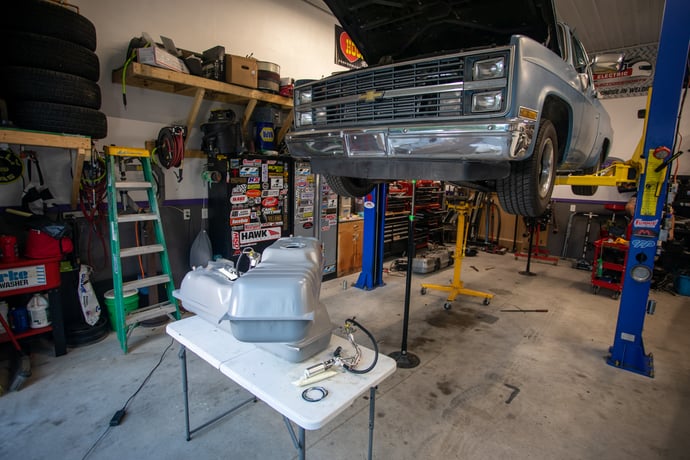

I am in the early stages of upgrading my 87 from the stock TBI 350 to a EFI ZZ6 350. I read an article on Holley’s website about upgrading to EFI tanks, in this article it shows standard high pressure fuel lines, so I ran with what I saw in the article, very helpful article if you don’t have a fuel injected square. Link below. Having a TBI motor apparently gives you different lines that are factory crimped lines. See photos below. I don’t really don’t see a solution except completely re-plumbing everything. I was hopeful I could do it like in the article, just replace the rubber at the ends of the metal lines.

I have the fuel pump(s) and sending unit(s) worked out. New Aeromotive 90PSI fuel pump through factory three line sending unit.

I need to work out the lines and I need to work out which Pollak 6-port switch tank selector valve is rated for EFI fuel pressures

Any suggestions?




Attachments

  • IMG_6486.jpeg
    108.1 KB · Views: 111
  • IMG_6487.jpeg
    122.9 KB · Views: 91

Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,391
Reaction score
8,601
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350
Your truck is EFI. With EFI senders and tanks. If you are concerned and I really hate to say this and think this but if you use tbi pumps as pusher pumps in the tank you can run a high pressure pump after the fuel switch and save yourself some plumbing.

Last edited:

chevytech87

Full Access Member
Joined
Dec 6, 2022
Posts
99
Reaction score
230
Location
Tomball, TX
First Name
Brandon
Truck Year
1987
Truck Model
GMC R1500
Engine Size
305
if you use tbi pumps as pusher pumps in the tank you can run a high pressure pump after the fuel switch and save yourself some plumbing.
This is exactly what I’m doing with my 87. Way too much work/ sketchiness trying to push high pressure through the valve.


steve240

Junior Member
Joined
Aug 5, 2023
Posts
5
Reaction score
7
Location
Norman, ok
First Name
steve
Truck Year
1987
Truck Model
R10
Engine Size
350
I have decided to overcomplicate this fuel system. I found the fuel diagram below for an LS pushing the same PSI as my new motor requires. I designed a system similar to this, bypassing the fuel tank selector valve for fuel delivery, but not for return, still using the same switch. My system has the two tanks (pumps 90 PSI) going through check valves to a Y fitting, to a filter and then to the regulator.

For the return (30 PSI or so) I’m going to run this through the valve, Pollack tank selector valves are rated for 65 PSI, looking into replacement cost, I would prefer one that isn’t 36 years old. Still researching and verifying this info.

The hoses, fittings and clamps (crimp style) are going to be Earl’s Vapor Guard rated at 225 PSI. The pumps, check valves, filter and regulator are Aeromotive.

As far as wiring goes I’m still working through that, I’m thinking independent relays for the pumps triggered by the tank selector switch, also triggering the tank selector valve for the return lines to flow the fuel to the same tank as it being pumped out of.

I modified the design below because I don‘t want to run dual regulators and filters.

All the metal lines will come out, except for the vent line, new rubber lines will be installed by the tank selector valve for the vent lines, where it splits between both tanks, supply will be rubber to the filter, possibly to the regulator, might use braided hose from filter forward. The return will be rubber(maybe braided) from the regulator to the tank selector valve, after the valve the line will be rubber.

I will have to use traditional hose clamps on the tank selector valve. Can I use braided fuel line with traditional hose clamps? The regulator return line requires a AN-06 fitting, the other end will be hosed clamped to the tank selector valve (30 PSI). I have no experience with this new soft braided line, might be a little bit of a learning curve.



You must be registered for see images attach




You must be registered for see images attach


Ricko1966

Full Access Member
Joined
Apr 11, 2017
Posts
5,391
Reaction score
8,601
Location
kansas
First Name
Rick
Truck Year
1975
Truck Model
c20
Engine Size
350

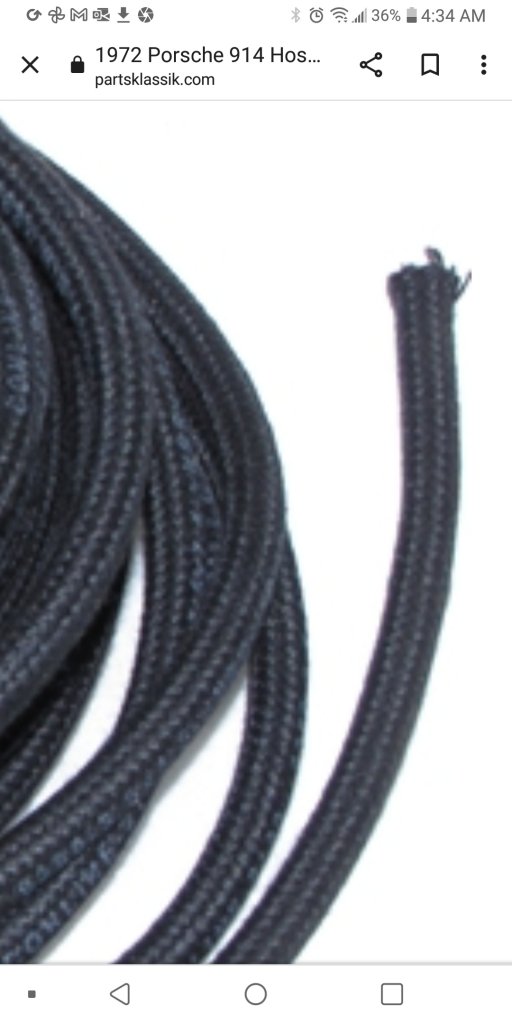

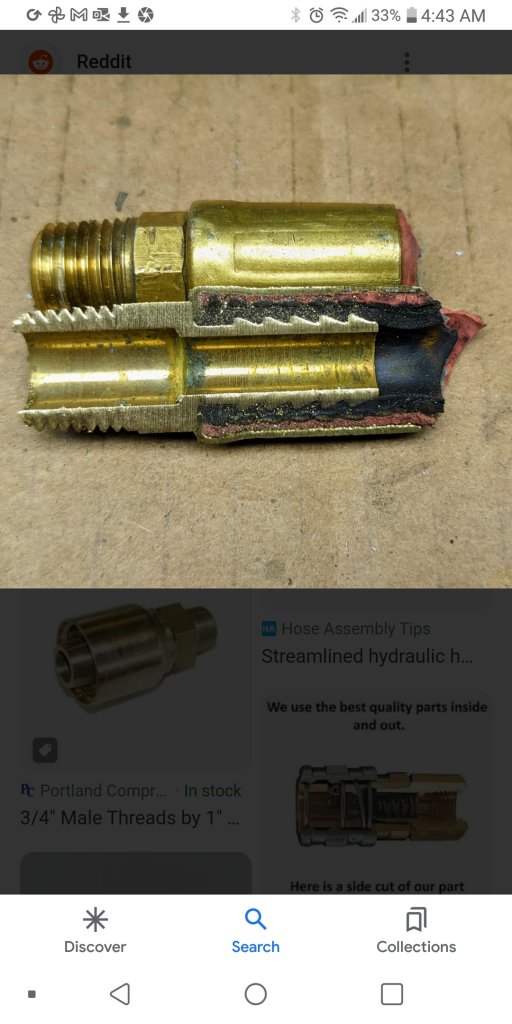

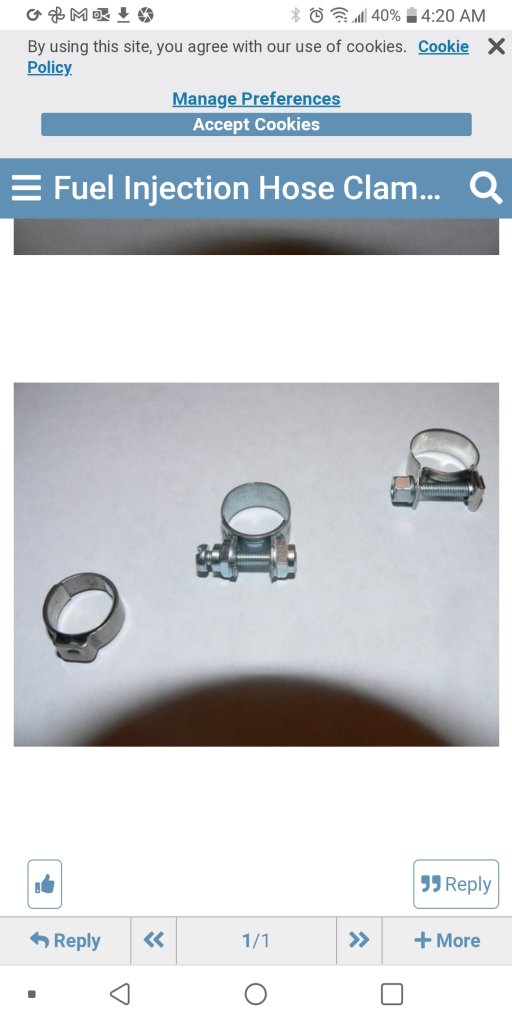

I'm going to throw a pic up here and hopefully this will help. Bosch used these clamps on braided cloth hose on barbed fittings on D Jet L jet and for at least 1 other model of fuel injection just drawing a blank on the name. The L jet ran 35 psi and people routinely bumped the fuel pressure to 45 psi. That being said as many VWs Porsches Mercedes rolling around for decades with rubber hose, barbed fittings and good clamps. If you use common sense good hose and good clamps on your return side you will not have an issue. I get a pic of the clamps a minute ago, didn't think to get a pick of the hose I'll find one and post it for reference. I've used these clamps for decades repair shop air hoses, I slit the original crimped fitting peel off the sheet metal crimp reuse the barbed and threaded section with these clamps, they'll hold 150 psi air hose forever.


Attachments

  • Screenshot_2023-09-02_042055.jpg
    53.3 KB · Views: 80
  • Screenshot_2023-09-02_043437.jpg
    53.1 KB · Views: 72
  • Screenshot_2023-09-02_044358.jpg
    83.3 KB · Views: 71
Last edited:
